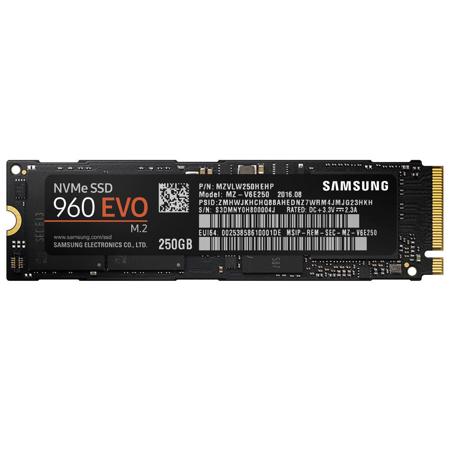

Samsung 960 EVO Internal NVMe Solid State Drive, 250 GB

SKU: SSG960E250

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-05-26T20:00:00

Rated 4 out of 5

Insane speeds

I've been using the 840 series for a while and recently upgraded to the 960, the speed is amazing almost incredible.

danielocdh

2017-04-17T20:00:00

Rated 4 out of 5

Issue on Lenovo T470p

I have this for almost nearly 3 months now. Blazing and unprecedented performance on the previous laptop that I'm using which is Lenovo T460s. Afterwards new laptop come (Lenovo T470p) which is 3 days ago and I decided to use the same NVme (Samsung evo 960 m.2 1tb) after clean installation of OS Windows 10 Pro and downloaded the recent driver from microsoft and lenovo website as well as samsung recent firwmware. After completely switch-off the device then I turn-on again I was surprise the same day that it stuck on Lenovo logo (Please see screenshot attached) and it didn't load the OS at all. When I forcefully rebooted it goes to the normal state then OS loaded properly. Issue is keeps on happening everynow and then, a bit alarming I believe.

BCdP

2017-03-24T20:00:00

Rated 5 out of 5

amazing ssd

it is an amazing ssd and i recommend it to any one need his pc to speed up :)

samgm

2017-01-21T19:00:00

Rated 5 out of 5

Speed in a little package

First and foremost, this drive is fast with near-advertised speeds (see story below for more details). The response time and consistency has been exceptional, and my cold boot time on Windows 10 after enabling several MSI boot optimizations is now 2 seconds flat. Still amazes me several weeks later. Truthfully, I went through many hoops to get this SSD working with my motherboard (MSI Z97-GD65). However, this was due to my motherboard not having an m.2 port (it has mSata which is significantly different) and was my fault for not verifying this before my purchase. MSI was very gracious however, as about a year or so prior they released an update to their BIOS which added support for m.2 drives - perfect! I ordered an m.2 -> PCI-E x4 adapter, updated the BIOS using a spare USB drive, and installed my new hardware. Initially, the drive was successfully detected by Windows 10 (I had to right-click on the start menu and then initialize the drive via Disk Management). My goal however was to migrate Windows over to this SSD to get off my 1TB HDD RAID setup. I went to a free faithful tool of mine - Clonezilla. After installing the latest stable to a USB stick and booting off the stick, I eventually reached an unrecognized error during the process. Disappointed but not discouraged, I read on a forum post that the dev builds of Clonezilla were on a newer version of Linux with better drive technology support. So I gave it a shot and they were right! Migration took about an hour for 500GBs of written data, and I've been a happy camper since. The m.2 adapter causes a slight loss in performance yielding 85% of advertised read (~2700MB/s), yet still 100% of advertised write (~1800MB/s). I bought this drive for the performance, endurance and future-proofing. I expect this SSD to remain my main drive after building a new desktop a few years down the road. The performance is insane, taking my rapid loads from a dedicated SATA3 SSD for games to an entirely new level. For anyone still reading, my recommendations are to ensure your computer is compatible with m.2 (at PCI-E x4 speeds), that you are okay with your main GPU lane dropping to PCI-E x8 (MAYBE dropped 1-2 fps for me with my GTX 1080 and dual monitors), and that there's plenty of ventilation around the SSD to ensure that top speeds are consistent during huge data transfers.

LarkSS

2017-01-17T19:00:00

Rated 2 out of 5

Check compatibility with motherboard first

I got a shiny new Supermicro 5018D-FN4T to put this drive into, as a virtualization server. If it worked, it was going to run like a greased pig at the state fair. Unfortunately, the Supermicro BIOS didn't recognize it so I couldn't install onto it. And Centos 7.3 didn't recognize it either, despite being a Linux 3.10.0 kernel (and NVMe drivers being baked into Linux since 3.3). Oddly, when I booted Fedora 25 (Linux 4.8) it saw the drive, which I was able to partition, format, copy files to, etc. So I ended up having to exchange it for a slightly slower, slightly more expensive T*a product instead.

PowerLinuxUser

Samsung 960 EVO Specifications

  • Application

    Client PCs

  • Capacity

    250 GB (1GB=1 Billionbyte by IDEMA)
    *Actual usable capacity may be less (due to formatting, partitioning, operating system, applicatio ns or otherwise)

  • Form Factor

    M.2

  • Interface

    PCIe 3.0 x4, NVMe 1.1

  • NAND Type

    Samsung V-NAND

  • Controller

    Samsung Polaris controller

  • Cache Memory

    Samsung 512MB Low Power DDR3 SDRAM

  • TRIM Support

    TRIM Supported

  • S.M.A.R.T Support

    S.M.A.R.T Supported

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • Data Security

    AES 256-bit for User Data EncryptionTCG Opal Family Spec and eDrive (IEEE1667) to be supported by FW update

  • WWN Support

    N/A

  • Sequential Read

    Up to 3,200 MB/sec
    *Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 1,500 MB/sec
    *Performance may vary based on system hardware & configuration

  • Random Read (4 KB, QD 32, Thread 4)

    Up to 330,000 IOPS (Thread 4)
    *Performance may vary based on system hardware & configuration

  • Random Write (4 KB, QD 32, Thread 4)

    Up to 300,000 IOPS (Thread 4)
    *Performance may vary based on system hardware & configuration

  • Random Read (4 KB, QD 1, Thread 1)

    Up to 14,000 IOPS (Thread 1)
    *Performance may vary based on system hardware & configuration

  • Random Write (4 KB, QD 1, Thread 1)

    Up to 50,000 IOPS (Thread 1)
    *Performance may vary based on system hardware & configuration

  • Power Consumption

    *Average: Typ. 5.3 Watts, Idle : 1.2W(ASPT off)
    *Actual power consu mption may vary depending on system hardware & configuration

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • Operating Temperature

    0 Degree C to 70 Degree C (Measured by SMART Temperature. Proper airflow recommended)

  • Humidity

    5% to 95%, non-condensing

  • Vibration

    20-2000Hz, 20G

  • Shock

    1500G , duration 0.5m sec, 3 axis

  • Management SW

    Magician Software for SSD management

  • Installation Kit

    Not Available

  • Dimension

    Max. 3.2 x 0.9 x 0.09" (80.15 x 22.15 x 2.38 mm)

  • Weight

    Max. 8g

  • Warranty

    3 Year Limited Warranty or 100TBW Limited Warranty

  • UPC Code

    887276185309

About Samsung 960 EVO

FEATURED REVIEWS

Speed in a little package

By LarkSS

First and foremost, this drive is fast with near-advertised speeds (see story below for more details). The response time and consistency has been exceptional, and my cold boot time on Windows 10 after enabling several MSI boot optimizations is now 2 seconds flat. Still amazes me several weeks later. Truthfully, I went through many hoops to get this SSD working with my motherboard (MSI Z97-GD65). However, this was due to my motherboard not having an m.2 port (it has mSata which is significant...

View full Review

amazing ssd

By samgm

it is an amazing ssd and i recommend it to any one need his pc to speed up :)

What's in the box:

  • 3 Year Limited Warranty or 100TBW Limited Warranty
