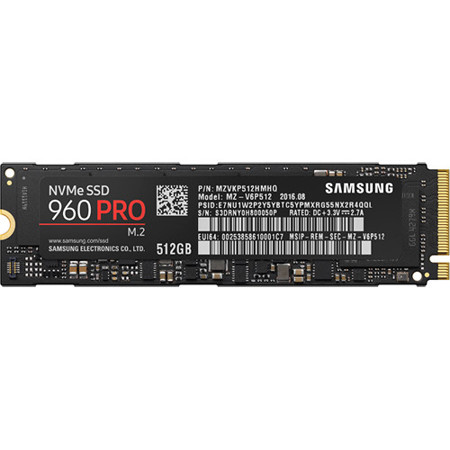

Samsung 960 PRO Internal NVMe Solid State Drive, 512 GB

Client PCs

512 GB (1GB=1 Billionbyte by IDEMA)
*Actual usable capacity may be less (due to formatting, partitioning, operating system, applicatio ns or otherwise)

M.2

PCIe 3.0 x4, NVMe 1.1

Samsung V-NAND

Samsung Polaris controller

Samsung 512MB Low Power DDR3 SDRAM

TRIM Supported

S.M.A.R.T Supported

Auto Garbage Collection Algorithm

AES 256-bit for User Data EncryptionTCG Opal Family Spec and eDrive (IEEE1667) to be supported by FW update

N/A

5mW (L1.2)

Up to 3,500 MB/sec
*Performance may vary based on system hardware & configuration

Up to 2,100 MB/sec
*Performance may vary based on system hardware & configuration

Up to 330,000 IOPS (Thread 4)
*Performance may vary based on system hardware & configuration

Up to 330,000 IOPS (Thread 4)
*Performance may vary based on system hardware & configuration

Up to 14,000 IOPS (Thread 1)
*Performance may vary based on system hardware & configuration

Up to 50,000 IOPS (Thread 1)
*Performance may vary based on system hardware & configuration

*Average: Typ. 5.1 Watts, Idle : 1.2W(ASPT off)
*Actual power consu mption may vary depending on system hardware & configuration

1.5 Million Hours Reliability (MTBF)

0 Degree C to 70 Degree C (Measured by SMART Temperature. Proper airflow recommended)

5% to 95%, non-condensing

Magician Software for SSD management

Not Available

Max. 3.2 x 0.9 x 0.09" (80.15 x 22.15 x 2.38 mm)

Max. 8g

5 Year Limited Warranty or 400TBW Limited Warranty

887276185316
