Samsung Wisenet 4x4 1080P 4-Channel 4-Camera Full HD Video Security System, 1TB HDD

SKU: SSGB73043BFC

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samsung SDH-B73043BF/CUS Specifications

DVR: Display

DVR: Display

Jump to...
  • Video

    Inputs: 4CH BNC
    System: AHD, CVBS (NTSC)
    Resolution: 1,920x1,080 (Full HD) / 1,280x720 (HD) / 960 x 480 (960H)

  • Live

    Frame rate: 120fps@ 1,920x1080 / 120fps@1,280x720
    Resolution: 1080p / 720p / 960H
    Multi Screen display: Single / Quad / Sequence

DVR: Performance

Jump to...
  • Operating System

    Embedded: Linux
    Installation wizard: Support

  • Recording

    Compression: H.264
    Record Rate: Up to 60fps@1,920x1,080
    Up to 120fps@1,280x720/Up to 120fps@960x480
    Mode: Manual, Schedule (Continuous/Event), Event(Pre/Post)
    Event: Video Loss, Motion (Sensitivity Level 1-8)
    Overwrite modes: Off / On (Auto/1/3/7/14/30/90days)
    Pre-alarm: Min. 1sec
    Post-alarm: Up to 5min (30sec, 1/2/5min)

  • Search & Playback

    Search mode: Date/time, Event, Motion
    Playback function: Fast forward / backward (2x, 4x, 8x, 16x)
    Synchronous: Slow forward (1/2x, 1/4x, 1/8x,1/16x)

  • Network (IPv4)

    Transmission speed: Max.60fps@1080p
    Bandwidth: Up to 32Mbps
    Live stream: Max.60fps@1080p
    Max. Remote Users: 20 (Max. bandwidth 32M)
    Protocol support: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP(Server, Client), PPPoE, SMTP, DNS, DDNS, uPnP
    Monitoring: Webviewer, Mobile Viewer(P2P Easy Connection support), CMS for PC/Mac

  • Remote Monitoring

    Web / App viewer: Supported OS
    Protocol support: TCP/IP, UDP/IP, UDP, P2P
    Transmission speed: Max.30fps @CIF, 960H, 720p; Max.15fps@1080p (per Channel)
    Max. remote users: 20 (Max. bandwidth 32M)

  • Storage

    Internal 1 TB HDD: 1 SATA HDD - 1 Bay (support up to 6TB per bay)
    USB (Back-up): 2 USB Ports (Front/Rear)
    File Format (Back-up): H.264, AVI, MP4

  • Security

    Password Protection: 1 Admin, 6 Users

DVR: Interface

Jump to...
  • Monitors

    VGA: 1 VGA (1024x768, 1280x1024, 1280x720, 1440x900, 1920x1080)
    HDMI: 1 HDMI (1024x768, 1280x1024, 1280x720, 1440x900, 1920x1080)
    Simulatneous Output: VGA and HDMI

  • Audio

    Inputs/Output: 4CH RCA in / 1CH RCA out
    Compression: G.711, 8KHz

  • Alarm

    Remote notification: Notification via e-mail

  • Connections

    Ethernet: 1 RJ45 10/100 Base-T
    USB: 2 USB Ports (Front/Rear)
    Serial: RS-485
    Application Support: Mouse, Remote control
    Protocol support (RS-485): Pelco-D/Pelco-P
    Protocol support (Coaxial): UTC

DVR: ETC

Jump to...
  • AHD

    AHD signal distance: 500M(5C-2V), 300M(3C-2V)

DVR: General

Jump to...
  • Color/Material

    Color: Black
    Material: Metal

  • Electrical

    Input Voltage/Current: 12V/2A DC ADAPTOR
    Power consumption: 8W

  • Environmental

    Operating Temperature/Humidity: 32 Degree F - 104 Degree F (0 Degree C-+40 Degree C)/20% - 85%RH

  • OSD

    Lauguage: English, French, Spanish, Portuguse, German, Italian, Russian, Turkish, Portuguese

  • Mechanical

    Dimension (W x D x H): 11.8 x 8.65 x 2.07" (300 x 219.7 x 52.5mm)
    Weight: With hard disks: 3.15 lb (1.43kg)

Camera: Video

Jump to...
  • Imaging Device

    2M CMOS (1/2.7")

  • Effective Pixels (H x V)

    1920x1080

  • Scanning System

    Progressive, 30fps

  • Synchronization

    Internal

  • Horizontal Resolution

    1080p

  • Min. Illumination

    0 Lux (IR LED On)

  • Camera Output

    1CH BNC Max. Transmission Length: 180' (3EA attached 60' camera cable combined)

Camera: Lens

Jump to...
  • Focal Length

    3.6mm

  • Max. Aperture Ratio

    F2.1

  • Angular Field of View

    D:105 Degree /H:88 Degree /V:46 Degree

Camera: Operational

Jump to...
  • Shutter Mode

    Auto (Rolling Shutter)

  • Gain Control

    Auto

  • White Balance

    Auto (1,800-10,500 Degree K)

  • Wide Dynamic Range

    D-WDR

  • Contrast Enhancement

    Auto

  • Digital Noise Reduction

    DNR

  • OSD

    N/A

  • Flickerless

    Auto

  • Day & Night

    TRUE D/N, Auto

  • IR Distance

    Total darkness: 82'
    Ambient lighting: 130'

Camera: Environmental

Jump to...
  • Operating Temperature

    -22 Degree F - +122 Degree F (-30 Degree C - +50 Degree C)
    Humidity: Less than 90% RH
    Startup: -10 Degree C - +50 Degree C

  • Ingress Protection

    IP66

Camera: Electrical

Jump to...
  • Input Voltage

    DC 12V +/-10%

  • Power Consumption

    4W (IR LED ON)

Camera: Mechanical

Jump to...
  • Color / Material

    White / Metal

  • Dimensions (Diameter x D)

    2.68 x 5.87" (68 x 149mm)

  • Weight

    0.70 lb (0.32Kg)

  • UPC Code

    044701000099

About Samsung SDH-B73043BF/CUS

All-in-One Full HD Video Security System

This 4-channel, 4-camera DVR Security System includes 1080p full HD cameras that allow you to keep an eye out on what's happening indoors and outdoors. With the free WiseView application, you can keep a close watch on your home or business anytime from anywhere in the world on your smart device. The 1080p full HD cameras have you covered day and night, providing night vision up to 130' in ambient lighting and 82' inplete darkness. These weather-resistant cameras also provide clear coverage during storms. With a DVR featuring 1TB of hard drive space plus intuitive menu and controls, you can easily search and review archived video.

Key features

Full HD live video
Provide 1080p Full HD real-time recording for smooth playback and clear imaging. The high quality resolution enables better forensic inspection of a person's face or license plate.

True Day & Night
Keep colors accurate during the daytime and illuminate the night with the True Day & Night with IR Cut Filter. Now you will always have clear footage up to 130ft (40m) in ambient lighting and 82ft (25m) in complete darkness.

QR Code, One shot installation with WiseView app
Simply download the free WiseView app and scan the QR code located on the DVR and connect all cameras without network setup where port forwarding is involved.

Remote viewing
Monitor from anywhere, anytime using your smartphone, tablet, PC or Mac.

Motion zone and Event detection
Select the desired areas to detect motion and avoid false alarms that may trigger the system. Get alerts when there is motion, tampering or video loss detected.

Privacy zone
Exclude areas that are not significant to your security or safety. Select up to 4 areas you want to mask from camera's field of view.

Weather resistant camera
Ideal for both indoor and outdoor environment, the cameras are IP66 rated which is guaranteed to endure frigid winters and sultry summers. Withstanding extreme temperatures of -22 Degree F to 122 Degree F (-30 Degree C to 50 Degree C).

Surveillance grand HDD with high compression technology
Come with a 1TB hard drive allowing you to store hours of video. The DVR also utilizes high compression technology which allows you to record even longer.

Flexible recording and playback options
Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times. Searching and reviewing your records is made easy with the option of searching by time or by event.

Samsung SDH-B73043BF/CUS Features

  • 4 Camera / 4CH 1080p Full HD outdoor cameras and recording
  • IP66 Rated weather-resistant
  • 105 Degree Wide angle view
  • Night Vision up to 130', True Day and Night with IR cut filter
  • 1TB surveillance class hard drive
  • Free Wiseview remote viewing app for Android and iOS
  • Backwards compatible with standard analog cameras

Key Features

  • 4 Camera / 4CH 1080p Full HD outdoor cameras and recording
  • IP66 Rated weather-resistant
  • 105 Degree Wide angle view
  • Night Vision up to 130 ft., True Day and Night with IR cut filter
  • 1TB surveillance class hard drive
  • Free Wiseview remote viewing app for Android and iOS

What's in the box:

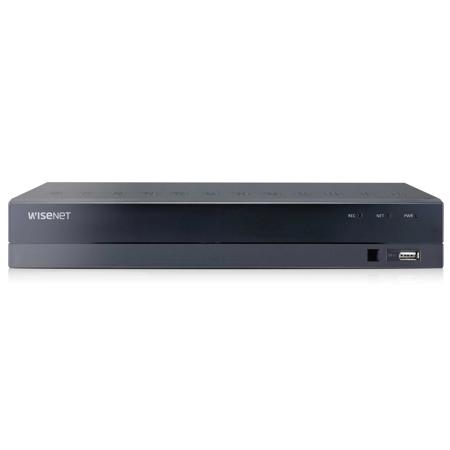

  • DVR (SDR-B73303) with 1TB HDD
  • 4x Bullet Camera (SDC-9443BC)
  • Quick Start Guide
  • Remote Control/Battery
  • 4x BNC Camera Cable (60')
  • HDMI Cable
  • Mouse
  • 1 to 4 Power Splitter
  • Network Cable
  • 12V 2A Power Adaptor for DVR
  • 12V 2A Power Adaptor for Cameras
  • Screws/Anchors & Hex Key
  • CD (Remote viewing S/W & User Manual)
  • Samsung 1 Year Limited Warranty
