Samsung SDH-C75083 Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    - 6' HDMI Cable
    - 59" Network Cable (RJ-45 Plugs on Each End)
    - AC Adapter with Attached 48" DC Output Cord (DC Output: 12V 2000mA)
    - AC Adapter with Attached 48" DC Output Cord (DC Output: 12V 3000mA)
    - DC Power Adapter (1 In - 8 Out) with 12" Cable

16-Channel DVR

Jump to...
  • Supports

    Eight included HD cameras and up to eight more cameras (not included)

  • Hard drive

    2TB surveillance-class hard drive for video storage

  • Function

    Separate administrator and work group password encryption

  • Mouse

    Yes

  • Front Panel Connections

    USB port (Type A) for connecting supplied optical mouse

  • Rear Panel Connections

    Video In: 16x BNC
    Audio In: 4x RCA
    Audio Out: 1x RCA
    VGA Output: 1x Female D-Sub
    HDMI: Full size
    LAN Port: 1x RJ-45
    USB Port (Type A): High Speed USB 2.0 port for connecting mass storage hard disk backup
    Serial Port: RS-485
    Power Socket: DC 12V for supplied AC power adapter

  • Image Sensor

    2M 1/2.9" Color CMOS image sensor with a Full HD resolution of 1920 (H) x 1080 (V) effective pixels

  • Scanning System

    Progressive, 30 fps (NTSC)

  • Maximum Transmission Length

    Up to 180' (54.86m)

  • IR Range

    82' (24.99m)

  • Day and Night

    Automatic True D&N

  • Minimum Illumination

    0 Lux with IR LED on

  • Lens

    4mm F2.0 lens with 105deg. diagonal field of view

  • Weatherproof Rating

    IP66 rated for dust, wind and moisture

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), less than 90% relative humidity

General

Jump to...
  • Dimensions (WxHxD)

    16-Channel DVR: 11.125 x 2.06 x 8.68" (28.26 x 5.23 x 22.05cm)
    Camera: 2.43 x 2.43 x 5.68" (6.17 x 6.17 x 14.43cm) (Including the base)

  • Weight

    16-Channel DVR: 3.86 lbs (1.75kg)
    Camera: 6.7 oz (189.94g) (each)

  • UPC Code

    044701000112

About Samsung SDH-C75083

The Samsung Wisenet SDH-C75083 comes with 1080p Full HD cameras that have you covered day and night, providing night vision up to 82 ft. The DVR features a 2 TB hard drive with intuitive menu and controls, making it easy for you to search and review archived video. By downloading the free WiseView App, you can keep a close watch on your home or business anytime from anywhere in the world through your device.

1080p Full HD Video
The Samsung Full HD Video Security system provides 1080p Full HD real-time recording for smooth playback and clear imaging, allowing you to make out details missed on lower resolution cameras. The high quality resolution delivers sharper video enabling better forensic inspection of a person's face or license plate.

Event/Tampering Alerts
The Samsung DVR Security System sends you instant notifications when your much-awaited package arrive or what time your children get home from after-school activities. The system also protects you from intruders or thieves, providing tampering alerts.

Wide Angle Coverage
Get the entire picture: an enhanced 105 deg. viewing angle provides a wider field of view to maximize coverage compared to the traditional 70 deg. to 75 deg. viewing angle cameras.

True Day & Night
The 1080p Full HD cameras utilize an advanced IR Cut Filter for accurate, vibrant colors and Night Vision mode to capture clear, illuminated footage up to 82 feet in darkness.

1080p Full HD Outdoor Bullet Camera (SDC-9443BC)
Keep your house or business secure with the Samsung SDH-C75083 Full HD Video Security System. The 16 Channel 1080p HD DVR allows you to monitor up to 8 locations inside and outside of your residential or commercial property. With the free Samsung WiseView application you can keep a close watch on your home or business anytime from anywhere in the world on your smartphone/tablet or computer/laptop. The 1080p Full HD cameras have you covered day and night, providing night vision up to 130ft in ambient lighting and 82ft in complete darkness. The weather resistant cameras also provide clear coverage during storms.

IP66 Weather-Resistant Cameras
Bad weather is never an issue for the SDH-C75083. The cameras are rated IP66 weather-resistant and can withstand conditions such as rain, sleet and snow.

2TB Storage Capacity and Easy to Review
2TB hard drive allowing you to store hours of video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times.

Privacy Masking
You can mark up private areas in the camera's field of view you don't want to record video for. This advantage lets you tailor your monitoring to fit your specific needs and exclude areas that are not significant to your security or safety.

Anytime/Anywhere Viewing with Free WiseView App
Watch your house or business from anywhere in the world on your mobile device/tablet or computer/laptop with the WiseView app. Whether you stepped out for a store run or are about to paraglide over the Andes Mountains, you can check in on your home or business to make sure it's safe.

Samsung SDH-C75083 Features

  • Camera / 16CH 1080p Full HD outdoor cameras and recording
  • IP66 Rated weather-resistant
  • 105 deg. Wide angle view
  • Night Vision up to 130'., True Day and Night with IR cut filter
  • 2TB surveillance class hard drive
  • Free iPOlis remote viewing app for Android and iOS

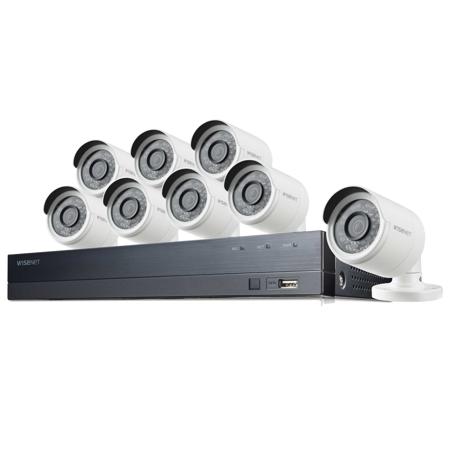

What's in the box:

  • Samsung SDR-75303 16-Channel Digital Video Recorder with 2TB Hard Drive Installed
  • 8x SDC-79443BF Digital Color Bullet Cameras with attached 17" Power/Signal Cable
  • 8x 60' Power/Signal Cable (DC Barrel and BNC Connectors on Each End)
  • 24x 1" Self-tapping Screws
  • 24x Plastic Wall Anchors
  • 8x 3mm Allen Wrenches
  • Optical Mouse with 46" USB Cable (Type A USB)
  • Wireless Remote Control
  • 2x AAA Batteries
  • Quick Start Guide
  • Samsung 3 Year Warranty
  • (See Specs for More Included Items)
