Samsung MZ-MTE500BW Specifications

  • Form Factor

    mSATA

  • Usage Application

    Client PCs (Ultra-thin PCs compatible

  • Capacity

    500GB

  • Interface

    SATA 6Gb/s (compatible with SATA 3Gb/s and SATA 1.5Gb/s)

  • Controller

    Samsung 3-core MEX Controller

  • NAND Flash Memory

    1x nm Samsung Toggle DDR 2.0 NAND Flash Memory (400Mbps)

  • DRAM Cache Memory

    512MB LPDDR2

  • Performance

    Sequential Read: Maximum 540MB/s
    Sequential Write: Maximum 520MB/s
    4KB Random Read (QD1): Maximum 10,000 IOPS
    4KB Random Write (QD1): Maximum 40,000 IOPS
    4KB Random Read (QD32): Maximum 97,000 IOPS
    4KB Random Write (QD32): Maximum 88,000

  • TRIM Support

    Yes (Requires OS Support)

  • Garbage Collection

    Yes

  • S.M.A.R.T

    Yes

  • Security

    AES 256-bit Encryption
    TCG Opal 2.0 / IEEE1667 compliant

  • Reliability

    MTBF: 1.5 million hours

  • Power Consumption

    Average: 0.103W (Typical), Idle: 0.033W (Typical, DIPM ON)
    Device Sleep: 2mW

  • Temperature

    Operating: 0deg.C to 70deg.C / Non-Operating: -40deg.C to 85deg.C

  • Humidity

    5% to 95%, non-condensing

  • Vibration

    Non-Operating: 20-2000Hz, 20G

  • Shock

    Non-Operating: 1500G, duration 0.5m sec, 3 axis

  • Dimensions (L x W x H)

    (29.85+/-0.15) x (50.80+/-0.15) x Max 3.85 (mm)

  • UPC Code

    887276962467

About Samsung MZ-MTE500BW

Evolution of the compact Solid State Drive has arrived with the Samsung 840 EVO Series 500GB mSATA Internal Solid State Drive. Combining the best Solid State Drive technologies from Samsung 840 EVO, this thin and exceptionally light Solid State Drive is specifically designed for ultra-thin laptop PCs. Plus, 840 EVO mSATA delivers faster-than-ever, superior performance with Samsung's 2nd generation 3-bit MLC technology and superb reliability with self-monitoring features. In addition to these cutting-edge features, your PC will stay connected longer, consume less energy and power back up from the sleep mode instantly. So, don't trade in your current laptop PC, simply upgrade it with 840 EVO mSATA. With 840 EVO mSATA, installed on your current laptop PC, your mobile computing will be taken to a whole new level of performance.

Samsung MZ-MTE500BW Features

  • Integrated solution combining top-quality components: Samsung uses NAND flash memory chips from its own fabrication lines for Solid State Drive. Only the chips with the highest quality, top performance and greatest longevity potential are selected for SSDs, the most demanding of memory applications
  • Boost productivity with all-new, faster performance: Ultra-slim 840 EVO mSATA feature fast sequential and random read and write speeds to complete tasks quickly
  • RAPID mode: Enjoy rapid performance by switching to a higher gear: Like changing gears in a car, with Magician software you have the option of RAPID mode, enhancing performance by processing data on a system level through the use of free PC memory (DRAM) as a cache
  • TurboWrite: Always be in high acceleration: Samsung's TurboWrite technology, 840 EVO can deliver much faster sequential write speeds. Utilizing an innovative write acceleration algorithm and high performance write buffer, you can expect accelerated speeds and higher satisfaction from your PC
  • Reduce power consumption for energy savings and longer usage: Samsung 840 EVO mSATA Device Sleep (DEVSLP) lets you stay connected longer and power up faster. Your PC no longer needs to go into standby mode to conserve battery life, nor you have to wait for it to power back on
  • Keep your PC performance safe from heat: With 840 EVO, your PC stays cool, even when you sometimes overwork it. Samsung's Dynamic Thermal Guard Algorithm in 840 EVO' firmware monitors the temperature of the Solid State Drive, preventing it at optimal operating temperature
  • Protect important data with secure encryption technology: Using your laptop PC outside of the office exposes your information to new vulnerabilities. You can trust 840 EVO's Self-Encrypting Drive (SED) security technology to safeguard your data

What's in the box:

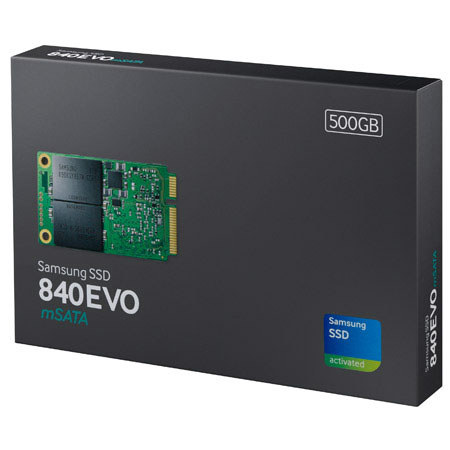

  • Samsung 840 EVO Series 500GB mSATA Internal Solid State Drive
  • Solid State Drive Activation Sticker
  • Samsung 3 Year Limited Warranty
