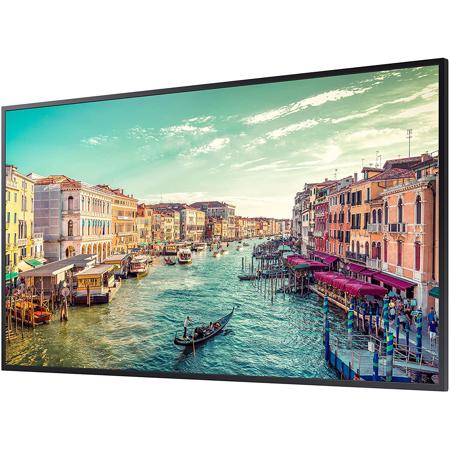

Samsung QM49R 49" 16:9 Class 4K Ultra HD Wi-Fi HDR Commercial Smart Edge LED Display, Cortex-A72 1.7GHz, 2.5GB DDR4, 8GB Storage, Tizen 4.0, Built-In Speakers

SKU: SSGQM49R

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samsung QM49R Specifications

Display

Display

Jump to...
  • Diagonal Size

    49" (124.5cm)

  • Type

    Edge LED BLU

  • Resolution

    3840 x 2160 (4K UHD)

  • Pixel Pitch

    0.093 x 0.279mm

  • Active Display Size (H x V)

    11073.78 x 604mm

  • Brightness(Typ.)

    500 nit

  • Contrast Ratio

    4000:1

  • Viewing Angle(H/V)

    178/178

  • Response Time(G-to-G)

    8ms(Typ.)

  • Display Colors

    16.7M(True Display) 1.07B(Ditherd 10bit)

  • Color Gamut

    92% (DCI-P3, CIE 1976)

  • Operation Hour

    24/7

  • Haze

    0.25

  • Dynamic C/R

    MEGA

  • H-Scanning Frequency

    30 - 81kHZ

  • V-Scanning Frequency

    48 - 75HZ

  • Maximum Pixel Frequency

    594MHz

Connectivity

Jump to...
  • Input

    RGB: DVI-D, Display Port 1.2 (1)
    Video: HDMI 2.0 (2)
    HDCP: HDCP2.2
    Audio: Stereo mini Jack, DVI, HDMI
    USB: USB 2.0 x 2

  • Output

    RGB: HDMI 2.0 (Loop-out)
    Audio: Stereo mini Jack

  • External Control

    RS232C(in/out) thru stereo jack, RJ45

  • External Sensor

    IR

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Max[W/h]

    138

  • Typical[W/h]

    103

  • Rating[W/h]

    125

  • BTU(Max)

    470.6

  • Sleep mode

    0.5

Features

Jump to...
  • Speaker Type

    Built in Speaker(10W + 10W)

  • Key Features

    UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

  • Special Features

    H/W: Temperature Sensor
    Pivot Display
    Clock Battery(168hrs Clock Keeping)
    Built in Speaker(10W 2ch)
    Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA)
    IP5x
    Wi-Fi/BT S/W: Auto Source Switching & Recovery
    LFD Home UI
    Button Lock
    Hot key option
    Plug&Play (Initial Setting)

Internal Player

Jump to...
  • Processor

    Coretex A72 1.7GHz Quad-Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

  • Clock Speed

    1.7GHz

  • Main Memory Interface

    2.5GB LPDDR4 1.5GHz 64bit

  • Graphics

    Graphic resolution : 1920x1080
    Output resolution : 3840x2160 (Scale up from graphic processing result.)

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
    Audio Decoder : AC3 (DD), MPEG

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 4.0 (VDLinux)

Certification

Jump to...
  • Safety

    60950-1

  • EMC

    Class B

  • Security

    802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Operation Conditions

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Humidity

    10-80% (non-condensing)

Mechanical

Jump to...
  • VESA Mount

    200 x 200mm

Physical

Jump to...
  • Bezel Width

    (U/L/R): 0.36" (9.2mm)
    (B): 0.44" (11.2mm)

  • Dimension

    43.3 x 24.9 x 1.8" (1099.2 x 631.5 x 46.3mm)

About Samsung QM49R

Display any content in ultra-high definition with incredibly rich color on slim, efficient signage.

Features

Time to upscale your display
Samsung's new QMR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

Incredible 4K Picture Quality
Samsung's new QMR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung's Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Dynamic Crystal Display
The QMR series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.

Perfect view with Non-Glare Display
The QMR series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

Slim and Symmetrical Design
The QMR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

Clean Cable Management
With QMR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.

Powerful, All-In-One Solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

WiFi and Bluetooth Built-In
Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it's to make networking simpler or enabling interactive beacon technology in-store, QMR series displays help businesses move into the future of retail.

Industry Standard Certified
The QMR series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.

Samsung QM49R Features

  • Engage customers with lifelike images through ultra high-definition resolution
  • Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
  • Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades

Key Features

  • Engage customers with lifelike images through ultra high-definition resolution
  • Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades

What's in the box:

  • QM49R 49" 16:9 Class 4K Ultra HD Wi-Fi HDR Commercial Smart LED Display
  • Remote Control with Batteries
  • Power Cable
  • Samsung 3 Year Limited Warranty
