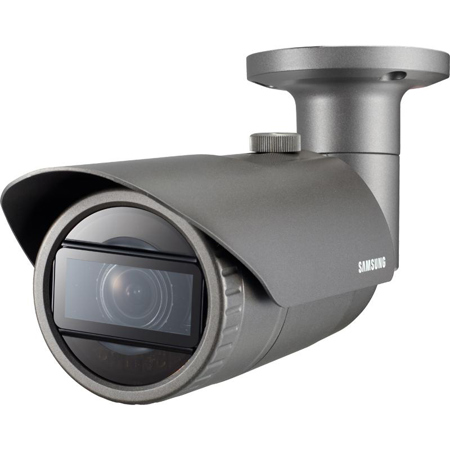

Samsung QNO-7080R Day & Night 4MP Outdoor Network IR Bullet Camera with 2.8-12mm Lens, 20fps, IP66, IK10, H.265, H.264, MJPEG, Wisestream, PoE

SKU: SSGQNO7080R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samsung QNO-7080R Specifications

  • Imaging Device

    1/3" 4M CMOS

  • Total Pixels

    2720(H) x 1536(V)

  • Effective Pixels

    2688(H) x 1520(V)

  • Scanning System

    Progressive

  • Min. Illumination

    Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on)

  • Focal Length (Zoom Ratio)

    2.8-12mm (4.3x) motorized varifocal

  • Max. Aperture Ratio

    F1.4

  • Angular Field of View

    H : 109.7 deg.-26.0 deg. / V : 60.8 deg.-15.2 deg. / D : 131.3 deg.-30.1 deg.

  • Focus Control

    Simple focus (Motorized V/F) / Manual, Remote control via network

  • Lens Type

    DC auto iris

  • Mount Type

    Board type

  • IR Viewable Length

    98.43' (30.00m)

  • Camera Title

    Off / On (Displayed up to 20 characters per line)
    W/W : English / Numeric / Special characters
    China : English / Numeric / Special / Chinese characters
    Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution

  • Day & Night

    True Day & Night

  • Backlight Compensation

    Off / BLC / WDR

  • Wide Dynamic Range

    120dB

  • Digital Noise Reduction

    SSNR (Off / On)

  • Motion Detection

    Off / On (4ea polygonal zones)

  • Privacy Masking

    Off / On (6ea rectangular zones)

  • Gain Control

    Off / Low / Middle / High

  • White Balance

    ATW / AWC / Manual / Indoor / Outdoor

  • LDC (Lens Distortion Correction)

    Off / On (5 levels with min / max)

  • Electronic Shutter Speed

    Minimum / Maximum / Anti flicker

  • Flip / Mirror

    Flip / Mirror / Hallway view

  • Intelligent Video Analytics

    Motion detection with metadata, Tampering, Defocus detection

  • Alarm I/O

    Input 1 / Output 1

  • Alarm Triggers

    Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection

  • Alarm Events

    File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output

  • Pixel Counter

    Support (Plug-in viewer only)

  • Ethernet

    RJ-45 (10/100BASE-T)

  • Video Compression Format

    H.265, H.264, MJPEG

  • Resolution

    2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240

  • Max. Framerate

    H.265/H.264 : Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG : Max. 15fps

  • Smart Codec

    WiseStream

  • Video Quality Adjustment

    H.265/H.264 : Target bitrate level control, MJPEG : Quality level control

  • Bitrate Control Method

    H.265/H.264 : CBR or VBR, MJPEG : VBR

  • Streaming Capability

    Multiple streaming (Up to 3 profiles)

  • Audio I/O

    Line in

  • Audio Compression Format

    G.711 u-law / G.726 selectable
    G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps

  • Audio Communication

    Uni-directional audio

  • IP

    IPv4, IPv6

  • Protocol

    TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour

  • Security

    HTTPS(SSL) login authentication, Digest login authentication
    IP address filtering, User access log, 802.1x authentication

  • Streaming Method

    Unicast / Multicast

  • Max. User Access

    6 users at unicast mode

  • Storage

    micro SD/SDHC/SDXC (Max. 128GB), NAS
    Motion images recorded in the SD memory card can be downloaded
    Manual recording at local PC

  • Application Programming Interface

    ONVIF Profile S/G, SUNAPI (HTTP API)

  • Webpage Language

    English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek

  • Web Viewer

    Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
    Plug-in free Webviewer - Supported Browser: Google Chrome 47, MS Edge 20
    Plug-in Webviewer - Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only

  • Central Management Software

    SmartViewer

  • Operating Temperature

    -30 to 55 deg. C (-22 to 131 deg. F)
    Start up should be done at above: -20 deg. C (-4 deg. F)

  • Operating Humidity

    Less than 90% RH

  • Storage Temperature

    -30 to 60 deg. C (-22 to 140 deg. F)

  • Storage Humidity

    Less than 90% RH

  • Ingress Protection

    IP66

  • Vandal Resistance

    IK10

  • Input Voltage / Current

    PoE (IEEE802.3af, Class3) / 12V DC

  • Power Consumption

    Max. 8W (PoE), Max. 7W (12V DC)

  • Material

    Metal

  • Dimensions (WxH)

    (Dia.) 2.76 x 9.69" (7.01 x 24.61cm) (Without sunshield)

  • Weight

    1.65 lbs (0.75kg)

  • UPC Code

    8801089124814

About Samsung QNO-7080R

Samsung's brand reputation is built on putting out great products, from televisions to computers to video equipment and more, and this security camera is no exception to Samsung's high standard of quality. With a host of features and capabilities, the camera will help keep a watchful eye on what's important to you.

Built around a 4MP CMOS sensor, the camera can capture footage in full-HD and has great low-light performance thanks to an IR cut filter, giving it an effective night vision range of 30 meters.

The camera's housing is also noteworthy, earning itself ratings of IP66 for weatherproofing and IK10 for impact and tampering resistance. The IP66 designation means it's suitable for outdoor installation, and this specific camera can handle temperatures from -22F to +131F as well as humidity levels up to 90%, meaning not only can it operate day-and-night, it can also operate rain-or-shine and sun-or-snow. All told, this camera is a surveillance tool that you can rely on for monitoring your home, office, remote property, and just about any other area of concern.

• Max. 4megapixel resolution
• 2.8-12mm (4.3x) motorized varifocal lens
• Max. 20fps at 4M, Max.30fps at 2M all resolutions
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Motion detection, Tampering, Defocus detection
• micro SD/SDHC/SDXC memory slot (Max. 128GB), PoE / 12V DC
• IR viewable length 30m, IP66, IK10
• Hallway view support
• LDC support (Lens Distortion Correction)

Key Features

  • IP66 Weatherproof rating
  • IK10 impact/tampering resistance
  • Full-HD capture
  • Suitable for outdoor installation
  • Can handle temperatures from -22F to +131F
  • Multi-streaming supported

What's in the box:

  • Samsung QNO-7080R Day & Night 4MP Network IR Bullet Camera with 2.8-12mm Lens
  • Software CD
  • Template
  • L Wrench
  • 3x Tapping Screws
  • RJ45 Waterproof Accessory
  • Sunshield
  • Sunshield Screw
  • 3x Card Type Moisture Absorbent
  • Manual
  • Samsung 3 Year Warranty
