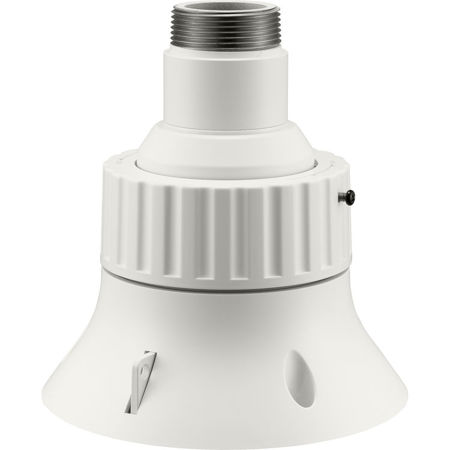

Samsung RJ45 - Fiber Built-In SFP Install Base for PNP-9200RH/XNP-6370RH Cameras
See all Samsung items

Samsung RJ45 to Fiber Built-In SFP Install Base for PNP-9200RH/XNP-6370RH PTZ Cameras

SKU: SSGSBP302HF

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Samsung RJ45 - Fiber Built-In SFP Install Base for PNP-9200RH/XNP-6370RH Cameras Specifications

  • Compatibility

    PNP-9200RH/XNP-6370RH PTZ Cameras

  • Alarm I/O

    Input 4ea / Output 2ea

  • Remote Control Interface

    RS-485/422

  • Audio

    Input / Output, 3.5mm type

  • CVBS

    BNC type, For installation

  • Power Line

    24V AC, 2-wire

  • Support SFP Voltage

    3.3V typical

  • Support SFP Current

    Max. 300mA

  • Support SFP Cage

    Standard mini-SFP cage (For 6.5mm pitch SFP)

  • Support SFP Port Type

    LC type

  • Required SFP Speed

    1250Mbps (For 1000Mbps ethernet), 155Mbps (For 100Mbps ethernet)

  • Required SFP's BER (Bit Error Rate)

    Max. 1012

  • Transmission Method (Optical)

    Mode depends on SFP module

  • Optical Mode (Long/Short Wave)

    Mode depends on SFP module

  • Cable Insertion Loss (dB)

    Mode depends on SFP module

  • RJ-45: Ethernet Speed

    100Mbps

  • RJ-45: Ethernet Physical Layer

    100 Base-T

  • RJ-45: Ethernet Standard

    IEEE 802.3u support

  • Speed Transition (100-1000Mpbs)

    External Dip switch

  • Fiber: Default Speed

    1000Mbps

  • Fiber: Ethernet Speed

    100Mbps, 1000Mbps

  • Fiber: Ethernet Physical Layer

    100 Base-FX, 1000 Base-X

  • Fiber: Ethernet Standard

    IEEE 802.3u, IEEE 802.3z support

  • Operating Temperature/Humidity

    -50 deg.C - 55 deg.C (+14 deg.F - 131 deg.F) / Less than 90% RH

  • Ingress Protection

    IP66

  • Vandal Resistance

    IK10

  • Power Consumption

    Max. 65W, 3.1A (Heater on)

  • Input Voltage / Current

    24V AC

  • Material

    Aluminum

  • Dimensions (WxH)

    163.9 x 157.9mm (6.45 x 6.22")
    63.9 x 187.9mm (2.52 x 7.40") (With NPT-Coupling)

  • Weight

    1.1kg (2.43 lbs)
    1.4kg (3.09 lbs) (With NPT-Coupling)

  • UPC Code

    8801089095817

About Samsung RJ45 - Fiber Built-In SFP Install Base for PNP-9200RH/XNP-6370RH Cameras

The Samsung RJ45 to fiber built-in SFP install base is specially designed for PNP-9200RH and XNP-6370RH PTZ cameras.

Samsung RJ45 - Fiber Built-In SFP Install Base for PNP-9200RH/XNP-6370RH Cameras Features

  • Aluminum
  • LC SFP port type
  • 100Mbps Ethernet speed (Default speed : 1000Mbps)
  • IEEE 802.3u, IEEE 802.3z support
  • Audio input/output, 3.5mm type
