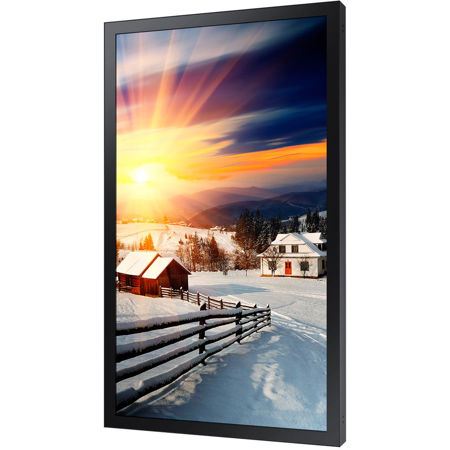

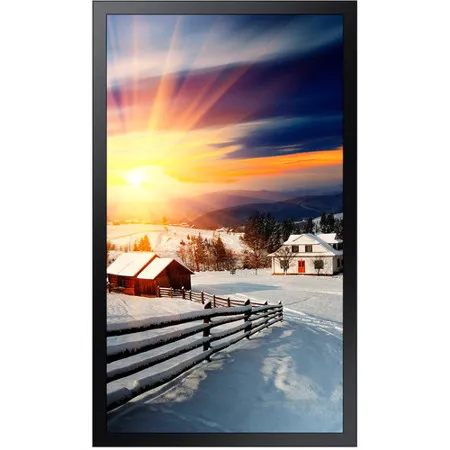

Samsung OH75F 75" Full HD Outdoor Signage Display with Embedded Power Box, Cortex-A12 1.3GHz, 2.5GB DDR3-933, 8GB Storage, Tizen 2.4

SKU: SSOH75F MFR: OH75F
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals on this 75" Samsung display with full HD resolution.
  • With 2500 nit brightness, this outdoor signage display ensures clear visibility.
  • This commercial monitor's wide viewing angle (178/178) offers consistent image quality.
  • Operate this reliable Samsung display 24/7, perfect for continuous operation needs.
  • Benefit from the embedded power box, streamlining setup for your digital signage.
  • Enjoy a durable design with tempered glass, protecting your investment in outdoor displays.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samsung OH75F Specifications

Panel
  • Diagonal Size

    75" (2.95.7cm)

  • Resolution

    1920 x 1080 (Full HD)

  • Pixel Pitch (H x V)

    0.860 x 0.860mm

  • Active Display Area (H x V)

    1650.24 x 928.26mm

  • Brightness (typical)

    2500 nit

  • Contrast Ratio

    5000:1

  • Viewing Angle

    178:178 (H/V)

  • Display Colors

    8bit - 16.7M

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    0%

Display

Jump to...
  • Dynamic C/R

    100,000:1

  • Frequency

    H-Scanning: 30 - 81kHz
    V-Scanning: 60 - 75Hz

  • Maximum Pixel Frequency

    148.5MHz

Connectivity

Jump to...
  • Input

    Video: HDMI 1.4 (2), HDBaseT(LAN Common)
    HDCP: HDCP 2.2
    USB: USB 2.0 x 1

  • Output

    Audio: Stereo mini Jack
    External Control: RS232C(in/out), RJ45 (In/Out), HDBaseT

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max (W/h): 1400
    Typical (W/h): W/W(EU) 520 US/KOR/Etc.
    BTU (Max): 4774
    Sleep mode: Less than 0.5W
    Off mode: Less than 0.5W

Operation

Jump to...
  • Operating Temperature

    -22 Degree F - 122 Degree F (-30.0 Degree C - 50.0 Degree C)

  • Humidity

    10 % - 100 % (Non-condensing)

Internal Player

Jump to...
  • Processor

    Cortex-A12 1.3GHz Quad Core CPU

  • On-Chip Cache Memory

    L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB

  • Clock Speed

    1.3GHz CPU Quad

  • Main Memory Interface

    2.5GB 3 channel 96bit DDR3-933 (1866MHz)

  • Graphics

    2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES

  • Storage (FDM)

    8GB (3.75GB Occupied by O/S, 4.25GB Available, )

  • Multimedia

    Video Decoder - MPEG-1/2/4, H.263,H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 2.4 (VDLinux)

Certification

Jump to...
  • Safety

    cUL60950-1

  • EMC

    FCC (USA) Part 15, Subpart B Class A

Mechanical

Jump to...
  • Protection Glass

    Yes (5T Tempered Glass)

  • Bezel Width

    24.9 / 24.9 / 24.9 / 24.9mm

  • Dimensions

    69.8 x 41.4 x 4.72" (1774.8 x 1053.4 x 120mm)

  • Weight

    313 lbs (142kg)

  • UPC Code

    8806088808581

About Samsung OH75F

Make your outdoor advertising more impactful with the OH75F 75" Full HD Outdoor Signage Display. This rugged and durable signage solution is powered by a Cortex-A12 1.3GHz processor, 2.5GB DDR3-933 RAM, and 8GB of storage, running on the Tizen 2.4 operating system. It's designed for easy installation and operation, featuring an all-in-one solution with an embedded power box that condenses operational components, achieving an ultra-slim depth of 85mm.

The OH75F is built to withstand the elements, boasting an IK10-certified Magic Glass that offers advanced display protection against external impacts. This high-quality tempered glass, measuring 5mm (0.19 in.), is designed to prevent LCD breakage, ensuring the longevity of your display.

The OH75F is not just tough but also smart. It features a self-cooling system with a heat exchanger and advanced thermal control functionality, eliminating the need for filters or regular maintenance. This innovative system revolutionizes outdoor signage design, allowing for a sleeker, more stylish display package.

With a high brightness of 2,500 nit and a 5,000:1 high contrast ratio, this signage display captivates audiences with superior messaging clarity. It features innovative Magic Glass and an Auto Brightness Sensor to optimize brightness, ensuring your content is always visible, even under direct sunlight. The circular polarizing technology eliminates display blindness caused by polarized sunglasses, making your content accessible to virtually any viewer.

The OH75F is designed to operate reliably in virtually any environment. It offers IP56 level protection against dust and moisture, and can operate in temperatures ranging from -30 Degree C (-22 Degree F) to 50 Degree C (122 Degree F), thanks to its self-cooling system. This makes it ideal for 24/7 operations without the need for additional air conditioning systems.

The built-in MagicInfo Player S4 offers robust options for content creation and management. This advanced content management solution allows you to play media files, set and edit media playback schedules, and much more. It's powerful enough to enable large organizations to manage multiple digital signage through an integrated single server and also remotely monitor and manage it from a centralized location.

The OH75F is also VESA-compliant for simplified mounting, offering greater flexibility to mount displays in preferred locations without having to purchase specialized wall mounts. This outdoor signage display is a testament to Samsung's commitment to producing innovative, high-quality electronic devices.

Samsung OH75F Features

  • All-in-one solution complete with an embedded power box, along with an ultra-slim depth of 85mm
  • An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection
  • A filterless self-cooling system enabling easy maintenance and reduced TCO
  • Excellent visibility under direct sunlight through 2,500-nit high brightness and anti-reflection glass
  • An advanced content management solution via SSSP 4.0 powered by TIZEN

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant visuals on this 75" Samsung display with full HD resolution.
  • With 2500 nit brightness, this outdoor signage display ensures clear visibility.
  • This commercial monitor's wide viewing angle (178/178) offers consistent image quality.
  • Operate this reliable Samsung display 24/7, perfect for continuous operation needs.
  • Benefit from the embedded power box, streamlining setup for your digital signage.
  • Enjoy a durable design with tempered glass, protecting your investment in outdoor displays.

What's in the box:

  • OH75F 75 " Full HD Outdoor Signage Display with Embedded Power Box
  • Power Cord
  • Remote Controller with Batteries
  • Quick Setup Guide
  • Regulatory Guide
  • Samsung 3 Year Limited Warranty
