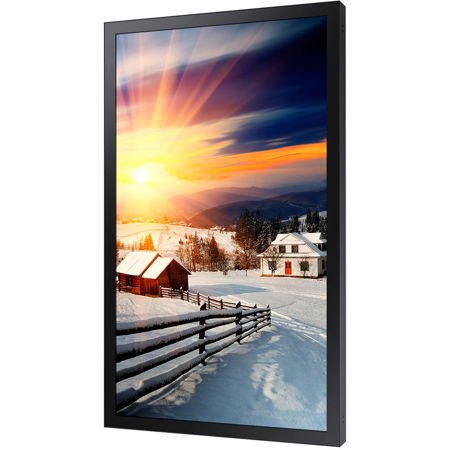

Samsung OH85F 85" 4K UHD Outdoor Signage Display with Embedded Power Box, 3840x2160

SKU: SSOH85F MFR: OH85F
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals with this Samsung 85" 4K UHD outdoor signage display.
  • This commercial monitor's 2500 nit brightness ensures clear visibility in any outdoor setting.
  • With a wide viewing angle, the Samsung OH85F display delivers consistent image quality.
  • The durable tempered glass protects this outdoor display from impacts and weather.
  • Operate this reliable commercial display 24/7 in temperatures from -22°F to 122°F.
  • Connect easily with HDMI, DP, and HDBaseT inputs on this versatile signage solution.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samsung OH85F Specifications

Panel
  • Diagonal Size

    85" (215.9cm)

  • Resolution

    3840 x 2160 (4K UHD)

  • Pixel Pitch (H x V)

    0.488 x 0.488mm

  • Active Display Area (H x V)

    1872 x 1053mm

  • Brightness (typical)

    2500 nit

  • Contrast Ratio

    3000:1

  • Viewing Angle

    178:178 (H/V)

  • Display Colors

    10bit - 1.07B

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    0%

Display

Jump to...
  • Dynamic C/R

    100,000:1

  • Frequency

    H-Scanning: 30-135kHz (DP), 30-90kHz (HDMI)
    V-Scanning Frequency: 30-75Hz (DP), 24-75Hz (HDMI)

  • Maximum Pixel Frequency

    533.25MHz (DP), 297MHz (HDMI)

Connectivity

Jump to...
  • Input

    RGB: DP 1.2 (2) @ UHD 60Hz
    Video: HDMI 1.4 (2) @ UHD 30Hz, HDBaseT
    HDCP: HDCP 1.4
    USB: USB 2.0 (1) (only for FW update)

  • Output

    Video: HDMI 1.4 (2) @UHD 30Hz, HDBaseT
    Audio: Stereo mini Jack
    External Control: RS232C(in/out), RJ45 (In/Out), HDBaseT

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max (W/h): 1600
    Typical (W/h): W/W(EU) 680 US/KOR/Etc.
    BTU (Max): 5456
    Sleep mode: Less than 0.5W
    Off mode: Less than 0.5W

Operation

Jump to...
  • Operating Temperature

    -22 Degree F - 122 Degree F (-30.0 Degree C - 50.0 Degree C)

  • Humidity

    10 % - 100 % (Non-condensing)

Certification

Jump to...
  • Safety

    cUL60950-1

  • EMC

    FCC (USA) Part 15, Subpart B Class A

Mechanical

Jump to...
  • Protection Glass

    Yes (5T Tempered Glass)

  • Bezel Width

    24.9 / 24.9 / 24.9 / 24.9mm

  • Dimensions

    78.89 x 46.6 x 4.72" (2004 x 1185 x 120mm)

  • Weight

    359.3 lb (163kg)

  • UPC Code

    8806088808598

About Samsung OH85F

The OH85F 85" 4K UHD Outdoor Signage Display with Embedded Power Box, boasting a resolution of 3840x2160, offers a stunning visual experience for your outdoor advertising needs. This Samsung product, renowned for its high-quality electronics, delivers breathtakingly clear and detailed images thanks to its high-resolution 4K UHD display.

This outdoor signage solution is not just incredible to look at, but it's also designed for easy installation and maintenance. The all-in-one solution includes a thin, streamlined design with an embedded power box, anti-reflection technology, and vandalism protection. The power box condenses operational components, achieving an ultra-slim depth of 85mm, while the embedded network hub simplifies connection and installation.

The OH85F is built to withstand external impacts with its robust IK10-certified Magic Glass, a 5mm tempered glass that provides advanced display protection. This high level of durability ensures that the LCD panel remains unharmed even if the protective glass is broken.

Equipped with a self-cooling system, this outdoor signage display eliminates the need for filters or maintenance. This advanced cooling system, coupled with thermal control functionality, enhances overall efficiency and cost management. The filter-less system revolutionizes outdoor signage design, abandoning the need for bulky enclosures to accommodate a full display package.

The OH85F captivates audiences with its high visibility, featuring innovative Magic Glass, TUV Certified Image Quality, and an Auto Brightness Sensor. These features optimize brightness, ensuring your message is delivered with clarity to virtually any viewer. The display also eliminates display blindness caused by polarized sunglasses, offering superior messaging clarity with a high brightness of 2,500 nit and a 5,000:1 high contrast ratio.

The Magic Glass of the OHF Series reduces reflection, making the displayed images richer and clearer under direct sunlight. This, combined with high brightness and high contrast ratio, ensures greater content visibility.

Designed to operate reliably in virtually any environment, the OH85F offers high-level ingress defense with IP56 level protection. It can withstand temperatures ranging from -30 Degree C (-22 Degree F) to 50 Degree C (122 Degree F) through a self-cooling system, allowing for 24/7 operations without the need for additional air conditioning systems.

The Samsung's MagicInfo Player S4, included in the OH85F, empowers users with a new graphic engine that boosts the overall display performance and ensures seamless transition of content. It also operates as an advanced content management solution, allowing you to play media files, set and edit media playback schedules, and much more.

Finally, the OH85F is VESA-compliant for simplified mounting, offering greater flexibility to mount displays in preferred locations without having to purchase specialized wall mounts. This outdoor signage display is a spectacular solution for businesses looking to enhance their outdoor advertising with high-quality, durable, and efficient technology.

Samsung OH85F Features

  • All-in-one solution complete with an embedded power box, along with an ultra-slim depth of 85mm
  • An optimum level of endurance equivalent to IK10 and extra durability with IP56 Ingress Protection
  • A filterless self-cooling system enabling easy maintenance and reduced TCO
  • Excellent visibility under direct sunlight through 2,500-nit high brightness and anti-reflection glass

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant visuals with this Samsung 85" 4K UHD outdoor signage display.
  • This commercial monitor's 2500 nit brightness ensures clear visibility in any outdoor setting.
  • With a wide viewing angle, the Samsung OH85F display delivers consistent image quality.
  • The durable tempered glass protects this outdoor display from impacts and weather.
  • Operate this reliable commercial display 24/7 in temperatures from -22°F to 122°F.
  • Connect easily with HDMI, DP, and HDBaseT inputs on this versatile signage solution.

What's in the box:

  • OH85F 85 " 4K UHD Outdoor Signage Display with Embedded Power Box
  • Power Cord
  • Remote Controller with Batteries
  • Quick Setup Guide
  • Regulatory Guide
  • Samsung 3 Year Limited Warranty
