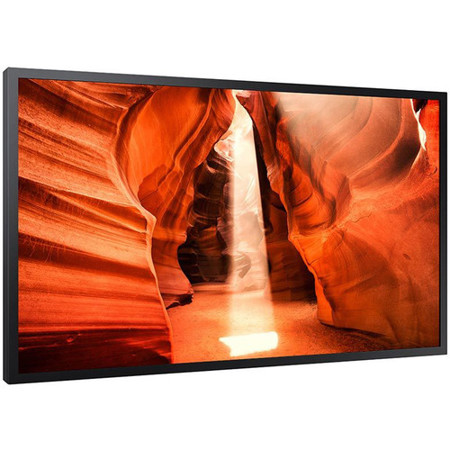

Samsung OM46N 46" Full HD Class High Brightness Semi-Outdoor Smart Signage Display, Cortex-A72 1.7GHz, LPDDR4, 8GB Storage, Tizen 4.0, 1920x1080

SKU: SSOM46N

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samsung OM46N Specifications

Panel
  • Diagonal Size

    46" (116.8cm)

  • Type

    E-LED BLU

  • Resolution

    1920 x 1080 (Full HD)

  • Pixel Pitch (H x V)

    0.530 x 0.530mm

  • Active Display Area (H x V)

    1018.08 x 572.67mm

  • Brightness (typical)

    4000 nit

  • Contrast Ratio

    5000:1

  • Viewing Angle

    178:178 (H/V)

  • Response Time(G-to-G)

    6ms

  • Display Colors

    8 bit - 16.7M

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    0%

Display

Jump to...
  • Dynamic C/R

    100,000:1

  • Frequency

    H-Scanning: 30-135kHz (DP), 15-135kHz (HDMI)
    V-Scanning Frequency: 30-75Hz (DP), 24-75Hz (HDMI)

  • Maximum Pixel Frequency

    533.25MHz (DP), 594MHz (HDMI)

Connectivity

Jump to...
  • Input

    RGB: Display Port 1.2 (1)
    Video: HDMI2.0 (2)
    HDCP: HDCP 2.2
    USB: USB 2.0 (1)

  • Output

    RGB: HDMI 2.0
    Video: Yes
    Audio: Stereo mini Jack
    External Control: RS232C(in/out), RJ45 (In/Out)
    External Sensor: Detachable Type (IR, Ambient)

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max (W/h): 350
    Typical (W/h): W/W(EU) 210 US/KOR/Etc.
    BTU (Max): 1194
    Sleep mode: Less than 0.5W
    Off mode: Less than 0.5W

Operation

Jump to...
  • Operating Temperature

    Direct Sunlight: 32 Degree F - 86 Degree F (0 Degree C- 30 Degree C)
    Without Direct Sunlight: 32 Degree F - 104 Degree F (0 Degree C- 40 Degree C

  • Humidity

    10 % - 80 %

Internal Player

Jump to...
  • Processor

    Cortex-A72 1.7GHz Quad Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache : 48KB
    L1 Data Cache : 32KB
    L2 Cache : 2MB

  • Clock Speed

    1.7GHz CPU Quad

  • Main Memory Interface

    2.5GB LPDDR4 1.5GHz 64bit

  • Graphics

    Graphic resolution: 1920 x 1080
    Output resolution: up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 4.0 (VDLinux)

Certification

Jump to...
  • Safety

    cUL60950-1

  • EMC

    FCC (USA) Part 15, Subpart B Class A CE

Mechanical

Jump to...
  • VESA Mount

    400 x 400mm

  • Bezel Width

    19.9mm (even)

  • Dimensions

    41.8 x 24.2 x 2.14" (1062 x 616.6 x 54.5mm)

  • Weight

    40.12 lb (18.2kg)

  • UPC Code

    887276300597

About Samsung OM46N

Promote content with exceptional clarity in any storefront window

Features
Promote content in any storefront window
Samsung's OMN series was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

Foster brilliant presentation for all
Featuring 4,000nit brightness and a high contrast ratio of 5,000:1, the OMN Series' display remains bright and clear, delivering an uncompromised picture that will capture the attention of potential customers - even in direct sunlight.

Modernize space with slim design
The OMN Series delivers an immersive content with a remarkably slim 54.5mm depth. Its compact size makes the display a natural extension of the store, as opposed to an addition that ties up valuable space.

Streamline content management
SThe OMN Series' embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display's overall performance, allowing for easy content management and ensuring seamless content transition and playback.

Deliver vibrant content with efficiency
The OMN Series addresses energy efficiency by consuming less power than conventional displays* while delivering a brilliant picture and spectacular performance. As a result, retailers are equipped with a superior, more engaging display that offers greater control over costs.

Durable Performance
With IP5x-validated dust protection and a proprietary 3-step process to prevent damage from overheating, OMN series displays stand the test of time.

Clutter-Free Configuration
Cable guide and embedded Wi-Fi provide clean, organized look and allow for content and firmware updates without the need for additional messy cables.

Award-winning digital signage solution
The Samsung OMN and OMN-D Series has been recognized by leading digital signage industry awards. The displays received the AV Display Innovation of the Year from the AV News Awards and Best All-Weather Display from the TNT Awards for smart design, flawless clarity and brightness.

AV Display Innovation of the Year
"Samsung OMN and OMN-D series, its brand new semi-outdoor displays available in 46 and 55-inch, are designed with a storefront window display in mind and capture viewers' minds with comprehensive innovation. Brilliant, vibrant images with superior picture quality, high brightness...."

Displays: All Weather Displays
"Samsung's OMN Series not only delivers an image with flawless clarity but is also designed to maintain superior picture quality even when exposed to direct sunlight. With slim and sleek design, the OMN series is compatible with any window layout and can complement the style of any brand."

Key Features
• High brightness Semi-Outdoor Slim & Clean back designBuilt-in MagicInfo Player S6, SSSP 6.0
• IP 5x rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock, WiFi Module Embedded

Samsung OM46N Features

  • Ultra-high brightness emphasizing content, regardless of the lighting conditions
  • Slim and contemporary design that seamlessly integrates into any display window
  • Easy content management with a built-in management solution

Key Features

  • Ultra-high brightness emphasizing content, regardless of the lighting conditions
  • Slim and contemporary design that seamlessly integrates into any display window
  • Easy content management with a built-in management solution

What's in the box:

  • OM46N 46 " Full HD Class High Brightness Semi-Outdoor Smart Signage Display
  • Power Cord
  • Remote Controller with Batteries
  • Quick Setup Guide
  • Regulatory Guide
  • Samsung 3 Year Limited Warranty
