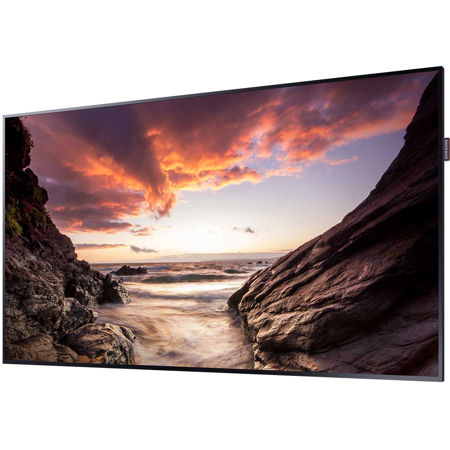

Samsung PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display, Cortex-A12 1.3GHz, 2.5GB DDR3, 8GB Storage, Built-in Speakers

SKU: SSPM43FBC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the operating system of the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display?

The PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display is powered by the integrated Tizen operating system.

What is the touch technology used in the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display?

The PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display uses multi-point capacitive touch technology for a smooth, easy-to-navigate digital writing experience.

Is the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display dust-resistant?

Yes, the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display has a dust-resistant design, making it ideal for continuous operation in various environments.

What are some of the key features of the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display?

Some key features of the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display include a non-glare, glass touch front panel with anti-haze coating, built-in speakers, Cortex-A12 1.3GHz, 2.5GB DDR3, and 8GB storage.

What is the intended use of the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display?

The PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display is intended for use in public spaces such as hotels, restaurants, and retail stores for displaying information and entertainment purposes.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samsung PM43F-BC Specifications

Panel
  • Diagonal Size

    43" (109.2cm)

  • Type

    60Hz E-LED BLU

  • Resolution

    1920 x 1080 (Full HD)

  • Pixel Pitch (H x V)

    0.49 x 0.49mm

  • Active Display Area (H x V)

    940.89 x 529.25mm

  • Brightness (typical)

    350 nit

  • Contrast Ratio

    3000:1

  • Viewing Angle (H/V)

    178:178

  • Response Time(G-to-G)

    8ms

  • Display Colors

    10bit Dithering - 1.07Billion

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    44% (Panel), 15% (Glass)

Display

Jump to...
  • Dynamic C/R

    Mega

  • H-Scanning Frequency

    30 - 81kHZ

  • V-Scanning Frequency

    48 - 75HZ

  • Maximum Pixel Frequency

    148.5MHz

  • Speaker Type

    Built in Speaker(10W + 10W)

Connectivity

Jump to...
  • Input

    RGB: DVI-I(D-Sub Common), Display Port 1.2 (1)
    Video: HDCP 2.2
    HDCP: HDCP 2.2
    Audio: Stereo mini Jack, GB/DVI/HDMI
    USB: USB 2.0 x 2 (1 Used for Touch)

  • Output

    RGB: DP1.2(Loop-out)
    Audio: Stereo mini Jack
    USB: USB Type-B x 2 (Touch Sensor Data, PC 1 / SoC 1)
    External Control: RS232C(In/Out) thru Stereo Jack, RJ45

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max[W/h]: 154
    Typical[W/h]: 117
    BTU(Max): 525
    Sleep mode: less than 0.5W
    Off mode: less than 0.5W

Operation

Jump to...
  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Humidity

    10.0 % - 80.0 %

Internal Player

Jump to...
  • Processor

    Cortex-A12 1.3GHz Quad Core CPU

  • On-Chip Cache Memory

    L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB

  • Clock Speed

    1.3GHz CPU Quad

  • Main Memory Interface

    2.5GB 3 channel 96bit DDR3-933 (1866MHz)

  • Graphics

    2D & 3D Graphics Engine - Up to 3840x2160p. 32bpp - Supports OpenGL ES

  • Storage (FDM)

    8GB (3.75GB Occupied by O/S, 4.25GB Available, )

  • Multimedia

    Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 2.4 (VDLinux)

Certification

Jump to...
  • Safety

    UL(USA) : cUL60950-1

  • EMC

    FCC (USA) Part 15, Subpart B Class A

Media Player

Jump to...
  • Media Player

    SBB

Mechanical

Jump to...
  • VESA Mount

    7.87 x 7.87" (200 x 200mm)

  • Protection Glass

    3.2T Semi-Tempered Touch Glass

  • Bezel Width

    25.0 / 20.0 / 25.0

  • Dimensions

    38.7 x 22.9 x 2.47" (983.9 X 582.3 X 62.8mm)

  • Weight

    35.05 lbs (15.9kg)

  • UPC Code

    887276248943

About Samsung PM43F-BC

Under the banner of Samsung's PM43F-BC Series, we present a 43" Class Full HD Commercial Touchscreen Smart LED Display that is designed to redefine customer engagement. This all-in-one touchscreen display combines the stunning visual power of Samsung's signage with the incredible touch-driven efficiency of its interactive offerings. It's an ideal choice for diverse environments such as retail, public spaces, corporate settings, and transportation hubs.

This breathtaking display allows users to seamlessly navigate a range of relevant content, unaffected by surrounding light or environmental conditions. Powered by the integrated, robust Tizen operating system, the PM43F-BC display offers users the amazing capability to deliver rich, engaging content with minimal operational burden.

The PM43F-BC displays condense several vital signage components, including a powerful Cortex-A12 1.3GHz processor, 2.5GB DDR3 RAM, and 8GB storage, into a spectacular all-in-one solution. Backed by the versatile Tizen OS, these displays deliver dynamic, touch-enabled content without the need for external PCs or devices. An intuitive interface further enhances quick and convenient navigation across essential applications and content.

Experience comfortable, multi-point capacitive touch communication with Samsung's PM43F-BC displays. These interactive displays can accommodate up to 10 unique touch points, maintaining the smooth, familiar feel of analog board or pen-and-paper writing, without interference from dust, sunlight, or other natural variables.

Featuring elevated contrast ratios and 400nit brightness, the PM43F-BC displays showcase highly visible content even in environments subject to variable lighting conditions. A non-glare, glass touch front panel reduces the impact of natural and ambient light interference, ensuring consistent readability. A complementary anti-haze coating ensures smooth, uninterrupted on-screen navigation.

Designed for continuous operation, the PM43F-BC displays are reliable and dust-resistant, making them a welcome addition to environments frequently subject to these elements. The displays also offer convenient control through a centralized infrared receiver (IR), making management quick and uninterrupted.

Key features of the PM43F-BC displays include slim and light signage with built-in MagicInfo S4, SSSP 4.0, Cap-Touch, non-glare touch panel, temperature sensor, video wall capabilities, built-in speakers, WiFi module, and more. The software features include Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play, Image Rotation, Button Lock, Firmware Update by Network, and more.

In summary, the PM43F-BC Series 43" Class Full HD Commercial Touchscreen Smart LED Display is a versatile, powerful, and reliable tool for a variety of applications, offering high-quality display and advanced features.

Samsung PM43F-BC Features

  • Capacitive touch technology that enables up to 10 different touch points simultaneously
  • All-in-one display solution with embedded MagicInfo Player S4 powered by Tizen
  • IP5x certification that reflects it can withstand demanding usage environments

Key Features

  • 43" Full HD Commercial Touchscreen Smart LED Display for vibrant, clear images
  • Integrated Tizen operating system for delivering rich, engaging content
  • Built-in speakers, Cortex-A12 1.3GHz, 2.5GB DDR3, and 8GB storage for versatile functionality
  • Multi-point capacitive touch technology for a smooth, easy-to-navigate digital writing experience
  • Dust-resistant design, ideal for continuous operation in various environments

What's in the box:

  • PM43F-BC Series 43 " Class Full HD Commercial Touchscreen Smart LED Display
  • Power Cord
  • Remote Controller
  • Batteries
  • RS232C(IN) Adapter
  • Cover Jack
  • USB Cable
  • Quick Setup Guide
  • Regulatory Guide
  • Samsung 3 Year Limited Warranty
