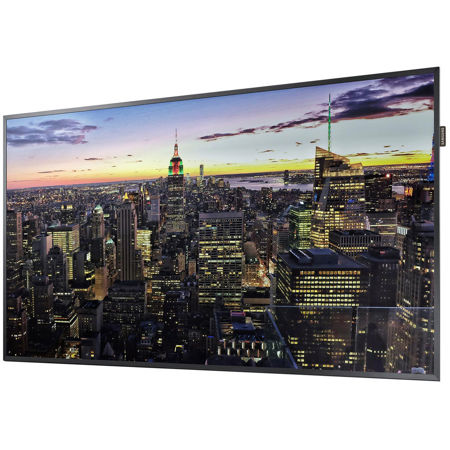

Samsung QB65H 65" Class 4K UHD Commercial Smart Signage LED Display, Cortex-A72 1.7GHz, 3GB DDR4, 8GB Storage, Built-in Speakers

SKU: SSQB65H

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samsung QB65H Specifications

Panel
  • Diagonal Size

    65" (165.1cm)

  • Type

    60Hz E-LED BLU

  • Resolution

    3840 x 2160 (4K UHD)

  • Pixel Pitch (H x V)

    0.105 x 0.315mm

  • Active Display Area (H x V)

    1428.48 x 803.52mm

  • Brightness (typical)

    350 nit

  • Contrast Ratio

    4000:1

  • Viewing Angle (H/V)

    178/178

  • Response Time(G-to-G)

    8ms(Typ.)

  • Display Colors

    16.7M(True Display) 1.07B(Ditherd 10bit)

  • Color Gamut

    72%

  • Operation Hour

    16/7

  • Haze

    2%

Display

Jump to...
  • Dynamic C/R

    MEGA

  • H-Scanning Frequency

    30 - 81kHZ

  • V-Scanning Frequency

    48 - 75HZ

  • Maximum Pixel Frequency

    594MHz

  • Speaker Type

    Built in Speaker(10W + 10W)

Connectivity

Jump to...
  • Input

    RGB: DVI-D
    Video: HDMI 2.0 (2)
    HDCP: HDCP 2.2
    Audio: Stereo Mini Jack, DVI/HDMI
    USB: USB 2.0 x 2

  • Output

    Audio: Stereo Mini Jack
    External Control: RS232C(in/out) thru stereo, RJ45
    External Sensor: IR

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max[W/h]: 165
    Typical[W/h]: 122
    Rating[W/h]: 130
    Sleep mode: less than 0.5W
    Off mode: less than 0.5W

Operation

Jump to...
  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Humidity

    10 % - 80 %

Internal Player

Jump to...
  • Processor

    Coretex A72 1.7GHz Quad-Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

  • Clock Speed

    1.7GHz Quad-Core CPU

  • Main Memory Interface

    3GB 3ch 64bit LPDDR4 1.6GHz

  • Graphics

    2D & 3D Graphic Accelerator Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 3.0 (VDLinux)

Certification

Jump to...
  • Safety

    60950-1

  • EMC

    Class A

Media Player

Jump to...
  • Media Player

    SBB

Mechanical

Jump to...
  • VESA Mount

    15.74 x 15.74" (400 x 400mm)

  • Bezel Width

    12.2/12.2/12.2

  • Dimensions

    57.32 x 32.89 x 1.47" (1456.1 x 835.6 x 37.5mm)

  • Weight

    50.26 lbs (22.8kg)

  • UPC Code

    8806088983806

About Samsung QB65H

Deliver Impactful Content through an All-Inclusive Display
Samsung's QBH Series displays deliver content with visual impact while also improving operational efficiency. Through UHD picture quality, the displays foster an inviting and memorable viewing environment. Backed by the powerful SSSP 5.0 and TIZEN 3.0 operating system, the displays feature a host of business-ready functionalities while also protecting business data through enhanced security.

Enliven Commercial Content with UHD Picture Quality
Featuring state-of-the-art UHD picture quality, the QBH Series displays empower users to deliver more impactful messaging. Each QBH Series display showcases content with four times the ultra-realistic detail and clarity of standard alternatives, with a wider screen offering more space for imagery. When combined with performance features, such as portrait mode, this next-level presentation makes the QBH Series ideal for any commercial setting.

Enjoy Greater Operational Flexibility with the TIZEN OS
The QBH Series displays are among the first in Samsung's lineup to feature the upgraded SSSP 5.0, backed by the powerful TIZEN 3.0 operating system. Through this integration, users receive a host of business-critical capabilities, ranging from secure in-platform application development to remote management. Not only do the QBH Series displays feature advanced graphic presentation, but the display also allows users to deliver targeted real-time messaging through the Beacon management technology.

Powerful Performance
• Graphic performance with Quad core CPU
• UHD Content play back
• HTML5 Compatibility

Easy Development
• Tizen Studio 1.0
• Node.JS HTTP web Server

Business Expandability
• Remote Management
• Signage Device Management
• Enhanced Security

Protect Business and Customer Data through Extensive Security
For government, financial and other information-based businesses, data protection is paramount for efficient operations. Samsung's QBH Series displays accommodate this need through intense security measures. The embedded TIZEN 3.0 OS offers defense across the application, platform and system layers, restricting file and data access to an exclusive user base.

Enjoy a Consistent, Accelerated Refresh Rate through Versatile Connectivity
An upgrade on more limited alternatives, the QBH Series displays support a range of content and elevate overall display performance through both HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source.

Key Features
• UHD Signage Display Slim & Light Signage with Built-in MagicInfo S5, SSSP 5.0
• H/W : Temperature Sensor, Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Wi-Fi
• S/W : Auto Source Switching & Recovery,LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Samsung QB65H Features

  • UHD picture quality with ultra-realistic detail and clarity that amplifies content
  • Integrated TIZEN 3.0 operating system that improves overall business performance
  • Reinforced security measures that protect business and customer data

Key Features

  • UHD picture quality with ultra-realistic detail and clarity that amplifies content
  • Integrated TIZEN 3.0 operating system that improves overall business performance
  • Reinforced security measures that protect business and customer data

What's in the box:

  • QB65H 65 " Class 4K UHD Commercial Smart Signage LED Display
  • Power Cord
  • Remote Controller
  • Batteries
  • Quick Setup Guide
  • Samsung 3 Year Limited Warranty
