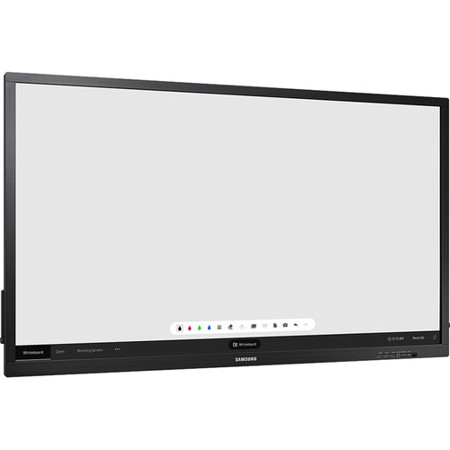

Samsung QB65H-TR 65" Class 4K UHD 16:9 E-Board Touch Display, Cortex A72 Processor, Cortex-A72 1.7GHz, 3GB DDR4, 8GB Storage, Built-in Speakers

SKU: SSQB65HTR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samsung QB65H-TR Specifications

Panel
  • Diagonal Size

    65"

  • Type

    60Hz E-LED

  • Resolution

    3840 x 2160 (4K UHD)

  • Brightness (typical)

    250 nit

  • Contrast Ratio

    Mega

  • Viewing Angle (H/V)

    178:178

  • Response Time(G-to-G)

    8ms

  • Operation Hour

    16/7

  • Speaker Type

    Built in Speaker (10W x 2)(Down Firing w/Bass Reflex)

Connectivity

Jump to...
  • Input

    Video: HDMI Rear1, HDMI Rear2 (ver 2.0), HDMI Front3 (ver 1.4), DVI-D, DP
    USB: USB 1, 2 (Rear), USB 3 (Front), PC USB (Front)

  • Output

    Audio: Audio
    Touch Out: Touch Out 1 (Rear), Touch Out 2 (Front)
    External Control: RS232C(in/out) thru stereo jack, RJ45, Wi-Fi
    External Sensor: IR Sensor(Display Control)

  • Type

    IR (Infra Red)

  • Number of Drawing

    4 drawing (SoC), 10 drawing (External Windows PC)

  • Touch Pen Type

    Passive Pen

  • Object Recognition Range

    8mm

  • Type

    Internal

  • Power Supply

    AC 100-240V 50/60Hz

  • Power Consumption

    Stand-by(Max): 0.5

Operation

Jump to...
  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Humidity

    10.0 % - 80.0 %

Internal Player

Jump to...
  • Processor

    Cortex A72 1.7GHz Quad-Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

  • Clock Speed

    1.7GHz Quad-Core CPU

  • Main Memory Interface

    3GB 3ch 64bit LPDDR4 1.6GHz

  • Graphics

    2D & 3D Graphic Accelerator Data Format : 32bpp Output resolution : 3840x2160p

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 3.0 (VDLinux)

Mechanical

Jump to...
  • Color

    Black

  • VESA Mount

    15.74 x 15.74" (400 x 400mm)

  • Protection Glass

    Yes

  • Stand Type

    Wall Mount

  • Power Cable Length

    1.8m

  • Accessory

    Pen Holder

  • Dimensions

    59.63 x 34.74 x 2.29" (1514.7 X 882.4 X 58.2mm)

  • Weight

    86.42 lbs (39.2kg)

  • UPC Code

    8801643041991

About Samsung QB65H-TR

Revitalize Productive Collaboration
Samsung's QBH-TR / QBN-W e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.

Enhance Touch, Enhance Capacity
Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.

• Smooth & Fast
• Multi Writing Up to 4
• Passive Pen
• Flexible Erasing

Elevate Collaboration Quality
The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.

• Intuitive UI
• Interactive Collaboration
• Remote Workspace
• PC-less Solution
• Secure Protection

Switch Sources Seamlessly
Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.

Retrieve and Control Content Remotely
Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.

Connect with Convenience
Each e-board offers a wide range of connections including HDMI, DVI-D, DP and USB ports, where users can load, share and revise content directly from their personal devices.

Amplify Visual Presentation
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

Maintain Organization with Style
Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.

Key Features
• Slim & Light LFD with Built-in MagicInfo Player S5, SSSP
• H/W:Super Clear Coating, Temperature Sensor, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded
• S/W:MagicIWB S5

Samsung QB65H-TR Features

  • Heightened touch functionality for a smooth and versatile digital writing experience
  • Intuitive interface for quick access to screen mirroring and real-time notation saving
  • Working Screen function that enables users to toggle between multiple screens
  • Distinct content clarity through advanced UHD picture quality

Key Features

  • Heightened touch functionality for a smooth and versatile digital writing experience
  • Intuitive interface for quick access to screen mirroring and real-time notation saving
  • Working Screen function that enables users to toggle between multiple screens
  • Distinct content clarity through advanced UHD picture quality

What's in the box:

  • QB65H-TR 65 " Class 4K UHD 16:9 E-Board Touch Display
  • Power Cord
  • Batteries
  • Remote Control
  • RS232C(IN) Adapter
  • Holder Cable
  • 2x Touch Pen
  • USB Cable
  • Quick Setup Guide
  • Regulatory Guide
  • Samsung 3 Year Limited Warranty
