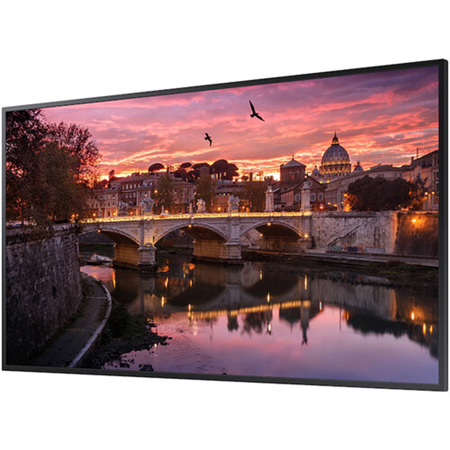

Samsung QB65R-B 65" 16:9 Class 4K UHD Wi-Fi Smart Commercial LED Display

SKU: SSQB65RB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?LINDSAY T : To display my images through the window front of my photography studio

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Samsung QB65R-B Specifications

Panel
  • Diagonal Size

    65"

  • Type

    Edge LED BLU

  • Resolution

    3840 x 2160 (4K UHD)

  • Pixel Pitch

    0.372 x 0.372mm

  • Active Display Area

    1428.48 x 803.52mm

  • Brightness(Typ.)

    350 nit

  • Contrast Ratio

    4000:1

  • Viewing Angle(H/V)

    178/178

  • Response Time(G-to-G)

    8ms (Typ.)

  • Display Colors

    16.7M (True Display)
    1.07B(Ditherd 10bit)

  • Color Gamut

    92% (DCI-P3, CIE 1976)

  • Operation Hour

    16/7

  • Haze

    2%

Display

Jump to...
  • Dynamic C/R

    MEGA

  • Frequency

    H-Scanning: 30 - 81kHZ
    V-Scanning: 48 - 75HZ
    Maximum Pixel: 594MHz

  • Speaker Type

    Built in Speaker(10W + 10W)

Connectivity

Jump to...
  • RGB

    DVI-D

  • Video

    2x HDMI 2.0

  • HDCP

    HDCP 2.2

  • Audio

    Stereo Mini Jack, DVI/HDMI/Audio(Common)

  • USB

    2x USB 2.0

  • Audio

    Stereo Mini Jack

  • External Control

    RS232C(in/out) thru stereo jack, RJ45

  • External Sensor

    IR

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V, 50/60 Hz

  • Power Consumption

    Max: 181.5W/h
    Typical: 128W/h
    Rating: 165W/h
    BTU(Max): 618.9
    Sleep Mode: 0.5

Feature

Jump to...
  • Key Features

    UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

  • Orientation

    Landscape / Portrait

  • Special Features

    H/W: Temperature Sensor,Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating
    Wi-Fi S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

Jump to...
  • Processor

    Cortex A72 1.7GHz Quad-Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB

  • Clock Speed

    1.7GHz

  • Main Memory Interface

    2.5GB LPDDR4 1.5GHz 64bit

  • Graphics

    Graphic resolution: 1920x1080 Output resolution: 3840x2160 (Scale up from graphic processing result.)

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder: AC3 (DD), MPEG

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 4.0 (VDLinux)

Certification

Jump to...
  • Safety

    60950-1

  • EMC

    Class B

  • Security

    802.1x (WPA2 Enterprise): EAP-TLS, EAP-TTLS, EAP-PEAP

Mechanical

Jump to...
  • VESA Mount

    400 x 400mm

  • Stand Type

    No

  • Bezel Width

    9.2mm (U/L/R), 11.2mm(B)

  • Dimensions

    57.24 x 32.71 x 1.8" (1453.9 x 831.0 x 46.3mm)

  • Weight

    54.89 lbs (24.9kg)

  • UPC Code

    887276614083

About Samsung QB65R-B

Display any content in ultra-high definition with incredibly rich color on slim, efficient signage

Time to upscale your display
Samsung's new QBR-B series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

Incredible 4K picture quality
Empower your customers to experience pure visual innovation with lifelike images in sharper picture quality than ever before.

Intelligent UHD upscaling

Crystal Processor 4K
QBR-B's UHD upscaling feature is made possible by Samsung's Crystal Processor 4K. This innovative technology allows the display to play lower resolution content at UHD-level quality while also improving the visibility of on-screen text and images.

Marvel at the lifelike Color expression

Dynamic Crystal Display
Immerse your customers in every picture with a wider range of color. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

Slim and symmetrical design
Slim, symmetrical design that will stand the test of time and ensure the QBR-B series blends seamlessly into any environment, with simple installation to get your display up and running as soon as possible.

Clean cable management
With QBR-B's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.

Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

Industry standard certified
The QBR-B series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.

Samsung QB65R-B Features

  • Engage customers with lifelike images through ultra high-definition resolution
  • Deliver UHD-level picture quality even with lower resolution content through Crystal Processor 4K supporting advanced UHD upscaling technology
  • Symmetrical, slim design simplifi es installation and complements any environment

Key Features

  • Engage customers with lifelike images through ultra high-definition resolution
  • Deliver UHD-level picture quality even with lower resolution content through Crystal Processor
  • Symmetrical, slim design simplifi es installation and complements any environment

What's in the box:

  • Samsung QB65R-B 65" 16:9 Class 4K UHD Wi-Fi Smart Commercial LED Display
  • Power Cord
  • Remote Controller with Batteries
  • Quick Setup Guide
  • Samsung 3 Year Limited Warranty
