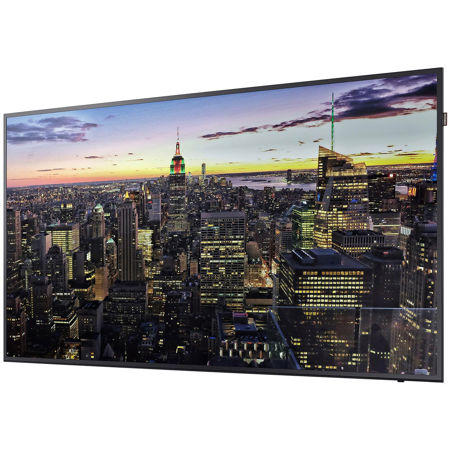

Samsung QB75H 75" Class 16:9 120Hz Edge-Lit 4K UHD Commercial Smart Signage Display, Coretex A72 1.7GHz, 3GB LPDDR4, 8GB Storage, Tizen 3.0, Built-In Speakers, 3840x2160

SKU: SSQB75HN

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samsung QB75H-N Specifications

Display

Display

Jump to...
  • Screen Size

    75" (190.5cm)

  • Panel Technology

    120Hz Slim Direct LED BLU

  • Resolution

    3840 x 2160 (4K UHD)

  • Aspect Ratio

    16:9

  • Brightness

    300nits

  • Contrast Ratio

    Typical: 4000:1
    Dynamic: MEGA

  • Viewing Angle (H/V)

    178/178

  • Response Time

    8ms

Connectivity

Jump to...
  • Input

    RGB: DVI-D, Display Port 1.2
    Video: 2x HDMI 2.0
    HDCP: HDCP2.2

    Audio: Stereo mini Jack, DVI, HDMI
    USB: 2x USB 2.0

  • Output

    Audio: Stereo mini Jack

  • External Control

    RS232C(in/out), RJ45

  • Sensor

    IR

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption (Standby)

    less than 0.5W

  • Built-in Speakers

    Built in Speaker (10W + 10W)

Internal Player

Jump to...
  • Processor

    Coretex A72 1.7GHz Quad-Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache: 48KB
    L1 Data Cache: 32KB
    L2 Cache: 2MB

  • Clock Speed

    1.7GHz Quad-Core CPU

  • Main Memory Interface

    3GB
    3ch 64bit LPDDR4
    1.6GHz

  • Graphics

    2D & 3D Graphic Accelerator Data Format: 32bpp
    Output resolution: 3840x2160p

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder:
    MPEG 1/2/4, H.263, H.264/AVC
    UHD H.264/AVC, VC-1, AVS/AVS+, MVC
    VP8, VP9, HEVC, JPEG

    Audio DSP (Decoder):
    MPEG, AC3, AC4, DD, MP3 and etc

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 3.0 (VDLinux)

Green Management

Jump to...
  • Emission Standard

    Class A

Operation

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    10-80%

  • Recommended Run Time

    16/7

Mechanical

Jump to...
  • VESA Mount

    15.74 x 15.74" (400 x 400mm)

General

Jump to...
  • SMART Signage Platform

    Yes

  • Plug & Play

    Yes

  • Bezel Width

    Top: 0.63" (16.1mm)
    Side: 0.63" (16.1mm)
    Bottom: 0.79" (20.2mm)

  • Dimensions

    66.5 x 38.2 x 2.6" (1689.1 x 970.28 x 66.04mm)

  • Weight

    76.7 lb (34.8kg)

  • UPC Code

    887276266015

About Samsung QB75H-N

Exceed expectations while meeting your budget with large panels, 4K UHD resolution and an integrated media player.

At a Glance
With stunning 4K UHD quality and large-panel displays, Samsung's QB-H Series digital signage delivers a big, beautiful picture to impress your audience, while keeping it affordable. State-of-the-art graphic performance and operational versatility combine in an all-in-one digital signage solution.

Installation and content management are greatly simplified with the integrated internal CPU. And no external set-back box or PC is needed, so there's nothing extra to purchase or install.

Features:
Stunning 4K UHD Ultra-Realistic Detail and Picture Quality
With 4K UHD resolution (3840 x 2160), each QB-H Series display showcases content with four times the ultra-realistic detail and clarity of FHD. Plus, the wide screen offers lots of space for text and imagery to make a big impact.

300-nit Brightness
UHD resolution combines with bright 300-nit screens for messages that demand attention.

All-in-One Signage Solution
Samsung's Smart Signage Platform 5.0 backed by the Tizen 3.0 operating system delivers a powerful, all-in-one digital signage solution. The internal CPU and high-performance video processor deliver an integrated media player platform, eliminating the need for an external set-back box or PC.

Reliable 16/7 Operation
Samsung's QBH-N Series commercial displays are designed from the chassis up to deliver high quality images with exceptional reliability. Unlike home TVs, they feature commercial-level cooling technologies and are designed specifically for long hours of continuous use. And for your peace of mind, they're backed by a 3-year onsite warranty.

Full Connectivity
Versatile connectivity options let you display a full range of exceptional content that speaks to your audience. Connections include DVI-D, Display Port 1.2, HDMI 2.0, USB 2.0, RS232C/RJ45 and more.<

Key Features
• Hardware: Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), Wi-Fi
• Software: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug & Play (Initial Setting)

Samsung QB75H-N Features

  • Stunning 4K UHD picture quality at an affordable price
  • All-in-one digital signage solution featuring an integrated media player
  • Versatile connectivity options to display a full range of exceptional content

Key Features

  • Stunning 4K UHD picture quality at an affordable price
  • All-in-one digital signage solution featuring an integrated media player
  • Versatile connectivity options to display a full range of exceptional content

What's in the box:

  • QB75H 75 " Class 16:9 120Hz Edge-Lit 4K UHD Commercial Smart Signage Display
  • Remote Controller with Batteries
  • Power Cord
  • Quick Setup Guide
  • Samsung 3 Year Limited Warranty
