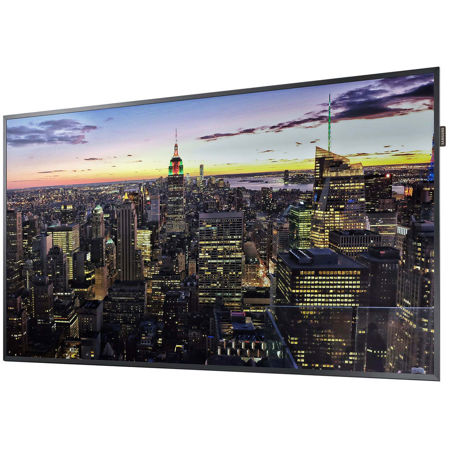

Samsung QM49H 49" 16:9 Class 4K UHD Wi-Fi Commercial Smart LED Display, Cortex A72 1.7GHz, 3GB LPDDR4, 8GB Storage,Tizen 3.0, Built-In Speakers

SKU: SSQM49H

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samsung QM49H Specifications

Panel
  • Diagonal Size

    49" (124.4cm)

  • Type

    60Hz E-LED BLU

  • Resolution

    3840 x 2160 (4K UHD)

  • Pixel Pitch (H x V)

    0.105 x 0.315mm

  • Active Display Area (H x V)

    42.27 x 23.77" (1073.78 x 604mm)

  • Brightness

    500 nit

  • Contrast Ratio

    4700:1

  • Viewing Angle (H/V)

    178/178

  • Response Time(G-to-G)

    8ms

  • Display Colors

    16.7M (True Display) 1.07B (Ditherd 10bit)

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    25%

Display

Jump to...
  • Dynamic C/R

    Mega

  • Aspect Ratio

    16:9

  • Frequency

    H-Scanning: 30 - 81kHZ
    V-Scanning: 48 - 75HZ

  • Pixel Frequency

    Maximum: 594MHz

  • Speaker Type

    Built in Speaker (10W + 10W)

Connectivity

Jump to...
  • Input

    RGB: DVI-D, Display Port 1.2
    Video: 2x HDMI 2.0
    HDCP: HDCP2.2
    Audio: Stereo Mini Jack, DVI/HDMI
    USB: 2x USB 2.0

  • Output

    RGB: HDMI 2.0 (Loop-out)
    Audio: Stereo Mini Jack
    External Control: RS232C (in/out) jack, RJ45
    External Sensor: IR

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max [W/h]: 154
    Typical [W/h]: 101
    Sleep mode: 0.5
    Off mode: less than 0.5W

Operation

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Humidity

    10.0 % - 80.0 %

Internal Player

Jump to...
  • Processor

    Cortex A72 1.7GHz Quad-Core CPU

  • On-Chip Cache Memory

    L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB

  • Clock Speed

    1.7GHz Quad-Core CPU

  • Main Memory Interface

    3GB 3ch 64bit LPDDR4 1.6GHz

  • Graphics

    2D & 3D Graphic Accelerator Data Format: 32bpp
    Graphic resolution : 1920x1080
    Output resolution : 3840x2160 (Scale up from graphic processing result.)

  • Storage (FDM)

    8GB (3.88GB Occupied by O/S, 4.12GB Available)

  • Multimedia

    Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG
    Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc

  • IO Ports

    USB 2.0

  • Operating System

    Tizen 3.0 (VDLinux)

Certification

Jump to...
  • Safety

    60950-1

  • EMC

    Class A

Media Player

Jump to...
  • Media Player

    SBB

Mechanical

Jump to...
  • VESA Mount

    15.74 x 15.74" (400 x 400mm)

  • Bezel Width

    Top: 0.43" (11mm)
    Side: 0.43" (11mm)
    Bottom: 0.47" (12mm)

  • Dimensions

    43.28 x 24.96 x 1.44" (1099.4 x 634 x 36.8mm)

  • Weight

    30.2 lb (13.7kg)

  • UPC Code

    8806088919485

About Samsung QM49H

UHD Signage that features ultra-realistic picture quality and business-ready functionalities

Features
Deliver Impactful Content through an All-Inclusive Display
Samsung's QMH Series displays deliver content with visual impact while also improving operational efficiency. Through UHD picture quality, the displays foster an inviting and memorable viewing environment. Additionally, these displays undergo thorough testing and certification to ensure round-the-clock performance.

Backed by the powerful SSSP 5.0 and TIZEN 3.0 operating system, the displays feature a host of business-ready functionalities while also protecting business data through enhanced security.

Enliven Commercial Content with UHD Picture Quality
Featuring state-of-the-art UHD picture quality, the QMH Series displays empower users to deliver more impactful messaging. Each QMH Series display showcases content with four times the ultra-realistic detail and clarity of standard alternatives, with a wider screen offering more space for imagery. When combined with performance features, such as portrait mode, this next-level presentation makes the QMH Series ideal for any commercial setting.

Enjoy Greater Operational Flexibility with the TIZEN OS
The QMH Series displays are among the first in Samsung's lineup to feature the upgraded SSSP 5.0, backed by the powerful TIZEN 3.0 operating system. Through this integration, users receive a host of business-critical capabilities, ranging from secure in-platform application development to remote management.

Not only do the QMH Series displays feature advanced graphic presentation, but the display also allows users to deliver targeted real-time messaging through the Beacon management technology.

Protect Business and Customer Data through Extensive Security
For government, financial and other information-based businesses, data protection is paramount for efficient operations. Samsung's QMH Series displays accommodate this need through intense security measures. The embedded TIZEN 3.0 OS offers defense across the application, platform and system layers, restricting file and data access to an exclusive user base.

Ensure Continuous Performance in any Condition
A durable design enables the QMH Series displays to deliver content around the clock without interruption, regardless of the surrounding conditions. Prior to distribution, the QMH Series displays undergo rigorous IP5x Validation to deter any potential impact from dust exposure. In turn, transportation hubs and other settings that face a host of natural and man-made variables can implement the displays without an external enclosure.

Achieve Brilliant, Glare-Free Picture Quality
Samsung's QMH Series displays ensure readability in any environment through a rigid non-glare front panel. This enhanced design reduces reflection and maintains clear visibility for featured text and imagery. As a result, indoor and outdoor businesses who face frequent exposure to bright natural or ambient lighting can deploy compelling content without having to worry about interference.

Configure Multiple Displays Seamlessly at Optimal Connectivity
An upgrade on more limited alternatives, the QMH Series displays support a range of content and elevate overall display performance through both HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source. Additionally, users can leverage the HDMI 2.0 option to configure multi-display UHD daisy chains up to 2x2 in size.

Key Features
• UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
• H/W : Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain (HDCP2.2:4EA, HDCP1.4:7EA), IP5x, Wi-Fi/BT
• S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug & Play (Initial Setting).

Samsung QM49H Features

  • UHD displays with non-glare panel that offers hyper-realistic, immersive visual experience
  • Integrated TIZEN 3.0 operating system that improves overall business performance
  • Dust-resistant design that ensures continuous, 24/7 performance in any location

Key Features

  • UHD displays with non-glare panel that offers hyper-realistic, immersive visual experience
  • Integrated TIZEN 3.0 operating system that improves overall business performance
  • Dust-resistant design that ensures continuous, 24/7 performance in any location

What's in the box:

  • QM49H 49 " 16:9 Class 4K UHD Wi-Fi Commercial Smart LED Display
  • Remote Control with Batteries
  • Power Cord
  • Quick Setup Guide
  • Samsung 3 Year Limited Warranty
