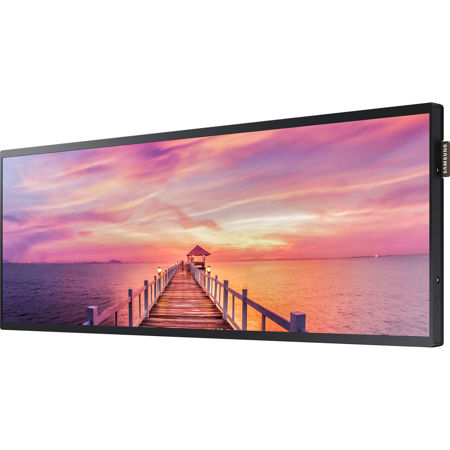

Samsung SH37F 37" Class 1920x540 16:4.5 Commercial Smart LED Display, Cortex-A9 1GHz, 1.5GB RAM, 8GB Storage

SKU: SSSH37F

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Samsung SH37F Specifications

Panel
  • Diagonal Size

    37" (93.9cm)

  • Type

    60Hz D-LED BLU

  • Resolution

    1920 x 540

  • Pixel Pitch (H x V)

    0.4686 x 0.4686mm

  • Active Display Area (H x V)

    899.712 x 253.044mm

  • Brightness (typical)

    700 nit

  • Contrast Ratio

    4000:1

  • Viewing Angle (H/V)

    178:178

  • Response Time (G-to-G)

    16ms

  • Display Colors

    8bit - 16.7M

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    44%

Display

Jump to...
  • Dynamic C/R

    10,000:1

  • H-Scanning Frequency

    54 - 69.75kHz

  • V-Scanning Frequency

    48 - 62Hz

  • Maximum Pixel Frequency

    148.5MHz

Connectivity

Jump to...
  • Input

    RGB: DVI-I, Display Port 1.2
    Video: HDMI1
    HDCP: HDCP 2.2
    Audio: Stereo Mini Jack
    USB: USB 2.0 x 1

  • Output

    RGB: DP1.2(Loop-out)
    Audio: Stereo mini Jack
    External Control: RS232C(in/out) thru stereo jack, RJ45
    External Sensor: IR
    Tuner: No

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max[W/h]: 77
    Typical[W/h]: 56
    BTU(Max): 263
    Sleep mode: less than 0.5W
    Off mode: less than 0.5W

Operation

Jump to...
  • Operating Temperature

    214 Degree F - 104 Degree F (101 Degree C - 40.0 Degree C)

  • Humidity

    10 - 80%

Internal Player

Jump to...
  • Processor

    Cortex-A9 1GHz Quad Core CPU

  • On-Chip Cache Memory

    L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB

  • Clock Speed

    1GHz CPU Quad

  • Main Memory Interface

    1.5GB Dual 48bit DDR3-933 (1866MHz)

  • Graphics

    2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES

  • Storage (FDM)

    8GB (2GB Occupied by O/S, 6GB Available, )

  • Multimedia

    Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.

  • IO Ports

    USB 2.0

  • Operating System

    Samsung Proprietary OS (VDLinux)

Certification

Jump to...
  • Safety

    UL (USA): cUL60950-1

  • EMC

    FCC (USA) Part 15, Subpart B Class A

Mechanical

Jump to...
  • VESA Mount

    400 x 200mm

  • Stand Type

    Foot Stand (Optional)

  • Bezel Width

    5.7 (Side), 12 (Top/Bottom)

  • Dimensions

    36 x 11 x 1.57" (914.9 x 280.8 x 39.9mm)

  • Weight

    14.5 lb (6.6kg)

  • UPC Code

    8806088435114

About Samsung SH37F

Stretched displays featuring a 16:4.5 widescreen with slim, narrow bezel design

Features

Maximize space and optimize content with Samsung SMART Signage solutions
Digital signage today needs to be versatile and cost effective with an emphasis on maximizing space efficiency. There has been an increasing need to utilize niche spaces with effective signage solutions. Samsung SHF Series displays, with 16:4.5 wide screen stretched display offer the ability to effectively communicate information in small, narrow spaces such as store shelves, ceilings, and corridors.

When used in a 24/7 transportation environment, Samsung SMART Signage SHF Series displays are an invaluable asset in keeping travelers apprised of changing schedules providing clear, easy to read, vibrant information that can be consumed at a glance.

In retail environments, SHF Series displays offer unique opportunities to promote products or entice customers with product information using minimal amount of space. With the capability of continuous 24/7 non-stop operation, you can rest assured that customer attention will be at an all time high.

Deliver sharp images in various lighting conditions
Samsung SMART Signage SHF Series displays deliver vibrant, realistic images offering an unparalleled visual experience. Featuring brightness levels of up to 700 nit, these displays deliver the clearest, richest images regardless of lighting conditions. SHF Series displays excel in situations with strong light where glare may present an issue. With a non-glare (44% haze) panel, you can rest assured that your content will not be obstructed by lighting conditions outside of your control, and you can be confident that your content will look great anywhere.

Customize content from portrait to landscape and display with simplicity
Samsung SHF Series displays offer pivoting capability along with image rotation software that can change image orientation from portrait to landscape for greater display flexibility. Images do not require rotation in image editing software to make them appear correctly in a different orientation as this capability is handled automatically within the display. The 16:4.5 wide screen format enables you to create a rich interactive experience in a multitude of ways in a variety of spaces. Content is fully optimized and the display allows for greater flexibility since it can accommodate for content in any orientation. Easily deliver vibrant, realistic images with ease and simplicity. On playing contents of 540x1920 size, pivot mode makes it optimal.

Maximize viewer engagement in a minimum amount of space
Samsung SHF Series displays feature a slim profile with a depth of only 39.9 mm which allows you to maximize available space. This enables the display to be installed in areas where space is limited and allows content to blend seamlessly with the environment in a slim, light, design with reduced power consumption for lower operation costs. A slim bezel design of only 13.9 mm (T/B) and 7.5 mm (L/R) allows for fewer distractions in the content and allows your message to shine in a clear, un-interrupted way.

Daisy chain multiple displays without the need for additional equipment
Due to the relative novelty of UHD in commercial display settings, few media players currently offer support for UHD streaming. To meet this demand, Samsung launched an optional UHD-capable SBB, which can attach to the back of the SHF Series. The simple installation of this SBB eliminates unnecessary wire clutter and also removes the need to create separate housing for the media player.

Key Features
• Slim & Light LFD with Built-in MagicInfo Player S3, SSSP 3.0
• H/W: USB Plug and Play, Tilting and Portrait Install support, Daisy Chains, Shock and Vibration certificated(IEC 61373)
• S/W: Magic Clone(to USB), RS232 MDC, , Video Wall, Smart Scheduling, Auto Source Switching, Internal Media Player

Samsung SH37F Features

  • New widescreen 16:4.5 stretched displays with continuous 24/7 operation capability
  • Unparalleled visual effect with high brightness (700 nit) and non-glare panels (44% haze)
  • Straightforward display and content management with DP Loop Out and USB Playback functionality

Key Features

  • New widescreen 16:4.5 stretched displays with continuous 24/7 operation capability
  • Unparalleled visual effect with high brightness (700 nit) and non-glare panels (44% haze)
  • Straightforward display and content management with DP Loop Out and USB Playback functionality

What's in the box:

  • SH37F 37" Class 1920x540 Commercial Smart LED Display
  • Power Cord
  • Batteries
  • Remote Control
  • RS232C(IN) Adapter
  • Screw
  • External Remote Control Sensor
  • Cover-Jack
  • Quick Start Guide
  • Samsung 3 Year Limited Warranty
