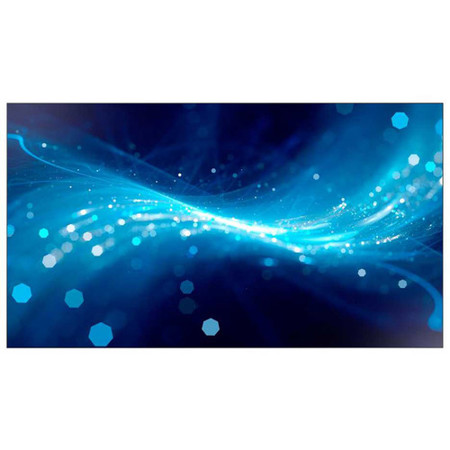

Samsung UH46N-E 46" Full HD Extreme Narrow Bezel Commercial LED Display, 1920x1080

SKU: SSUH46NE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Samsung UH46N-E Specifications

Panel
  • Diagonal Size

    46" (116.84cm)

  • Type

    D-LED DID

  • Resolution

    1920 x 1080 (Full HD)

  • Pixel Pitch (H x V)

    0.53025 x 0.53025mm

  • Active Display Area (H x V)

    1018.08 x 572.67mm

  • Brightness (typical)

    700 nit

  • Contrast Ratio

    4000:1

  • Viewing Angle (H/V)

    178:178

  • Response Time (G-to-G)

    8ms

  • Display Colors

    8bit - 16.7M

  • Color Gamut

    72%

  • Operation Hour

    24/7

  • Haze

    25% (Outer Haze 23%)

Display

Jump to...
  • Dynamic C/R

    MEGA DCR

  • H-Scanning Frequency

    30 - 81kHZ

  • V-Scanning Frequency

    48 - 75HZ

  • Maximum Pixel Frequency

    148.5MHz

Connectivity

Jump to...
  • Input

    RGB: Analog D-SUB, DVI-D, Display Port 1.2
    Video: HDMI 2.0 (2)
    HDCP: HDCP 2.2
    Audio: Stereo mini Jack
    USB: Only F/W upgrade

  • Output

    RGB: DP1.2(Loop-out)
    Audio: Stereo mini Jack
    External Control: RS232C(in/out), RJ45
    External Sensor: Detachable type(IR)

  • Type

    Internal

  • Power Supply

    AC 100 - 240 V- (+/- 10 %), 50/60 Hz

  • Power Consumption

    Max[W/h]: 132
    Typical[W/h]: 98
    BTU (Max): 450
    Sleep mode: Less than 0.5W
    Off mode: Less than 0.5W

Operation

Jump to...
  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

  • Humidity

    10 - 80%

Certification

Jump to...
  • Safety

    UL (USA) : UL 60950-1

  • EMC

    FCC (USA) FCC Part 15, Subpart B class A

Mechanical

Jump to...
  • VESA Mount

    600 x 400mm

  • Bezel Width

    1.15mm(U/L), 0.55mm(R/B)

  • Dimensions

    40.1 x 22.6 x 3.79" (1020.0 x 574.6 x 96.3mm)

  • Weight

    34.6 lb (15.7kg)

  • UPC Code

    887276294162

About Samsung UH46N-E

Premium video wall displays featuring deeper visual impact and thinner bezel to bezel width of 1.7mm

Features
Deliver deeper visual impact
Samsung's narrow bezel video wall features bezel-to-bezel width of 1.7mm that minimizes the visual distraction of video walls to elicit impacting imagery of products. The display produces a near-seamless picture across multiple screens without interruption, captivating and impressing customers.

Amplify image clarity in any environment
Combined with a non-glare panel, the extreme narrow bezel video wall display is designed to help businesses create memorable content presentation even under ambient light. This panel evenly distributes light throughout the screen, eliminating glare while maintaining content vibrancy and accuracy.

Extend content presentation capabilities
Samsung's video wall offers a powerful UHD viewing experience with minimal effort or additional equipment. As the first in the industry to have up to 5x5 wall configuration based on the use of DisplayPort 1.2 and HDMI ports, the display can project UHD content across multiple screens simultaneously.

Share accurate and uniform content
Samsung's multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung's Color Expert Pro, a powerful free software program.

Cost saving mobile calibration with ease
Samsung's Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution's intuitive UI, even non-expert users can adjust up to 5x5 video wall's white balance simultaneously without the need for additional equipment.

Enjoy continuous, long-term performance
Samsung's extreme narrow bezel video walls are engineered for long-term performance, eliminating maintenance expenses for users. The display features durable panels that offset backlight discrepancies while simultaneously protecting the display against heat and dust exposure.

Reliable content delivery for business
Designed to maintain performance in various indoor environment conditions, Samsung's video wall produces an engaging viewing experience with the elevated contrast ratios and brightness. With continuous 24/7 operations, the display enables vivid and reliable content delivery for every business need.

All-in-one box with versatile usability
Backed by a Quad Core CPU, Signage Player Box allows for multi-source switching and a media player to coexist in a single box. Leveraging the embedded Samsung SMART Signage Platform, the box transforms video walls for faster information processing and easy content management with MagicINFO solution.

Highly configurable wall mounts
The user-friendly special wall mounts ensure easy installation of video walls through minimal steps. Sized to the dimensions of the video wall, the wall mount allows users to install the mount first and fit into the video wall, eliminating tedious efforts to measure and adjust the wall mount size.

Key Features
• Extreme Narrow Bezel
• ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)

Samsung UH46N-E Features

  • Extremely narrow bezel (B-to-B 1.7mm) for a virtually seamless, life-like viewing experience
  • Superb color accuracy and brightness uniformity thanks to precise calibration and panel technology
  • Daisy Chain through use of DisplayPort (DP) 1.2 or HDMI port, eliminating the need for graphic cards
  • Highly reliable displays designed for 24/7 operation, with simple, easy-to-use special wall mount

Key Features

  • Extremely narrow bezel (B-to-B 1.7mm) for a virtually seamless, life-like viewing experience
  • Superb color accuracy and brightness uniformity thanks to precise calibration and panel technology
  • Daisy Chain through use of DisplayPort (DP) 1.2 or HDMI port, eliminating the need for graphic cards
  • Highly reliable displays designed for 24/7 operation, with simple, easy-to-use special wall mount

What's in the box:

  • UH46N-E 46 " Extreme Narrow Bezel Commercial LED Display
  • DP Cable
  • Stereo to DB9 Cable
  • Power Cord
  • Remote Controller with Batteries
  • Samsung 3 Year Limited Warranty
