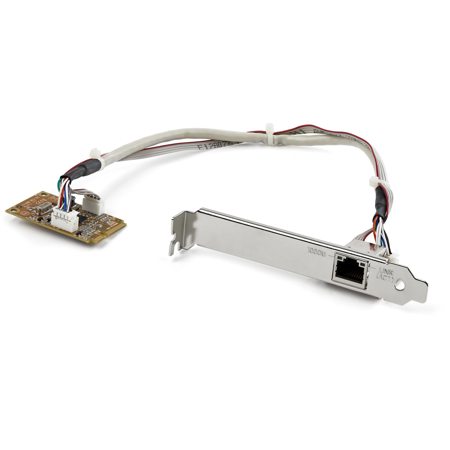

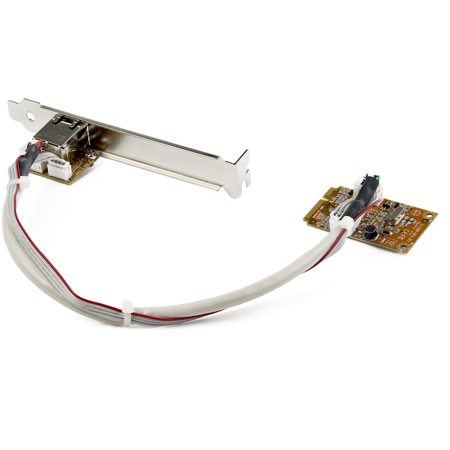

StarTech Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
StarTech NIC Card: Picture 1 thumbnail
StarTech NIC Card: Picture 2 thumbnail
StarTech NIC Card: Picture 3 thumbnail
StarTech NIC Card: Picture 4 thumbnail
StarTech NIC Card: Picture 5 thumbnail
StarTech NIC Card: Picture 6 thumbnail
See all StarTech items
Just Reduced

StarTech Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

SKU: ST1000SMPEX MFR: ST1000SMPEX
(8)Ask a Question
$66.99
Earn VIP Reward Points

Key Features

  • Upgrade your system with this Mini PCI Express Gigabit Ethernet network adapter card.
  • Enjoy reliable network connectivity with this embedded Realtek chipset NIC card solution.
  • Achieve speeds of 10/100/1000 Mbps with this gigabit Ethernet adapter for seamless use.
  • Integrate easily into small form-factor PCs using the low profile bracket included in the kit.
  • This gigabit Ethernet card supports Auto MDIX, eliminating the need for crossover cables.
  • Benefit from broad OS compatibility, including Windows, Mac OS, Unix, and Linux systems.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Calculate Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-12-27T19:00:00

Rated 1 out of 5

Does not work with Win 10 64

I purchased this on Dec 9th, 2019 for Windows 10 64 bit. I have a 300 gb IP internet speed, however, this care does not go any higher than 89 gb. Waste of money!

Valor33

2018-05-31T20:00:00

Rated 1 out of 5

only get 150 mb download

I installed and updated the driver for Windows 10 and used a CAT6 cable less than three feet from my router and only get 150 mb download. Although, on my mobile devices I get almost 500 mb.

unhappy c.

2017-03-25T20:00:00

Rated 5 out of 5

Installed this Gig Eth. card in my Linux PC and was easily recognized. Works flawlessly to connect my VM's to multiple LANs.

LinuxLover

2016-03-09T19:00:00

Rated 5 out of 5

Great upgrade!

I replaced 100mb Network cards in ten WinXP PCs with the StarTech 10/100/1000 cards, and the upgrade went great. All the drivers installed no problem, and the response time improvement on the network was exactly as I hoped - lightning fast!

mlm7751

2014-10-23T20:00:00

Rated 5 out of 5

Works With Windows Server 2003 on DELL PowerEdge

This RealTek GB NIC works great in our older DELL PowerEdge 2850 server!! We needed to replace an Intel Pro/1000 MT GB server adapter that went bad and bought another Intel GB adapter but the server would/could NOT recognize the new Intel NIC. Tried everything to remove the installed Intel NIC driver so it would take the new Intel NIC but the Intel NIC just would not be recognized - driver would not install correctly. The SOLUTION was to install the RealTek GB NIC card (non-Intel NIC). The RealTek NIC was recognized by the server upon bootup. I updated the RealTek driver that was installed by Windows Server 2003 using the CD that came with the NIC card. It worked with no problem. Am going to team two of them in the server later. Note: Make sure you update any driver installed automatically by your computer, itself, with the CD driver.

Repeat C.

2014-04-04T20:00:00

Rated 5 out of 5

Works with Win 98 Se

Installed this in my Win 98 gaming rig, Drivers installed nicely and easy. Speed is in between 100-1000 some times limited to PCI bus speed or Hard drive transfer pending what hard drive I am using, Got a slight boost on download speeds too, still a farcry away from getting my 30 mbps connection.

Zepher

2011-12-21T19:00:00

Rated 5 out of 5

Great NIC Card

Installed the card on a XPS Dimension Generation 4 desk top, easy install, and more than doubled the down load speed from 300kb/s to 700kb/s. I would highly recommend this card.

KMMF

2011-07-19T20:00:00

Rated 3 out of 5

No Idea

I purchased this product as a second port to an XPS8300 that was ordered at the same time. Unfortunately, there were no spare slots that this card would fit into so I have no idea what the performance is like. ADVICE: talk to a Dell rep to find out what spare slots are available because that type of information is no where to be found in the specifications online...

NeedsMoreInfo

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

StarTech NIC Card Specifications

  • Bus Type

    Mini PCI Express

  • Card Type

    Embedded

  • Chipset ID

    Realtek - RTL8111E

  • Industry Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

  • Interface

    RJ45 (Gigabit Ethernet)

  • Ports

    1

  • Auto MDIX

    Yes

  • Compatible Networks

    10/100/1000 Mbps

  • Full Duplex Support

    Yes

  • MTBF

    482765 Hours

  • Connector Type(s)

    1 - Mini PCI Express x1 (52 pin) Male

  • External Ports

    1 - RJ-45 Female

  • OS Compatibility

    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
    Windows Server 2012, 2008 R2, 2003(32/64)
    Mac OS 10.4.x and 10.5.x
    Unix and Linux

  • System and Cable Requirements

    Available mini PCI Express slot and expansion card slot

  • LED Indicators

    1 - Activity
    1 - Link

  • Humidity

    5% - 95% RH

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Certifications

    RoHS Complaint
    CE
    FC

  • Dimensions (H x L x W)

    0.3 x 2 x 1.2" / 0.76 x 5.08 x 3.05cm

  • Weight

    0.2oz / 5.67g

  • UPC Code

    065030846554

About StarTech NIC Card

FEATURED REVIEWS

By LinuxLover

Installed this Gig Eth. card in my Linux PC and was easily recognized. Works flawlessly to connect my VM's to multiple LANs.

Works with Win 98 Se

By Zepher

Installed this in my Win 98 gaming rig, Drivers installed nicely and easy. Speed is in between 100-1000 some times limited to PCI bus speed or Hard drive transfer pending what hard drive I am using, Got a slight boost on download speeds too, still a farcry away from getting my 30 mbps connection.

Bring high-speed connectivity to your Mini PCI Express-enabled computer system with the ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card. This robust and reliable adapter card delivers a lightning-fast 1000Mbps network connection, making it an ideal solution for Mini-ITX motherboards and other small form factor or embedded systems.

Designed with efficiency in mind, this Mini PCI Express Gigabit Adapter supports features such as NDIS5 checksum and large send offload, significantly reducing CPU utilization. It also supports Wake-on-LAN (WOL) and Remote Wake-up power management, making it a versatile choice for a wide range of networking scenarios.

The adapter card is equipped with one 10/100/1000Mbps compatible RJ-45 Ethernet port, ensuring seamless compatibility with your existing network infrastructure. It is fully compliant with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections, offering reliable and consistent performance.

With support for Jumbo Frame up to 9k, Crossover Detection & Auto-Correction (Auto MDIX), IEEE 802.1Q VLAN Tagging, and Full and Half duplex operating modes, this adapter card is ready to handle your most demanding networking needs. It also supports Microsoft NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload, further enhancing its performance and efficiency.

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card is compliant with PCI Express Mini Card specification 1.1 and includes both Full and Low Profile installation brackets, providing additional installation options for various system configurations.

Whether you're looking to add a Gigabit networking port to a small form factor Mini-ITX system, replace a failed built-in Gigabit Ethernet port, or simply enhance your system's networking capabilities, this high-quality Mini PCIe Network Adapter is a durable and efficient solution.

StarTech NIC Card Features

  • High-speed Mini PCI Express Gigabit Network Adapter Card for enhanced connectivity
  • Supports 1000Mbps network speed for efficient data transfer
  • Features NDIS5 checksum and large send offload for lower CPU utilization
  • Equipped with Wake-on-LAN (WOL) and Remote Wake-up power management
  • Fully compliant with IEEE 802.3, 802.3u, and 802.3ab specifications
  • Includes Full and Low Profile installation brackets for versatile setup options

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Upgrade your system with this Mini PCI Express Gigabit Ethernet network adapter card.
  • Enjoy reliable network connectivity with this embedded Realtek chipset NIC card solution.
  • Achieve speeds of 10/100/1000 Mbps with this gigabit Ethernet adapter for seamless use.
  • Integrate easily into small form-factor PCs using the low profile bracket included in the kit.
  • This gigabit Ethernet card supports Auto MDIX, eliminating the need for crossover cables.
  • Benefit from broad OS compatibility, including Windows, Mac OS, Unix, and Linux systems.

What's in the box:

  • StarTech Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
  • RJ45 Daughter Board
  • Low Profile Bracket
  • Driver CD
  • Instruction Manual
  • StarTech 2 Year Warranty
