StarTech USB 3.0 to SATA or IDE Hard Drive Adapter
See all StarTech items

StarTech USB 3.0 to SATA or IDE Hard Drive Adapter

SKU: STB3SSATAIDE

This item is no longer available.

Recommended Alternatives

StarTech : Picture 1 regular
StarTech 20.3" USB 3.1 Type-A 10Gbps Adapter Cable for 2.5" SATA Drives
$22.99
StarTech : Picture 1 regular
StarTech 1.8" USB 3.1 Type-C 10Gbps Adapter Cable for 2.5" SATA Drives
$29.99
StarTech : Picture 1 regular
StarTech 10m / 32.81' USB 3.0 Active Extension Cable
$125.99
StarTech : Picture 1 regular
StarTech USB 3.0 A Male to A Female Extension Cable, 24/28 AWG
$9.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-08-13T20:00:00

Rated 3 out of 5

Mix Results

I have used this device with my Windows 8.1 Laptop that says it has USB 3.0 ports. I only used a two sata drives and two or three IDE drives and never had a problem. I tried connecting to my new laptop with Windows 11 and it just crash every time I connect it. I was using IDE CD/DVD drives. My old laptop still works good with it. It still was hit or miss with the DVD drive. Some times I plugged it in and windows didn't recognize it. Then I would unplug it and plug it back in and it would work.

Tarquinius801

2021-06-26T20:00:00

Rated 1 out of 5

Not sure it works

I bought this device yesterday and tried to use it to recover data from a hard drive _SATA) that I believe has crashed. After setting it up according to the instructions, I'm getting a message that Windows does not recognize the USB device. The SATA light on the adapter is green. The USB light is red. Any advice?

NL2021

2018-10-27T20:00:00

Rated 1 out of 5

Worthless on most older / smaller drives

I have a stack of older SATA & IDE drives. Most are 500GB or less. Only 2 out of 9 detect (and I've tried verything). BOO HISS - too expensive to NOT WORK..

namyzzo

2015-01-07T19:00:00

Rated 5 out of 5

Perfect

Worked perfect. I was able to open an old drive that crashed and retrieve all my pictures and other important files.

Bull d.

2014-02-07T19:00:00

Rated 5 out of 5

WHAT A USEFUL DEVICE FOR PC REPAIRERS OR BUILDERS

I have always constructed my PCs according to what my requirements are. Over the years I had accumulated a number of old drives that I could not bring myself to throw away. I also spend a fair bit of time removing or fitting hard disk drives to meet particular requirements. I receive 'Custom PC' monthly and last month's issue contained mention of a device that would enable access to data on older IDE HDDs through the USB3 ports on newer PCs (also handling newer SATA drives as well). This adapter from Startech has, at a stroke, removed much of the hassle and fiddle when trying to utilise data from an older HDD on a newer PC. Thank you Startech a long awaited tool for all PC builders and - dare I say 'Nerds'. Great bit of kit that will see a lot of use in the future.

vonernsk

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

StarTech USB 3.0 to SATA or IDE Hard Drive Adapter Specifications

  • Bus Type

    USB 3.0

  • Chipset ID

    Innostor - IS611

  • Compatible Drive Types (Type and Rate)

    SATA & IDE

  • Drive Size

    2.5" and 3.5"

  • Interface

    SATA & IDE

  • Number of Drives

    1

  • Maximum Data Transfer Rate

    4.8 Gbps

  • Type and Rate

    USB 3.0 - 4.8 Gbit/s

  • Drive Connectors

    1x IDE (40 Pin; EIDE/PATA) Female
    1x IDE (44 Pin; EIDE/PATA; 2.5" HDD) Female
    1x LP4 (4 pin; Molex Large Drive Power) Male
    1x SATA (7 pin; Data) Female
    1x SATA Power (15 pin) Female

  • Host Connectors

    1x USB Type-A (9 pin) USB 3.0 Male

  • OS Compatibility

    OS independent; No software or drivers required

  • LED Indicators

    1x IDE Detect/Activity
    1x SATA Detect/Activity
    1x USB Link

  • Output Current

    2A

  • Humidity

    5% to 85% RH

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Enclosure Type

    Plastic

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    0.7 x 2.8 x 1.7" / 17.78 x 71.12 x 43.18mm

  • Weight

    2.2oz / 62.35g

  • UPC Code

    065030851091

About StarTech USB 3.0 to SATA or IDE Hard Drive Adapter

FEATURED REVIEWS

WHAT A USEFUL DEVICE FOR PC REPAIRERS OR BUILDERS

By vonernsk

I have always constructed my PCs according to what my requirements are. Over the years I had accumulated a number of old drives that I could not bring myself to throw away. I also spend a fair bit of time removing or fitting hard disk drives to meet particular requirements. I receive 'Custom PC' monthly and last month's issue contained mention of a device that would enable access to data on older IDE HDDs through the USB3 ports on newer PCs (also handling newer SATA drives as well). This adap...

View full Review

Perfect

By Bull d.

Worked perfect. I was able to open an old drive that crashed and retrieve all my pictures and other important files.

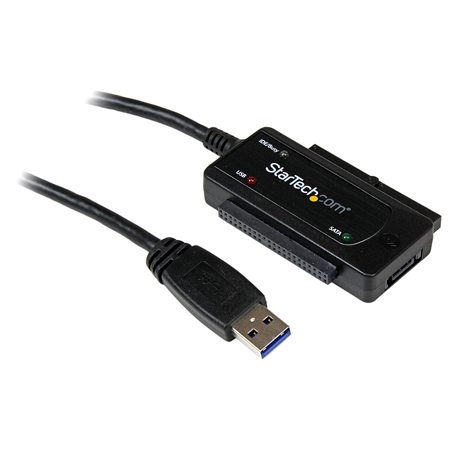

If you're seeking a durable, reliable, and high-speed solution for connecting your hard drives to your computer, look no further than our USB 3.0 to SATA or IDE Hard Drive Adapter. This efficient device is designed to seamlessly connect any standard 2.5-inch or 3.5-inch SATA or IDE hard drive to your computer via an available USB 3.0 port. It's also backward compatible with USB 2.0, ensuring versatility across different systems.

This convenient adapter allows you to connect a bare drive without the need for an enclosure or HDD dock, saving you both time and hassle. It's equipped with built-in connectors for both 2.5-inch and 3.5-inch SATA Hard Drives (HDDs), SATA Solid State Drives (SSDs), and IDE hard drives, making it a versatile tool for all your data transfer needs.

With a maximum transfer rate of 5Gbps using USB 3.0 and 480Mbps with USB 2.0, this adapter ensures high-speed data transfer for a more efficient workflow. Its compact, portable form factor makes it an ideal companion for technicians who travel and deal with many different types of hard drives.

The adapter features LED indicators that provide status and activity updates, allowing you to monitor your data transfer process with ease. It's compliant with USB specification Rev 2.0 and 3.0 and supports hot swap and plug-and-play compatibility, offering a true plug-and-play solution for adding cost-effective external storage.

This USB 3.0 to SATA or IDE Hard Drive Adapter is compatible with Windows, Linux, and Mac computers and doesn't require any software or driver installation. Whether you're a service technician needing to test or retrieve data from old hard drives, or simply looking to easily connect and access data from a 2.5-inch or 3.5-inch hard drive with USB 3.0, this adapter is the perfect solution.

StarTech USB 3.0 to SATA or IDE Hard Drive Adapter Features

  • High-speed USB 3.0 to SATA or IDE Hard Drive Adapter for efficient data transfer
  • Compatible with 2.5-inch and 3.5-inch SATA Hard Drives (HDDs), SATA Solid State Drives (SSDs), and IDE hard drives
  • Backward compatible with USB 2.0, ensuring versatile use across different systems
  • Compact, portable design ideal for technicians and regular users on the go
  • LED indicators provide real-time status and activity updates
  • Plug-and-play functionality, no software or driver installation required for Windows, Linux, and Mac computers

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-speed USB 3.0 to SATA or IDE Hard Drive Adapter for efficient data transfer
  • Backward compatible with USB 2.0, ensuring versatile use across different systems
  • Compact, portable design ideal for technicians and regular users on the go
  • LED indicators provide real-time status and activity updates

What's in the box:

  • StarTech USB 3.0 to SATA or IDE Hard Drive Adapter
  • SATA Data Cable
  • 3x Power Adapter Breakout Cable
  • Universal Power Adapter (NA/JP
  • UK
  • EU
  • AU)
  • Instruction Manual
  • StarTech 2 Year Warranty
