Questions & Answers

FAQ

What type of connectivity does the 16-Channel Portable Compact Mixing Console offer?

The console offers Bluetooth connectivity for wireless control and streaming, along with balanced mic/line connectors. It also features jack outputs for auxiliaries and control room, and phono connectors for record and playback.

Does the 16-Channel Portable Compact Mixing Console come with any additional equipment?

Yes, the console comes with a DBX Drive Rack PA2 Speaker Management System, a dbx RTA-M Reference Microphone, and two cables, providing a comprehensive audio solution.

Can I record and play back my mixes directly from the console?

Yes, the console features USB/SD card playback and recording functions, allowing you to record and play back your mixes directly.

Is the 16-Channel Portable Compact Mixing Console easy to transport?

Absolutely! Despite its robust functionality, the mixing console is ultra-compact and lightweight, making it highly portable and perfect for on-the-go audio professionals.

What kind of control does the mixer offer over the sound quality?

The mixer offers precise control over your audio output with a 3-band EQ and 2 auxiliaries on all mic and line input channels. It also features a 2-band EQ with 2 auxiliaries for both stereo channels.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Studiomaster CLUB XS KIT Specifications

  • Inputs

    16

  • Mic Inputs

    12

  • Stereo Inputs

    2

  • Mic Gain Range

    6dB to 50dB

  • Line Gain Range

    10dB to 34dB

  • EIN

    -100dB

  • Frequency Responce

    10Hz - 20kHz (+1/-3dB)

  • THD Mic Channel

    <0.1%

  • Signal to Noise Ratio

    80dB

  • Output Levels

    Max +26dB (Bal), +20dB (unBal)

  • EQ

    Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz

  • USB/SD

    MP3 Audio playback

  • Record

    To USB drive or SD card (128kbps mono)

  • DSP Effects

    16 DSP effects

  • Power Requirements

    100V - 240V

  • Dimensions (W x H x D)

    20.66 x 3.15 x 15.35" (525 x 80 x 390mm)

  • Weight

    16 lbs (7.3kg)

  • UPC Codes

    192223147539 | 5060255344392 | 691991033773 | 691991400421 | 192223075498

About Studiomaster CLUB XS KIT

Discover the power and versatility of the 16-Channel Portable Compact Mixing Console, a professional-grade audio equipment from the reputable brand, StudioMaster. This advanced mixing console is designed to cater to a wide range of audio mixing and production needs, making it an ideal choice for live performances, recording studios, and other professional audio applications.

Experience seamless audio management with its 16 inputs, offering more channels than many alternative mixers on the market. The console features Bluetooth connectivity, allowing for wireless control and streaming, and on-board DSP effects for superior sound enhancement.

The console also boasts USB/SD card playback and recording functions, providing you with the flexibility to record and play back your mixes directly from the console. It comes equipped with a 3-band EQ and 2 auxiliaries on all mic and line input channels, offering precise control over your audio output.

The mixer also features balanced mic/line connectors, compressor control, and a handy mute switch on all mic and line input channels. The 2-band EQ with 2 auxiliaries for both stereo channels further enhances your control over the sound quality.

The package includes a DBX Drive Rack PA2 Speaker Management System, a dbx RTA-M Reference Microphone, and two cables, providing you with a comprehensive audio solution. The console also features balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.

Despite its high-quality features and robust functionality, this mixing console is ultra-compact and lightweight, making it highly portable and perfect for on-the-go audio professionals. Experience the perfect blend of quality, versatility, and convenience with the 16-Channel Portable Compact Mixing Console.

Studiomaster CLUB XS KIT Features

  • 16 inputs: 12 mic channels, 2 stereo channels
  • 3 Auxiliary busses for monitoring and internal/external effects processing
  • Professional balanced outputs
  • High quality microphone pre amps with enhanced compression and gain controls and 3 band EQ on all microphone channels
  • 60mm smooth faders
  • PFL and Mute control on every channel
  • 16 in built DSP effects
  • Foot switch socket for DSP on/off control
  • Bluetooth playback connectivity
  • USB/SD media player and recorder
  • Internal power supply

Key Features

  • Get pristine sound quality with this 16-channel mixing console for clear audio.
  • Enjoy versatile EQ control for shaping your sound with high, mid, and low adjustments.
  • Record directly to a USB drive using this recording mixer, perfect for capturing live sets.
  • Minimize unwanted noise with low noise circuitry, ensuring clean, professional recordings.
  • Utilize 12 mic inputs for bands or podcasts, offering flexible connectivity options.
  • Stream audio via Bluetooth on this portable mixer, great for backing tracks or breaks.

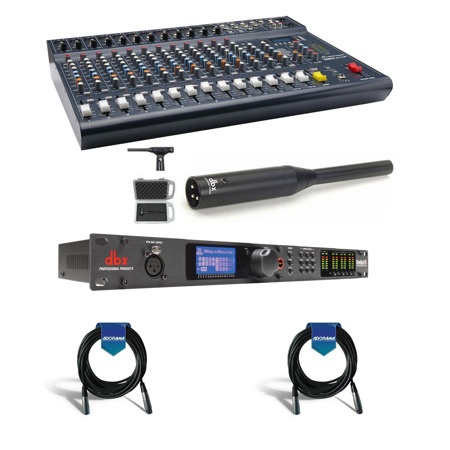

What's in the box:

  • CLUB XS 16+ 16-Channel Portable Compact Mixing Console
  • Studiomaster 1 Year Limited Warranty
  • DBX DriveRack PA2 Complete Loudspeaker Management System
  • dbx RTA-M Reference Microphone with Clip
  • 2 Pack 20' Microphone Cable
  • Male XLR to Female XLR
