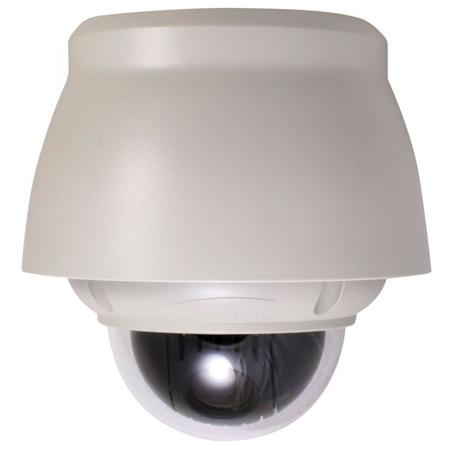

Speco Technologies CPTZ32D5W All-In-One Outdoor Analog PTZ Dome Camera, White
See all Speco Technologies items

Speco Technologies CPTZ32D5W All-In-One Outdoor Day & Night Analog PTZ Dome Camera, 3.9-85.8mm, 700TVL, 22x Optical Zoom, WDR, White

SKU: STCPTZ32D5W

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies CPTZ32D5W Specifications

  • Image Sensor

    1/4" Type Sony Super HAD CCD II

  • Resolution

    700 TV lines

  • Minimum Illumination

    Color: 0.1 lux, BW & Slow Shutter: 0.00001 lux

  • S/N Ratio

    More than 50dB

  • Video Output

    1Vp-p, 75Ohms

  • Effective Pixels

    976 (H) x 494 (V)

  • Total Pixels

    1020 (H) x 508 (V)

  • Scanning System

    2:1 interlace

  • Synchronization

    Internal / External

  • Frequency

    15.734kHz (H), 59.94Hz (V)

  • Zoom

    22x (optical)

  • Focal Length

    3.9mm (wide) - 85.8mm (tele)

  • Max. Aperture Ratio

    F1.6 (wide) - F3.7 (tele)

  • Angular Field Of View

    3.9mm - 49.5 deg. (H) / 85.8mm - 2.4 deg. (H)

  • Focus

    Auto / Manual / One Push / Constant Manual

  • Pan Range

    360 deg. endless

  • Pan Speed

    Preset: 380 deg. /sec., Manual: Max. 380 deg. /sec. (turbo)

  • Tilt Range

    0 deg. - 180 deg. (digital flip)

  • Tilt Speed

    Preset: 380 deg. /sec., Manual: Max. 300 deg. /sec. (turbo)

  • Preset Positions

    240

  • Auto Scan

    16 Auto Scans & 1 Auto Pan

  • Tour

    8

  • Pattern

    8

  • On Screen Display

    English, French, German, Italian, Spanish, Polish, Portuguese

  • Camera Title

    On / Off (6 character)

  • Day/Night

    Auto / Color / BW / Global

  • Motion Detection

    Yes

  • Wide Dynamic Range

    On / Off

  • Backlight Compensation

    BLC / HLC / Off

  • Digital Image Stabilization

    On / Off

  • Privacy Masking

    8

  • Digital Noise Reduction

    3D / 2D

  • Digital Slow Shutter

    On / Off (max. 512x)

  • White Balance

    AWB / WAWB / Indoor / Outdoor / Manual

  • Electronic Shutter Speed

    1/60 sec. - 1/100,000 sec.

  • Digital Zoom

    16x

  • AGC

    Min. / Low / Middle / High

  • Communication

    RS-485

  • Protocol

    Pelco-P, Pelco-D

  • Alarm

    4 Inputs, 1 Output (5VTTL)

  • Operating Temperature

    -22 to 122 deg. F / -30 to 50 deg. C

  • Operating Humidity

    0% - 90% RH (non-condensing)

  • Power Supply

    12VDC / 24VAC for dome, 24VAC for heater and fan (power supply not included)

  • Power Consumption

    12W for dome, 45W for heater and fan

  • Dimensions (H x Dia.)

    8.07 x 7.33" / 204.98 x 186.18mm

  • Weight

    4.85lbs / 2.20kg

  • UPC Code

    030519006729

About Speco Technologies CPTZ32D5W

• 3.9-85.8mm lens
• Max. 352x zoom (22x optical / 16x digital)
• 700 TV lines of resolution
• WDR (wide dynamic range) function
• Day/Night (ICR) function
• 3DNR (digital noise reduction) function
• DIS (digital image stabilization) function
• Includes built-in heater and fan
• Features a sun-shielded housing
• 240 preset positions
• 4 alarm inputs / 1 alarm output (5VTTL)
• Variable speed from 0.1 deg /sec. 380 deg /sec.
• 180 deg digital flip
• IP66 compliant
• 1 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies CPTZ32D5W All-In-One Outdoor Day & Night Analog PTZ Dome Camera
  • Accessory Kit & Connector
  • Instruction Manual
  • Speco Technologies 1 Year Limited Warranty
