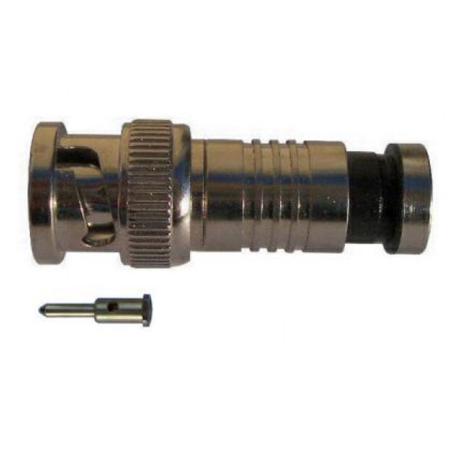

Securitytronix BNC Compression Connector for RG-59 Coaxial Cable, 2 Piece

SKU: STCTBNC59C

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Securitytronix Connector Specifications

  • Compatibility

    RG-59 Coaxial Cable

  • Package quantity

    2 Piece

  • Frequency Range

    0 - 3000MHz

  • Insertion Loss

    <0.3dB at 1000MHz
    <0.5dB at 3000MHz

  • Return Loss

    >30dB at 1000MHz, >20dB at 3000MHz

  • Insulation Resistance

    >5,000 MX 100 VDC

  • Cable Interface

    > 55 lbs pull force

  • Moisture Migration

    Exceeds SCTE IPS-TP-013

  • Voltage Standing Wave Ration (V.S.W.R.)

    1.5 at 1000MHz
    1.3 at 3000MHz

  • Temperature Cycling with Humidity

    +70 deg. F to +140 deg. F to -40 deg. F

About Securitytronix Connector

The Securitytronix BNC compression connector is designed with the CCTV market in mind. Throughout the years, we have seen countless service calls that resulted in the simple replacement of a twist-on or hex crimp BNC connector that had lost it's connectivity. These service calls are costly and they do not promote forward progress in any business, especially if the job is under a service contract. The CT-BNC59C provide the advantages of waterproofing, cable signal ingress/egress elimination and connection reliability over other connector products. Compression style connectors are the wave of the future providing a true 360 degree seal between the connector and cable.

Aside from eliminating the opportunity for moisture to leak into the connection this seal keeps your signal inside the cable and keeps unwanted signals from entering your system through openings in the connection. The CT-BNC59C has designed to be aggressively priced to offer value to installers in the security, cable TV, satellite TV and home entertainment markets. Aside from their aggressive pricing, we feel that the real savings is found in the quality. Although the CT-BNC59C was designed around the specifications of the Securitytronix line of RG-59 security cables, they will work with most major market brands of quality RG-59 cables.
