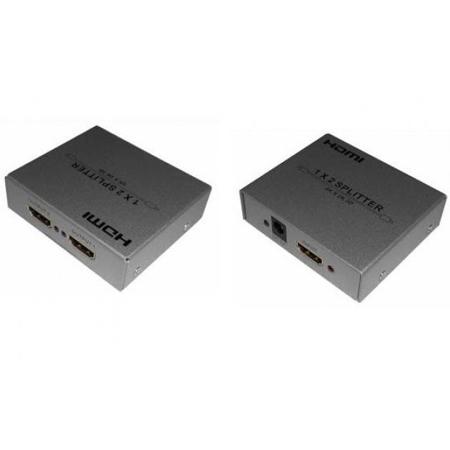

Securitytronix Miniature 1x2 HD Splitter/Amplifier
See all Securitytronix items

Securitytronix Miniature 1x2 HD Splitter/Amplifier

SKU: STCTHDM1X2SP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix CT-HDVD-MINI1X2SPL Specifications

  • Input DDC Signal

    5 Volts p-p (TTL)

  • Maximum Single Link Range

    4K x 2K

  • Output Video

    Full 3D and 4K x 2K

  • Vertical Frequency Range

    50/60Hz

  • Video Amplifier Bandwidth

    2.97 Gbps

  • Interlaced (50 & 60 Hz)

    480i, 576i, 1080i

  • Progressive (50 & 60 Hz)

    480p, 576p, 720p, 1080p, 4K x 2K

  • External Power Supply

    5VDC at 1A (included)

  • Power Consumption

    5W

  • Regulatory Approvals (power supply)

    UL, CE, FCC

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Operating Humidity

    20% to 90% Relative Humidity (no condensation)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Storage Humidity

    5% to 90% Relative Humidity (no condensation)

  • Dimensions (WxDxH)

    2.75 x 2.375 x 0.75" (6.99 x 6.03 x 1.91cm)

  • Weight

    4.4 oz (124.74g)

About Securitytronix CT-HDVD-MINI1X2SPL

The CT-HDVD-MINI1X2SPL is a small, practical HDMI splitter used to distribute a single HDMI signal to two identical HDMI outputs simultaneously. This unit supports full 3D format and 4K x 2K. Its video amplifier bandwidth can process up to 3.4 Gbps / 340 Mhz. The CT-HDVD-MINI1X2SPL can be connected in series (cascaded) to achieve long distance transmission of HD signals of more than 15 meters. When two or more CT-HDVD-MINI1X2SPL are cascaded, they can be used to create a larger distribution. The CT-HDVD-MINI1X2SPL is perfect for HDTV retail displays, trade shows, projector displays, conference room presentations, schools, corporate training centers and high end residential applications.

Securitytronix CT-HDVD-MINI1X2SPL Features

  • Splits 1 HD Input to 2 HD outputs
  • Identical signal quality on both outputs
  • Multiple units can be cascaded to provide more outputs
  • Supports full 3D and 4K x 2K resolution
  • 340 MHz / 34 Gbps per channel, (10.2 Gbps all channels) bandwidth
  • 12 bits per channel (36 bits all chs) deep color
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS HD and Dolby True HD)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix CT-HDVD-MINI1X2SPL Miniature 1x2 HD Splitter/Amplifier
  • 5V DC Power Supply
  • User manual
  • Securitytronix 1 Year Warranty
