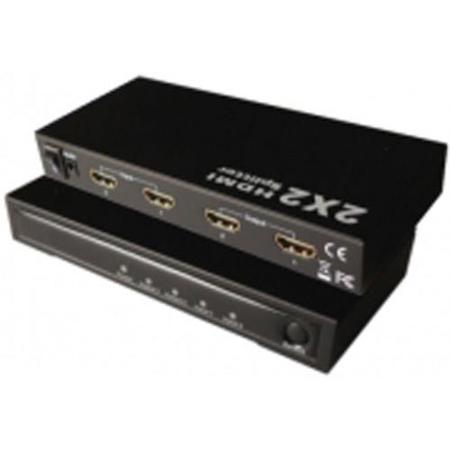

Securitytronix 2x2 HDMI Powered Splitter/Amplifier
See all Securitytronix items

Securitytronix 2x2 HDMI Powered Splitter/Amplifier

SKU: STCTHDVD2X2S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix Splitter/Amplifier Specifications

  • Input DDC Signal

    5 Volts P-P (TTL)

  • Maximum Single Link Range

    1920 x 1080p

  • Output Video

    HDMI 1.3b+ HDCP 1.0/1.1

  • Vertical Frequency Range

    50/60Hz

  • Video Amplifier Bandwidth

    2.25Gbps / 225MHz

  • Resolutions (HDTV)

    Interlaced (50 & 60Hz): 480i, 576i, 1080i
    Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p

  • External Power Supply

    5VDC at 2A

  • Power Consumption

    8W (max)

  • Regulatory Approvals

    Converter Unit: FCC, CE, UL
    Power Supply: UL, CE, FCC

  • Operating Temperature

    32 to 158 deg. F (0 to 70 deg. C)

  • Operating Humidity

    10% to 80% RH (no condensation)

  • Storage Temperature

    14 to 176 deg. F (-10 to 80 deg. C)

  • Storage Humidity

    5% to 90% RH (no condensation)

  • Dimensions (LxWxH)

    6.1 x 2.76 x 0.91" (15.49 x 7.01 x 2.31cm)

  • Weight

    0.57 lbs (0.26kg)

About Securitytronix Splitter/Amplifier

The CT-HDVD-2X2SPL HD amplifier splitter allows two HD devices to be switched easily into two HDTV monitors or projectors. Simply connect your HDTV displays to the splitter's display outputs and enjoy the ability to switch either of the two HD inputs to either or both of the two HD outputs. The CT-HDVD-2X2SPL splitter can also be placed at the end of a long HD cable to regenerate the HD signal.

• Easy to use, sets up in seconds
• Either of the two inputs can output to either or both of the two outputs
• Supports up to version 1.3b
• Supports resolutions up to 1080p
• Supports 225MHz / 2.25Gbps per channel (6.75Gbps all channels) bandwidth
• Supports 12 bit per channel (36 bit all channels) deep color
• Supports HDCP
• Supports uncompressed audio such as LPCM
• Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

The CT-HDVD-1X2SPL is perfect for HDTV retail displays, trade shows, projector displays, conference room presentations, schools, corporate training centers and high end residential applications.

Securitytronix Splitter/Amplifier Features

  • Easy to use, sets up in seconds
  • Either of the two inputs can output to either or both of the two outputs
  • Supports up to version 1.3b
  • Supports resolutions up to 1080p
  • Supports 225MHz / 2.25Gbps per channel (6.75Gbps all channels) bandwidth
  • Supports 12 bit per channel (36 bit all channels) deep color
  • Supports HDCP
  • Supports uncompressed audio such as LPCM
  • Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix 2x2 HDMI Powered Splitter/Amplifier
  • 5V DC Power Supply
  • User Manual
  • Securitytronix Warranty
