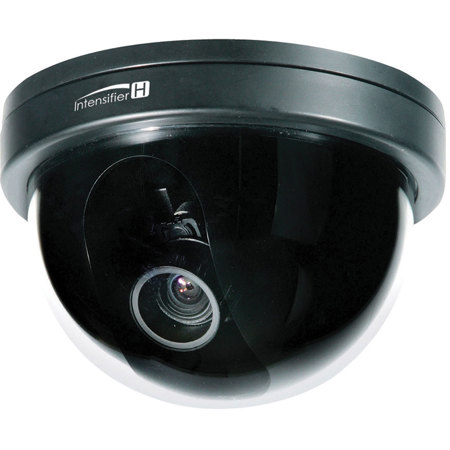

Speco Technologies Intensifier H Series CVC6246H 960H Indoor Dome Camera, Black
See all Speco Technologies items

Speco Technologies Intensifier H Series CVC6246H 960H Indoor Dome Camera, 2.8-12mm Auto Iris Varifocal Lens, 700 TVL, Black

SKU: STCVC6246H
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies CVC6246H Specifications

  • Lens

    2.8-12mm Auto Iris Varifocal Lens

  • Image Sensor

    1/3" Sony Super HAD CCD

  • Resolution

    700 TV lines

  • Minimum Illumination

    CDS Off: 0.15 lux, CDS On: 0.00002 lux

  • Effective Pixels

    976 (H) x 494 (V)

  • Total Pixels

    1020 (H) x 508 (V)

  • TV System

    NTSC

  • Scanning Frequency

    15.734kHz (H) & 59.94Hz (V)

  • Scanning System

    2:1 interlace

  • Synchronization

    Internal

  • S/N Ratio

    50dB

  • Video Output

    CVBS: 1.0Vp-p / 75Ohms

  • Electronic Shutter Speed

    1/60 sec. - 1/120,000 sec.

  • OSD

    Available

  • DWDR

    On / Off (level adjustable)

  • Backlight Compensation

    BLC / HLC / Off

  • Day/Night

    Color / BW / Auto / Ext

  • AGC

    Level adjustable

  • White Balance

    ATW / Push / Manual

  • Intensify

    Auto / Off (selectable x2 - x512)

  • Motion Detection

    On / Off (4 programmable zones)

  • Privacy Masking

    On / Off (8 programmable zones)

  • Speco DNR

    High / Med / Low / Off

  • Sharpness

    On / Off (level adjustable)

  • Mirror

    On / Off

  • Power Supply

    12VDC / 24VAC dual voltage operation (power supply not included)

  • Power Consumption

    12VDC, 150mA / 24VAC, 2W

  • Operating Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Dimensions (H x Dia.)

    3.82 x 5.47" / 9.70 x 13.89cm

  • Weight

    1.54lbs / 0.70kg

  • UPC Code

    030519007924

About Speco Technologies CVC6246H

• 2.8-12mm auto iris varifocal lens
• 1/3" Sony Super HAD CCD
• 700 lines of color resolution
• Amplify existing light with no distance limitations
• No problems caused by objects that reflect or absorb IR light sources
• Minimum illumination 0.00002 lux (Intensify at 512x)
• With presets: Outdoor, Indoor, Elevator, Lobby, Hallway & Dark
• 12VDC / 24VAC dual voltage operation
• Full OSD operation
• 3-axis wall or ceiling mount
• Relay outputs for motion detection
• 5 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies Intensifier H Series CVC6246H 960H Indoor Dome Camera
  • Speco Technologies 5 Year Limited Warranty
