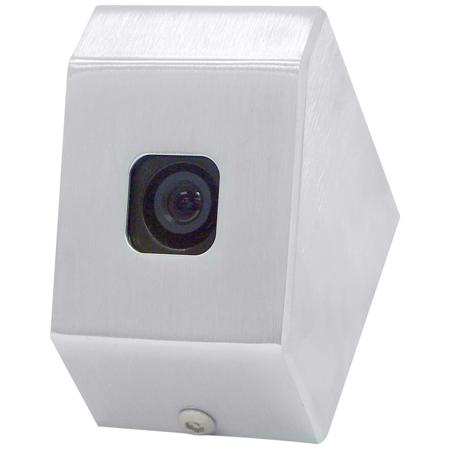

Speco Technologies CVC695AM 700 TVL Angle Mount Outdoor Color Camera, 3.6mm Lens
See all Speco Technologies items

Speco Technologies CVC695AM 700 TVL Angle Mount Outdoor Analog Color Camera with 3.6mm Lens, Weather & Tamper-Resistant

SKU: STCVC695AM

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies CVC695AM Specifications

  • Image Sensor

    1/3" Sony Super HAD II color CCD

  • Resolution

    700 TVL

  • Minimum Illumination

    0.001 lux (Sens-up)

  • Effective Pixels (H x V)

    976 x 494

  • Electronic Shutter Speed

    Auto: 1/60 to 1/100,000 sec

  • Viewing Angle

    Horizontal: 77 deg., Vertical: 53 deg.

  • S/N Ratio

    > 52 dB

  • Lens

    3.6mm fixed

  • Video Output

    1.0 Vpp / 75 Ohms

  • Scanning Frequency

    H: 15.75 kHz / V: 60 Hz

  • Power Consumption

    210 mA

  • Output

    Video: BNC, Power: DC jack

  • Power Supply

    12 VDC (UL and CSA listed power supply included)

  • Operating Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Housing Material

    18-gauge stainless steel

  • Operating Humidity

    Within 95% RH

  • Dimensions (L x W x H)

    2.50 x 2.25 x 2.75" / 6.35 x 5.72 x 6.99cm

  • Weight

    6.8oz / 192.78g

  • UPC Code

    030519656955

About Speco Technologies CVC695AM

• 3.6mm wide angle lens
• 700 TV lines of resolution
• Weather/tamper resistant cover
• Features a 3.6mm wide angle lens that views at a downward angle of 38deg.
• Includes tamper resistant screw for vandal resistant mounting
• 5 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies CVC695AM 700 TVL Angle Mount Outdoor Analog Color Camera with 3.6mm Lens
  • Tamper Resistant Screw
  • Power Supply
  • Speco Technologies 5 Year Limited Warranty
