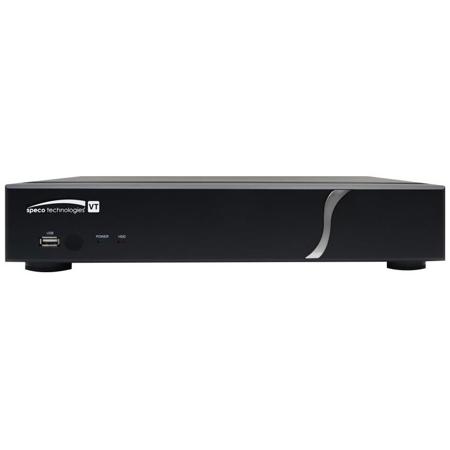

Speco Technologies VT Series 16 Channel H.264 1080p HD-TVI DVR with 2TB HDD

SKU: STD16VT2TB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Are the cameras rotatable ?ANDREW R : This unit does NOT include any cameras
Shopper : Are the inputs for this dvr coax fittings or Ethernet ?ANDREW R : Not specified, however I believe that they are either coax (BNC) or RCA style. The manual is unclear.
Shopper : Why Did You Choose This?Khadije c : Nice 👌 and work very good 👍

Reviews about this item

Review Summary

Speco Technologies D16VT Specifications

  • Video: Input Channel

    16

  • Video: Signal Distance

    Up to 1600 feet (depending on coax quality)

  • Video: Input Level

    Composite 1.0Vp-p / 75Ohms

  • Video: Input Signal Format

    NTSC / PAL

  • Video: Input Loss Check

    Yes

  • Video: HDMI Output

    1x HDMI (1024x768, 1280x720, 1280x1024, 1920x1080)

  • Video: VGA Output

    1x VGA (1024x768, 1280x720, 1280x1024, 1920x1080)

  • Video: CVBS / Spot Output

    1 main or 1 spot

  • Audio: Input

    4 line

  • Audio: Output

    1 line

  • Audio: Codec

    G.711

  • Serial

    1x RS-485
    1x PTZ

  • Recording Compression

    H.264

  • Recording Multi-Operation

    QUADPLEX (play, record, network, backup)

  • Recording Resolution

    1080p TVI at 240 fps, 720p TVI at 480 fps, and 960H Analog at 480 fps

  • Recording Mode

    Continuous / Schedule / Motion / Sensor / Manual / Continuous + Motion / Continuous + Sensor

  • Motion Detection

    Motion detection setup by grid

  • Recording by Channel's Resolution

    Yes

  • Pre-Recording

    Max. 20 minutes

  • Post Recording

    Max. 60 seconds

  • Playback: Multi-Decoding

    1, 4, 9, 16

  • Playback: Search Mode

    EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log

  • Interface Type

    Serial ATA

  • Capacity of 1 HDD

    4TB

  • Internal HDD Number

    2

  • Preinstalled HDD

    2TB

  • Backup: USB Flash Drive

    Video & Still Image

  • Backup: USB External HDD

    Video & Still Image

  • Backup: Network

    Video & Still Image

  • USB Port

    1 front, 1 rear

  • User I/F: Menu Display

    GUI

  • User I/F: Input Method

    IR, Mouse, Keyboard Controller

  • Interface

    10/100/1000Base-T

  • Streaming

    CIF 15fps / channel max.

  • Mobile Viewer

    Live, Search, PTZ, 2-Way Audio

  • PC Web Viewer

    Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)

  • PC Client

    SpecoTech Multi-Client Viewer and SecureGuard Plus CMS (Live, Search, Backup, PTZ, Remote Setup)

  • MAC Client

    Speco Client for MAC and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)

  • Digital Deterrent

    Default + up to 8 custom audio files

  • Digital Zoom

    Yes

  • DLS (Daylight Savings)

    Yes

  • EZ Record

    Yes

  • S.M.A.R.T

    Yes

  • Internal Beep

    By video loss, HDD error

  • Multi-Language

    English / Spanish / French

  • Dynamic DNS

    Yes (free Speco DDNS)

  • SW Upgrade

    USB and remote software upgrade

  • Email Notification

    Yes

  • NTP (Network Time Protocol)

    Yes

  • Power Supply Voltage

    12VDC, 5A

  • Allowable Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Allowable Storage Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Allowable Operating Humidity

    20 - 80% RH

  • Dimensions (W x H x D)

    13.4 x 2.48 x 10.31" / 340.36 x 62.99 x 261.87mm

  • UPC Code

    030519010214

About Speco Technologies D16VT

EZ Wizards:
• Setup: for quick system setup
• Network: network setup and port forwarding
• Record: quickly setup recording resolutions and recording type

EZ Search:
Quickly search events from thumbnails

EZ Copy:
Auto copy what you are playing onto a USB flash drive

• 1080p at 15fps / 720p at 30fps over coax (HD-TVI)
• Backwards compatible with all analog cameras
• UTC function allows for zoom/focus and OSD control over coax
• Signal distance up to 1600 feet
• Video Out: 1 HDMI, 1 VGA, 1 CVBS
• H.264 video compression
• Networkable DVR with free Speco DDNS server
• Digital Deterrent supports up to 8 audio files for triggering during sensor or motion detection
• 2-way audio communication
• Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
• 4 channel audio recording
• Covert camera operation provides enhanced security and administrator control
• Password to secure installation authorization
• Switch between low and high quality stream during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization
• Smart (Museum) Search - Quickly search for a specific video event without the need for motion setup.
• Easy firmware upgrade by USB port or network
• Instant and convenient backup via USB flash drive or network
• Supports multiple PC based browsers such as Internet Explorer, Google Chrome, Firefox and Safari
• Simultaneous playback/record while continuing to network transfer or backup
• User Access: up to 4 concurrent users for live viewing, 1 user for playback
• Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via internet
• Network accessible via SpecoTech Multi-Client Software, SecureGuard Plus, Web-Viewer and Speco Player Mobile Viewer
• PC and MAC compatible
• IR remote control and mouse included
• Digital watermarking
• 3 year warranty

What's in the box:

  • Speco Technologies VT Series 16 Channel H.264 1080p HD-TVI DVR with 2TB HDD
  • Remote Control
  • 1.5V Battery (AAA x 2EA)
  • Quick Start Guide & Quick User Guide
  • Mouse
  • Software & Manual CD
  • Adaptor (DC12V 5A)
  • Power Cable (110V or 220V)
  • Audio Cable
  • Speco Technologies 3 Year Limited Warranty
