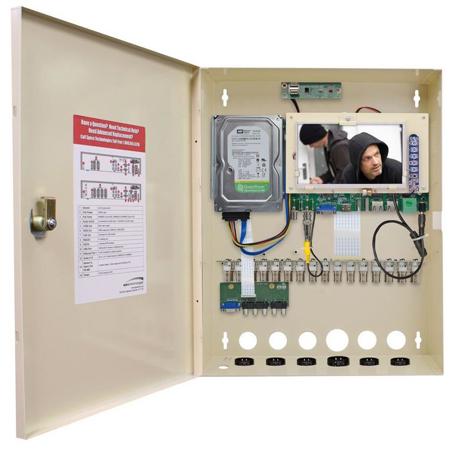

Speco Technologies 16CH Wall Mount Hybrid DVR with Monitor & 4TB HDD
See all Speco Technologies items

Speco Technologies HS Series 16 Channel Wall Mount Hybrid DVR with Built-In Monitor, 4TB HDD, Looping Outputs, Real-Time Recording, Digital Deterrent

SKU: STD16WHSM4TB
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies D16WHS Specifications

  • Video: Input Channel

    IP: Up to 16
    Analog: Up to 16

  • Video: HDMI Output

    1x HDMI (1280x720 / 1920x1080)

  • Video: VGA Output

    1x VGA (1280x720 / 1920x1080)

  • Video: CVBS Output

    1 Main

  • Video: Spot Output

    1 (Analog channels only)

  • Video: Loopout

    16 (Analog channels only)

  • Audio: Input

    16 line input, 16 IP input

  • Audio: Local Output (RCA)

    1

  • Audio: Codec

    G.711

  • Alarm: Sensor Input

    Local Input: 4
    Remote Input from IP Camera: 16

  • Alarm: Output

    1

  • Serial Interface

    RS-232C: Debugging only
    RS-485: PTZ

  • Recording Compression

    H.264 (baseline, main, high profile)

  • Recording Resolution: IP

    2592x1944 (5MP) : Channel 1
    1920x1080 (1080p): 480fps
    1280x720 (720p): 480fps

  • Recording Resolution: Analog

    960H (480fps), D1 (480fps), CIF (480fps)

  • Recording Quality Grade (Analog Only)

    5 levels

  • Recording Mode

    Continuous / Motion / Sensor / Schedule / Manual / Continuous + Sensor / Continuous + Motion

  • Pre-Recording

    Max. 20 minutes

  • Post Recording

    Max. 60 seconds

  • Playback: Search

    EZ Search, Date/Time, Event, Archive, Log

  • Playback: Multi-Decoding

    1, 4, 9, 16

  • Playback: Speed

    x0.25, x0.5, x2, x4, x8, x16, x32, x64

  • Backup: Media

    USB Drive, External HDD, Network

  • Backup: Format

    BMP, AVI, Proprietary Format

  • Large Backup

    Yes (max. 24 hours)

  • Capacity of 1 HDD

    4TB

  • Internal HDDs

    2

  • Preinstalled HDD

    4TB

  • Interface Type

    e-SATA

  • USB Port

    2 front, 1 rear

  • User I/F: Menu Display

    GUI

  • User I/F: Input Method

    IR, Mouse, Keyboard Controller

  • Interface

    Dual Network Ports 10/100/1000Base-T

  • Streaming: IP Channel

    Depends on profile

  • Streaming: Analog Channel

    CIF at 30fps/channel

  • Dual Encoding for Network

    Yes

  • Max. Throughput

    40 Mbps

  • Mobile Viewer

    Speco Player (Live, Search, PTZ, 2-Way Audio)

  • PC Web Viewer

    IE, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)

  • PC Client

    SpecoTech Multi-Client Viewer and SecureGuard CMS

  • Digital Deterrent

    Default + up to 8 audio files

  • Digital Zoom

    Yes

  • DLS (Daylight Savings)

    Yes

  • EZ Record

    Yes

  • S.M.A.R.T

    Yes

  • Internal Beep

    Yes

  • Multi-Language

    Yes

  • Dynamic DNS

    Yes (free Speco DDNS)

  • SW Upgrade

    USB and remote software upgrade

  • Email Notification

    Yes

  • NTP (Network Time Protocol)

    Yes

  • Power Supply Voltage

    12VDC, 5A

  • Allowable Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Allowable Storage Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Allowable Operating Humidity

    20% - 80% RH (non-condensing)

  • Dimensions (W x H x D)

    13.5 x 17 x 3.5" / 34.29 x 43.18 x 8.89cm

  • UPC Code

    030519010481

About Speco Technologies D16WHS

EZ Wizards
• Camera: quickly discovers and installs IP cameras
• Setup: for quick system setup
• Network: network setup and port forwarding
• Record: quickly setup recording resolutions and recording type

EZ Search
Quickly search events from thumbnails

EZ Copy
Auto copy what you are playing onto a USB flash drive

• Video Out: 1 HDMI, 1 VGA, 1 CVBS, 1 Spot
• A patented DVR solution that easily mounts in equipment closets or electrical rooms for covert installations
• Real-time recording rate at 30fps/channel for analog channels at 960H and IP channels at Full HD (1920x1080)
• Up to 5MP resolution on channel 1
• Plug & play feature with Speco's OnSIP/VIP/ZIP cameras
• ONVIF support
• Dual network ports for isolating IP camera network and remote network traffic
• Each channel is configurable for either IP or analog
• H.264 video compression
• Networkable hybrid DVR with free Speco DDNS server
• Digital Deterrent for triggering audio message via motion detection or sensor
• 2-way audio communication
• Programmable recording on motion detection, sensor, schedule, continuous and manual
• Supports wireless access point for viewing and configuration
• Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
• Switch between low and high quality stream during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization
• Easy firmware upgrade by USB port or network
• User Access: up to 4 concurrent users
• Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via internet
• Network software supports Static IP, DHCP and DDNS
• Network accessible via SpecoTech Multi-Client Software, SecureGuard Plus CMS, Internet Explorer Web-Viewer and Speco Player Mobile Viewer
• PC and MAC compatible
• IR remote control & mouse included
• Rack mountable (hardware included)
• 3 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies HS Series 16 Channel 5MP IP & 960H Analog Wall Mount Hybrid DVR with Built-In Monitor and 6TB HDD
  • IR Remote Control
  • Mouse
  • Rack Mount
  • Speco Technologies 3 Year Limited Warranty
