Speco Technologies VT Series 4 Channel H.264 1080p HD-TVI DVR with 2TB HDD
See all Speco Technologies items

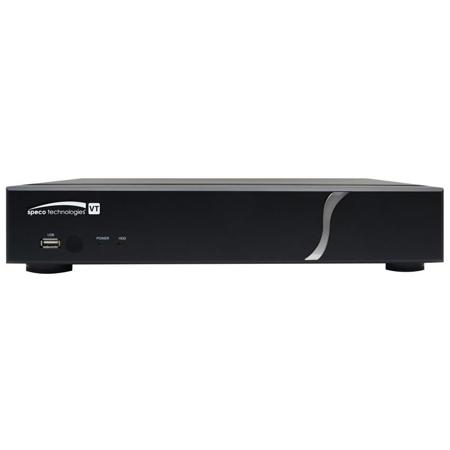

Speco Technologies VT Series 4 Channel H.264 1080p HD-TVI DVR with 2TB HDD

SKU: STD4VT2TB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

calvin b : Can the cvc-627w video and power cable be cut an reconnected, ?ANDREW R : Not specified. I'd recommend inquiring with the manufacturer.

Reviews about this item

Review Summary

2018-08-09T06:33:13

Rated 4 out of 5

replacement for old dvr

Easy plug and play up and running in no time. Time constraints' are a little more difficult. Still waiting to setup recording parameters.

ronald d.

2016-06-20T18:34:57

Rated 3 out of 5

Complex set up but best DVR than others in this class

Had a difficult time setting up Web interface, Multi Site software and mobile view app. No instructions for port forwarding. Had to guess on correct protocols to use UDP/TCP. The default username and password given int he manual did not work for the web interface. The software installed but was difficult to figure out how to add a site. Turns out it's a little itty bitty button that has no text next to it. Its not the OBVIOUS "set up" button. No instructions for DDNS set up on the mobile apps. The iOS is more difficult to set up than the Android but I eventually got them both working. Web interface will not work with he Chrome Browser. I could only get it to work with FireFox and IE. Whole process took over 3 hours to figure out, guess, and play with setting before everything was up and running. WAY TOO LONG. With all that, it's still the best and most functional DVR in it's price class and I would recommend over others that I've installed in the past. No need to shop around in this price range. Get this one from Speco and power through all the guess work on the setup and you will be happy in the end.

Steven J.

Speco Technologies D4VT Specifications

  • Video: Input Channel

    4

  • Video: Signal Distance

    Up to 1600 feet (depending on coax quality)

  • Video: Input Level

    Composite 1.0Vp-p / 75Ohms

  • Video: Input Signal Format

    NTSC / PAL

  • Video: Input Loss Check

    Yes

  • Video: HDMI Output

    1x HDMI (1024x768, 1280x720, 1280x1024, 1920x1080)

  • Video: VGA Output

    1x VGA (1024x768, 1280x720, 1280x1024, 1920x1080)

  • Video: CVBS / Spot Output

    1 main or 1 spot

  • Audio: Input

    4 line

  • Audio: Output

    1 line

  • Audio: Codec

    G.711

  • Serial

    1x RS-485
    1x PTZ

  • Recording Compression

    H.264

  • Recording Multi-Operation

    QUADPLEX (play, record, network, backup)

  • Recording Resolution

    1080p TVI at 60 fps, 720p TVI at 120 fps, and 960H Analog at 120 fps

  • Recording Mode

    Continuous / Schedule / Motion / Sensor / Manual / Continuous + Motion / Continuous + Sensor

  • Motion Detection

    Motion detection setup by grid

  • Recording by Channel's Resolution

    Yes

  • Pre-Recording

    Max. 20 minutes

  • Post Recording

    Max. 60 seconds

  • Playback: Multi-Decoding

    1, 4

  • Playback: Search Mode

    EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log

  • Interface Type

    Serial ATA

  • Capacity of 1 HDD

    4TB

  • Internal HDD Number

    2

  • Preinstalled HDD

    2TB

  • Backup: USB Flash Drive

    Video & Still Image

  • Backup: USB External HDD

    Video & Still Image

  • Backup: Network

    Video & Still Image

  • USB Port

    1 front, 1 rear

  • User I/F: Menu Display

    GUI

  • User I/F: Input Method

    IR, Mouse, Keyboard Controller

  • Interface

    10/100Base-T

  • Streaming

    CIF 15fps / channel max.

  • Mobile Viewer

    Live, Search, PTZ, 2-Way Audio

  • PC Web Viewer

    Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)

  • PC Client

    SpecoTech Multi-Client Viewer and SecureGuard Plus CMS (Live, Search, Backup, PTZ, Remote Setup)

  • MAC Client

    Speco Client for MAC and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)

  • Digital Deterrent

    Default + up to 8 custom audio files

  • Digital Zoom

    Yes

  • DLS (Daylight Savings)

    Yes

  • EZ Record

    Yes

  • S.M.A.R.T

    Yes

  • Internal Beep

    By video loss, HDD error

  • Multi-Language

    English / Spanish / French

  • Dynamic DNS

    Yes (free Speco DDNS)

  • SW Upgrade

    USB and remote software upgrade

  • Email Notification

    Yes

  • NTP (Network Time Protocol)

    Yes

  • Power Supply Voltage

    12VDC, 3A

  • Allowable Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Allowable Storage Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Allowable Operating Humidity

    20 - 80% RH

  • Dimensions (W x H x D)

    13.4 x 2.48 x 10.31" / 340.36 x 62.99 x 261.87mm

  • UPC Code

    030519007764

About Speco Technologies D4VT

EZ Wizards:
• Setup: for quick system setup
• Network: network setup and port forwarding
• Record: quickly setup recording resolutions and recording type

EZ Search:
Quickly search events from thumbnails

EZ Copy:
Auto copy what you are playing onto a USB flash drive

• 1080p at 15fps / 720p at 30fps over coax (HD-TVI)
• Backwards compatible with all analog cameras
• UTC function allows for zoom/focus and OSD control over coax
• Signal distance up to 1600 feet
• Video Out: 1 HDMI, 1 VGA, 1 CVBS
• H.264 video compression
• Networkable DVR with free Speco DDNS server
• Digital Deterrent supports up to 8 audio files for triggering during sensor or motion detection
• 2-way audio communication
• Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
• 4 channel audio recording
• Covert camera operation provides enhanced security and administrator control
• Password to secure installation authorization
• Switch between low and high quality stream during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization
• Smart (Museum) Search - Quickly search for a specific video event without the need for motion setup.
• Easy firmware upgrade by USB port or network
• Instant and convenient backup via USB flash drive or network
• Supports multiple PC based browsers such as Internet Explorer, Google Chrome, Firefox and Safari
• Simultaneous playback/record while continuing to network transfer or backup
• User Access: up to 4 concurrent users for live viewing, 1 user for playback
• Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via internet
• Network accessible via SpecoTech Multi-Client Software, SecureGuard Plus, Web-Viewer and Speco Player Mobile Viewer
• PC and MAC compatible
• IR remote control and mouse included
• Digital watermarking
• 3 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies VT Series 4 Channel H.264 1080p HD-TVI DVR with 2TB HDD
  • Remote Control
  • 1.5V Battery (AAA x 2EA)
  • Quick Start Guide & Quick User Guide
  • Mouse
  • Software & Manual CD
  • Adaptor (DC12V 3A)
  • Power Cable (110V or 220V)
  • Speco Technologies 3 Year Limited Warranty
