23% Off

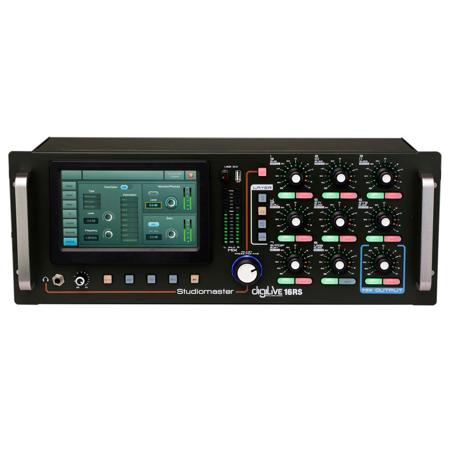

Studiomaster digiLivE 16 RS 16-Channel Rack-Mount Digital Mixing Console, 7" Touch Screen

SKU: STDLIVE16RS MFR: DIGILIVE16RS
Earn VIP Reward Points

Key Features

  • Get pristine sound quality with this 16-channel digital mixing console for live performances.
  • Enjoy flexible EQ control with fully adjustable parameters, perfect for shaping your sound.
  • Seamlessly record and playback via dual USB interface, making production workflow easy.
  • The Studiomaster mixer's low noise ensures clean, professional audio for any recording setup.
  • Rack-mountable design ensures durability and easy integration into your existing setup.
  • Use the intuitive 7" touch screen and remote iPad app for complete control over your mix.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Studiomaster digiLivE 16 RS Specifications

  • Mic Inputs

    12 (8x XLR / 4x Combo XLR)

  • Stereo Inputs

    2

  • Master Output

    2 (Left/Right balanced XLR)

  • Smart Outputs

    6 (assignable balanced XLR)

  • Internal busses

    16

  • Stage monitor

    1 TRS Jack output

  • Headphone

    1 TRS Jack output

  • Screen

    7" high definition touch screen

  • Operation system

    Android system

  • Remote system

    IOS app for Ipad

  • Network

    Yes, via WiFi module

  • Sample Frequency

    48 KHz

  • AD/DA

    192 KHz, 24-bit

  • DSP

    40 bit float point, SHARC processor

  • Effects

    up to 8 assignable effect modules

  • AES/EBU

    Output XLR

  • S/PDIF

    Input / Output (RCA Phono)

  • USB Interface

    2 for playback/recording, scene/setting storage and system updates

  • Power Supply

    90-240V - 50/60Hz IEC power supply

  • UPC Code

    5060255343654

About Studiomaster digiLivE 16 RS

The digiLivE 16RS compact rack mountable black box versions of the 16 console, even more compact, these models still utilise the full potential of our digital mixer expertise, including digital input gain with full led rotary controls. Retaining the unique and intuitive 7" touchscreen interface, 16 inputs, 16 internal busses.

Advanced hybrid user interface
Intelligent user interface
• simple to use 7" touch screen with clear informative graphics
• clear visual representation of all channels and mixer settings
• use touch screen or encoder to adjust any setting
• 100mm motorised faders, with one touch layer selection
• solo, mute and channel select buttons for each channel

Advanced algorithms
• 4 Band fully parametric EQ
• each band adjustable between 20Hz and 20kHz
• variable gain and Q, and ability to save EQ Library presets

Dynamics and effects
• fully adjustable gate and compression
• 4 stereo effects available with reverb, delay, modulation and graphic EQ
• simple to use and informative visual representation of effect dynamic
• depth and gain reduction metering for accurate adjustment

Smart outputs
• 16 internal busses with 8 balanced XLR outputs
• comprehensive routing facilities to maximise mixer flexibility
• simple and clear selection and routing

Studiomaster digiLivE 16 RS Features

  • 16 input with 16 internal busses
  • 12 digital gain mic input channels
  • 2 stereo inputs
  • 8 configurable smart outputs
  • 7" high resolution touch screen
  • Ultra compact unit size
  • Advanced hybrid user interface
  • Full iOS Tablet control

Key Features

  • Get pristine sound quality with this 16-channel digital mixing console for live performances.
  • Enjoy flexible EQ control with fully adjustable parameters, perfect for shaping your sound.
  • Seamlessly record and playback via dual USB interface, making production workflow easy.
  • The Studiomaster mixer's low noise ensures clean, professional audio for any recording setup.
  • Rack-mountable design ensures durability and easy integration into your existing setup.
  • Use the intuitive 7" touch screen and remote iPad app for complete control over your mix.

What's in the box:

  • digiLivE 16 RS 16-Channel Rack-Mount Digital Mixing Console
  • Console Power Supply
  • IEC Power Cable
  • Wi-Fi Dongle
  • User Guide
  • Studiomaster 1 Year Limited Warranty
