The auto-negotiation feature automatically detects the type of network, ensuring optimal data transfer speeds. This makes the installation process smooth and user-friendly.
Yes, the switch is an excellent choice for gaming setups. It allows for the networking of multiple devices and supports high-speed data transfer, which is essential for smooth gaming experiences.
Compliance with these standards means the switch is designed to support reliable, high-speed data transfer over Ethernet. The 802.3 standard refers to 10Base-T (10 Mbps) networks, while the 802.3u standard refers to 100Base-TX (100Mbps) networks.
Yes, the switch has been designed for easy installation. It features auto MDIX detection for cable type and can be conveniently wall-mounted or placed on a desktop. It's a plug-and-play device, meaning it requires no complex configuration.
The fanless design of the switch ensures quiet operation, making it an excellent choice for environments where noise reduction is important. It also contributes to the energy efficiency of the device.
Review Summary
Realtek RTL8309N
IEEE 802.3, IEEE 802.3u
8
Yes
IEEE 802.3x
Yes
Automatic learning, Automatic aging
328' / 100m
100 Mbps
CSMA/CD
Store and Forward
8x RJ-45 Female
OS Independent; No additional drivers or software required
1x Power (green)
8x Link/ Activity (green)
0.3A
110 to 240 AC
0.6A
5 DC
H
10 to 90% RH
0 to 40 deg. C / 32 to 104 deg. F
-40 to 70 deg. C / -40 to 158 deg. F
Plastic
RoHS Compliant
CE
FC
1.1 x 5.5 x 3.5" / 27.94 x 139.7 x 88.9mm
5.5oz / 155.93g
065030848220

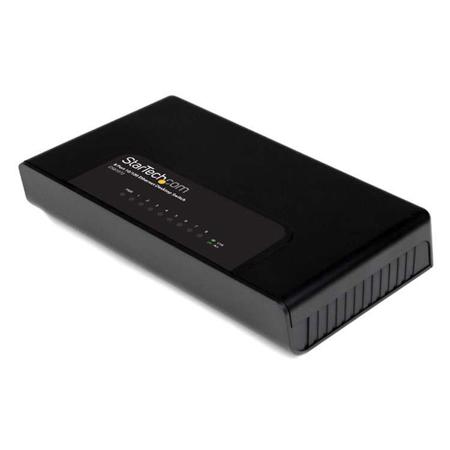

A high-speed, efficient, and reliable networking solution, the DS81072 8-Port Ethernet Network Switch is designed to enhance your connectivity by enabling up to 8 users to share files and devices such as printers and scanners over a LAN connection. This durable switch expands your existing network's capacity with additional ports, making it an ideal choice for small to medium-sized businesses, home offices, and other networking environments.
Engineered for compatibility with both 10Base-T (10 Mbps) and 100Base-TX (100Mbps) networks, this Fast Ethernet switch boasts an auto-negotiation feature that automatically detects the type of network. It also includes an auto MDIX detection for the type of cable, ensuring a seamless, user-friendly, plug-and-play installation process.
The DS81072 8-Port Ethernet Network Switch is compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards, ensuring reliable and high-speed data transfer. It also supports IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex operation, enhancing the efficiency of your network.
This 8-port Ethernet switch is designed with eight 10/100 Mbps capable RJ45 Ethernet ports and supports automatic MAC address learning and aging. Its compact, desktop-style form factor includes rubber stabilizer feet for stability, and it can be conveniently wall-mounted or placed on a desktop.
The switch features easily-accessed top-mounted LED indicators for quick status checks. Its simple, fanless design ensures quiet and energy-efficient operation, making it a practical addition to any networking setup. Whether you're looking to create a small local network of computers for data transfer/sharing, streaming, or gaming, or need to network multiple devices in different rooms, the DS81072 8-Port Ethernet Network Switch is a versatile solution that simplifies your connectivity needs.
