StarTech 20 Slot 2U Media Converter Chassis for ET Series 2 Fiber Media Converter

SKU: STETCHS2U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

StarTech Media Converter Chassis Specifications

  • Fan(s)

    Yes

  • Fans

    2 - 80 mm

  • Frame Type

    Open Frame

  • Mounting Options

    Front Mount (Front Only)

  • U Height

    2U

  • Air Flow Rate

    59.37 CFM

  • MTBF

    65,000 Hours (25 deg.C)

  • Noise Level

    44.5 dBA

  • Input Current

    2.2A

  • Input Voltage

    110 to 240 AC

  • Output Current

    16.6A

  • Output Voltage

    12 DC

  • Power Consumption

    60W (fully loaded, with mixed card types)

  • Power Source

    Standard 120V Power Cords

  • Humidity

    5 to 90% RH Non-condensing

  • Operating Temperature

    0 to 60 deg. C / 32 to 140 deg. F

  • Storage Temperature

    -10 to 70 deg. C / 14 to 158 deg. F

  • Enclosure Thickness

    0" / 1mm

  • Enclosure Type

    Steel

  • Certifications

    RoHS Compliant
    CE
    FC
    UL

  • Dimensions (H x L x W)

    6.5 x 15.5 x 20.4" / 165.1 x 393.7 x 518.16mm

  • Weight

    13.4lbs / 6.08kg

  • UPC Code

    065030848275

About StarTech Media Converter Chassis

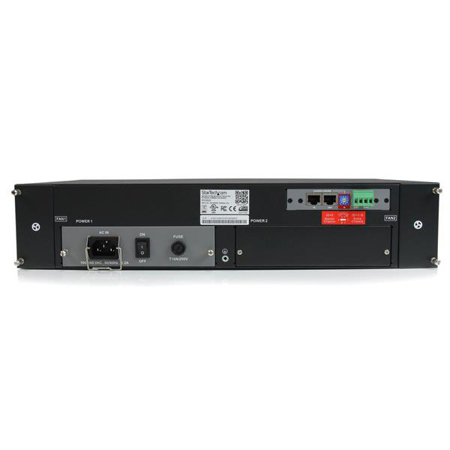

The ETCHS2U 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Media Converters lets you add an un-managed, 20-slot media converter chassis to your rack or cabinet to provide central power and cooling. The media converter rack includes a single 200W power supply to centrally power all 20 slots, with an additional slot to add a redundant power supply (ETCHS2UPSU) for maximum up-time.

• 2U 20-slot Media Converter Chassis with AC/DC power
• Single 200W Power Supply included - redundant power supply (ETCHS2UPSU) also available - sold separately
• 2 removable cooling fans included
• All modules and cards support hot-swapping

It also includes two cooling fans (one per side) to help extend the life of your media converters. A perfect accessory to the StarTech ET series 2 converters, the 2U chassis is designed so that all critical components (Power, Fans and Media Converter Cards) are hot swappable to avoid network disruption. Backed by a StarTech 2-year warranty and free lifetime technical support.

Applications
• Centrally mount and power up to 20 media converter units with a single chassis, while providing additional cooling and optional redundant power

Advantage
• Chassis consolidates your media converters into one space, while providing central power and cooling, for a streamlined rackmount solution
• Modular design lets you hot-swap your media converter cards, fans or add an additional power supply without downtime

What's in the box:

  • StarTech 20 Slot 2U Media Converter Chassis
  • Single 200W Power Supply
  • 2x Removable Cooling Fans
  • 3x Power Cords (NA/EU/UK)
  • Instruction Manual
  • StarTech 2 Year Warranty
