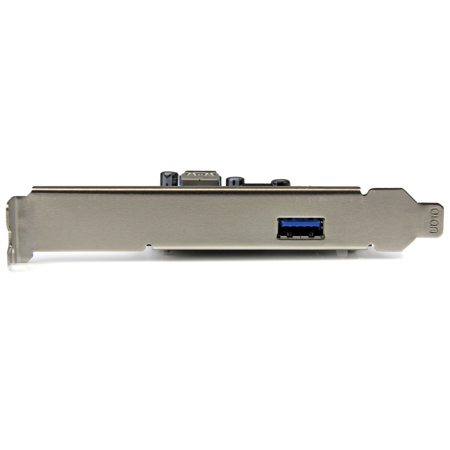

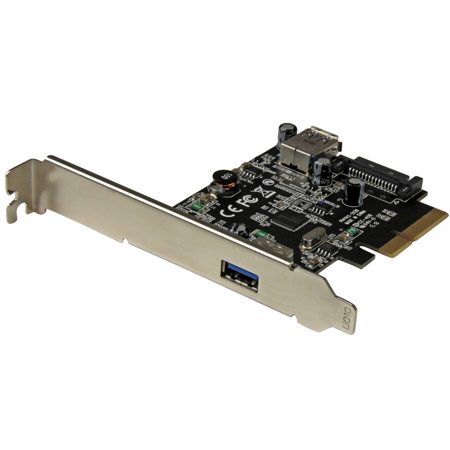

StarTech 2-Port USB 3.1 (10Gbps) Card with USB-A Connectors
StarTech USB Card: Picture 1 thumbnail
StarTech USB Card: Picture 2 thumbnail
StarTech USB Card: Picture 3 thumbnail
StarTech USB Card: Picture 4 thumbnail
StarTech USB Card: Picture 5 thumbnail
See all StarTech items

StarTech 2-Port USB 3.1 (10Gbps) Card with USB-A Connectors

SKU: STEXUSB311EI MFR: PEXUSB311EI
(13)Ask a Question
$58.99
Earn VIP Reward Points

Key Features

  • Boost your PC's performance with this 2-Port USB 3.1 card, supporting up to 10Gbps!
  • Add two USB-A ports to your desktop easily using this PCI Express USB card.
  • Experience fast data transfers with this USB 3.1 Gen 2 adapter, ideal for large files.
  • This USB expansion card includes a low-profile bracket for small form-factor PCs.
  • Enhance your workstation with this USB 3.1 card, compatible with Windows, Mac, and Linux.
  • Enjoy UASP support for faster transfer speeds with this high-performance USB card.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-05-21T20:00:00

Rated 5 out of 5

Great Product for Intended Use

Needed to add a 20 Pin internal USB header to an Asus Z890M board for a 54 in 1 device on a Windows 11 Pro OS. Didn't need SATA power for good results. Unit worked perfectly with OS WHQL drivers. Took longer to unbox unit than to install. Highly recommend.

BarryL

2023-10-26T20:00:00

Rated 5 out of 5

Easy install great product!

Bought this so I could make full use of my Corsair case's 4 USB 3.0 sockets. Mounted quickly with an easy driver installation!

Deph

2023-03-22T20:00:00

Rated 5 out of 5

The most compatible USB 2.0 card

This card is the best pick when installing Windows 98 on modern hardware. Also works great in Windows 11, my expensive Razer mouse is hooked-up to this card so I can use it in Windows 98 and Windows 11 in a dual boot configuration.

OMORES

2022-10-19T20:00:00

Rated 5 out of 5

Works fine, on PCIe2 x 4 channels is 1 GB transfer

4 PCIE-2 x 4 supports the card with an external, self-powered 4-port USB 3.2 hub just fine, and one front panel USB 3.0 port. The card also has a SATA power connector attached. No dropouts, no compatibility issues with an old Intel Server board running Windows 10. Just works.

Greg T.

2022-10-19T20:00:00

Rated 5 out of 5

Works fine, on PCIe2 x 4 channels is 1 GB transfer

4 PCIE-2 x 4 supports the card with an external, self-powered 4-port USB 3.2 hub just fine, and one front panel USB 3.0 port. The card also has a SATA power connector attached. No dropouts, no compatibility issues with an old Intel Server board running Windows 10. Just works.

Greg x.

2020-03-20T20:00:00

Rated 5 out of 5

Great for external DAC

After installing it instead of motherboard's USB ports - there are stops any lags or music distortion while ASIO streaming. Very clear strong sound stream without artefacts. Really huge improvement for my SCHIIT MODI MULTIBIT.

oplacheno_1

2019-12-28T19:00:00

Rated 1 out of 5

Not wirking on Win 10(((

I Bought it one week ago, and can not install it in my lenovo shark bay with Win 10 - system dont see it at all

oplacheno

2019-10-06T20:00:00

Rated 2 out of 5

Detects as USB Type-C & Requires SATA power cable

I bought this because I needed to have an internal USB-A port that was inaccessible to users. But on every boot there is a POST error indicating "USB Type-C Card Detection Error" and that "cable is required between 12C on card and USB-C on the motherboard"... but this isn't a Type-C card (its type-A). The computer and port work fine once you continue past the error screen & reboot again. The only extra port on it is the SATA power cable. So when I get one of those I'll update to see if that fixes it.

Sri_N

2019-01-20T19:00:00

Rated 5 out of 5

Has been working great for 2 years.

Bought 2 years ago for my home built - Windows 10 Home - computer (AMD FX CPU/Gigabyte MB), to add extra USB ports. Have had no issues thus far.

Mathew

2017-08-15T20:00:00

Rated 2 out of 5

Wont work in Dell Servers

Trying to use for USB 3.1 drive dock on a backup server. The card needs power, no power leads on most Dell servers for aux power to pcie cards. The Startech USB 3.0 pcie card did not need aux power if the drive was independently powered. Request a 3.1 card that does not need aux power, even if that violates the 3.1 standard.

BillB50

2017-05-26T20:00:00

Rated 5 out of 5

Exactly what we we're needing

I am one of the " IT " guys Orthopedic Appliance Company here in Asheville NC. Our Dell server has those 2.0 USB ports. Backups being that they are encrypted we're taking 8hrs+/-. Even though backup we're scheduled after hours, it would run into the following day by a few hrs. Ordered the 3.0+ Pcie add-on card, and now complete backups are taking less than 5 and are completed before the staff returned the following morning and are able to be more productive because the local server isn't being bogged down from backups running?. 18 staff members running pervasive database applications along with remote desktop really put a strain on Everything. Best money spent.

Lewis

2017-05-10T20:00:00

Rated 4 out of 5

mostly works

The Technical Specifications are poorly written. This is physically an x4 PCie card, but it is electrically PCIe 2.0 x2. Startech should update all their PCIe card Technical Specifications with specific information like that instead of the vague and useless info currently provided. The problem with x2 is that some old computer chipsets or CPUs may treat that as x1 which would half the performance, or quarter the performance if it is a PCIe 1.0 slot. You can find other cards that use a switch chip (x4 upstream) to connect both USB and eSATA. Such a card will perform better in a x4 PCIe 1.0 slot or a slot that does not support x2. The ASM 1142 chip has a problem where it reports the connection status of my device as 5Gb/sec instead of 10 Gb/sec but the device transfers data at faster than 5 Gb/sec anyway. Sometimes I have to reconnect the device if it reports as 480 Mb/sec (USB 2.0). USB 3.1 gen 2 from an Intel Thunderbolt 3 chip does not have those problems but no-one makes a USB PCIe card using that chip.

joevt2

2017-03-18T20:00:00

Rated 1 out of 5

Great feature if I can get it to work

I wanted to add USB 3 to my HP Z800 with Win 7 Pro 64 bit but it is not working correctly. Confused as it should straight out of the box.

Pierre

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

StarTech USB Card Specifications

  • Bus Type

    PCI Express

  • Card Type

    Standard Profile (LP bracket incl.)

  • Chipset ID

    ASMedia - ASM1142

  • Industry Standards

    USB 3.1 Specification Rev. 1.0
    USB Specification Rev. 2.0
    PCI Express Base Specification Rev. 3.0
    Intel xHCI Specification Rev. 1.1
    UASP (USB Attached SCSI Protocol) Rev. 1.0

  • Interface

    USB 3.1 Gen 2

  • Port Style

    Integrated on Card

  • Ports

    2

  • Maximum Data Transfer Rate

    10Gbps

  • Type and Rate

    USB 3.1 Gen 2 - 10 Gbit/s

  • UASP Support

    Yes

  • Connector Type(s)

    1 - PCI Express x4 Male

  • External Ports

    1 - USB 3.1 USB Type-A (9 pin; Gen 2; 10 Gbps) Female

  • Internal Ports

    1 - USB 3.1 USB Type-A (9 pin; Gen 2; 10 Gbps) Female
    1 - SATA Power (15 pin) Plug

  • OS Compatibility

    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64)
    Windows Server 2012, 2008 R2
    Mac OS 10.9 and later (tested up to 10.10)
    Linux 3.5

  • System and Cable Requirements

    PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
    SATA power connector

  • Humidity

    20-80% RH (Non-condensing)

  • Operating Temperature

    5 to 50 deg. C / 41 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Certifications

    RoHS Complaint
    CE
    FC

  • Dimensions (H x L x W)

    4.7 x 3.5 x 0.7" / 11.94 x 8.89 x 1.78cm

  • Weight

    1.9oz / 53.86g

  • UPC Code

    065030863698

About StarTech USB Card

FEATURED REVIEWS

Has been working great for 2 years.

By Mathew

Bought 2 years ago for my home built - Windows 10 Home - computer (AMD FX CPU/Gigabyte MB), to add extra USB ports. Have had no issues thus far.

Great Product for Intended Use

By BarryL

Needed to add a 20 Pin internal USB header to an Asus Z890M board for a 54 in 1 device on a Windows 11 Pro OS. Didn't need SATA power for good results. Unit worked perfectly with OS WHQL drivers. Took longer to unbox unit than to install. Highly recommend.

It's time to elevate your computer's connectivity with the cutting-edge 2-Port USB 3.1 (10Gbps) Card with USB-A Connectors. Designed to usher in the next generation of USB performance, this card is a robust solution for both internal and external USB needs. With a dual-port configuration, it offers one internal and one external Type-A connector, delivering a combined bandwidth of up to 10Gbps for rapid data transfer and efficient operation.

Experience the efficiency of high-speed data transfer with this card's ability to move files and access USB 3.1 devices swiftly, both inside and outside your computer case. The internal SATA power connector ensures that power-hungry devices receive the energy they need, directly from your computer's power supply, enhancing the performance of connected peripherals.

This card is not only fast but also versatile. It is backward compatible with USB 3.0 and 2.0 devices, ensuring a seamless integration with your existing equipment. The integrated SATA power connector supports high-powered USB devices, making it an ideal choice for large external storage solutions.

Installation is user-friendly and efficient, with native support from many operating systems and a dual-profile design that fits into standard or low-profile systems. The card comes equipped with a full-profile bracket and includes a low-profile (half-height) bracket for installation in small form-factor computers.

For those who require secure internal connectivity, the internal USB Type-A connector is perfect for devices like front-bay SD card readers or interface devices for external wireless peripherals. The external port caters to any USB Type-A device, from external hard drives to wired peripherals, ensuring reliable and durable connections.

By leveraging the PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0, this card ensures efficient and reliable performance. It is also compliant with UASP (USB Attached SCSI Protocol) Revision 1.0 and the Universal Serial Bus 3.1 Specification Revision 1.0, as well as the Universal Serial Bus Specification Revision 2.0.

Whether you're upgrading an older PCIe-equipped desktop, securing a USB device within your computer case, expanding your system's USB capabilities, or building a new PC, this card is an essential component. It's ideal for tasks that demand high bandwidth, such as file backups, video editing, and data recovery.

Choose this 2-Port USB 3.1 (10Gbps) Card with USB-A Connectors for a durable, high-speed, and reliable addition to your technology arsenal. It's a user-friendly and efficient solution that ensures your system is equipped for the demands of modern USB devices.

StarTech USB Card Features

  • High-speed 2-Port USB 3.1 (10Gbps) Card with USB-A Connectors for rapid data transfer
  • Offers one internal and one external Type-A connector, enhancing versatility and connectivity
  • Backward compatible with USB 3.0 and 2.0 devices, ensuring seamless integration
  • Internal SATA power connector supports high-powered USB devices for optimal performance
  • User-friendly installation with native support from many operating systems
  • Ideal for tasks requiring high bandwidth like file backups, video editing, and data recovery

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Boost your PC's performance with this 2-Port USB 3.1 card, supporting up to 10Gbps!
  • Add two USB-A ports to your desktop easily using this PCI Express USB card.
  • Experience fast data transfers with this USB 3.1 Gen 2 adapter, ideal for large files.
  • This USB expansion card includes a low-profile bracket for small form-factor PCs.
  • Enhance your workstation with this USB 3.1 card, compatible with Windows, Mac, and Linux.
  • Enjoy UASP support for faster transfer speeds with this high-performance USB card.

What's in the box:

  • StarTech 2-Port USB 3.1 (10Gbps) Card with USB-A Connectors
  • Low-Profile Bracket
  • Instruction Manual
  • StarTech 2 Year Warranty
