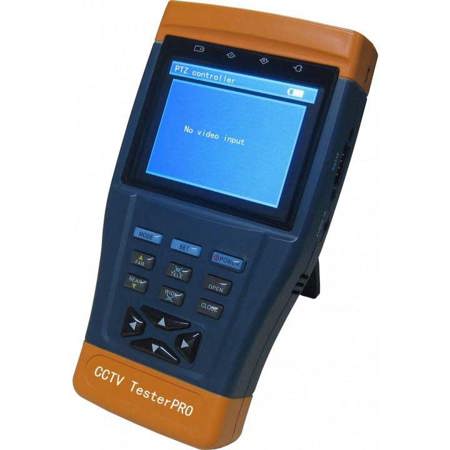

Securitytronix ST-FTEST35F 3.5" LCD Monitor CCTV Test Meter with Multi-Meter
See all Securitytronix items

Securitytronix ST-FTEST35F 3.5" LCD Monitor CCTV Test Meter with Integrated Multi-Meter, 960x240

SKU: STFTEST35F

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix ST-FTEST35F Specifications

  • Signal Mode

    NTSC/PAL (Auto Adjust)

  • Display

    3.5" TFT-LCD, 960 x 240 resolution

  • LCD Adjust

    Adjustable brightness, contrast, color of LCD

  • Video IN/OUT

    1 channel BNC Input & 1 channel Output

  • Video Level Test

    Video signals measured in IRE or mV

  • Power Output

    DC12V, 1A

  • Audio Input

    1 channel Audio input

  • Communication

    RS232, RS422 simplex and RS485

  • Baud Rate

    150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

  • Power Adapter

    DC5V, 2A

  • Low Consumption

    Sleeping mode, display battery power state

  • PTZ Address Scanning

    Search up the ID of PTZ camera

  • Rechargeable

    4 hours recharging time, work for 12 hours

  • Battery

    1x Lithium Ion Polymer Battery, 3.7V DC 3000mAh

  • Video Signal Generation

    Output 1 channel color bar video signal for testing monitor

  • UTP Cable Test

    Test UTP cable connection state and display in the screen. Read the number of the test box

  • PTZ Protocol

    Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic etc.

  • PTZ Data Capture

    Capture and Analyze the PTZ data sent from controlling device

  • Multi-Meter

    Voltage, current, resistance and capacitance measuring, continuity testing, diode testing

  • Dimensions

    166 x 95 x 48mm (6.54 x 3.74 x 1.89")

  • Weight

    360g (12.70 oz)

  • Battery Capacity

    11.1 Wh

About Securitytronix ST-FTEST35F

The ST-FTEST35F has been developed for the On-Site installation and maintenance of video monitoring systems. It can be used for displaying video, controlling PTZ, DC12V1A power for camera, Audio input test, generating images, capturing RS485 data and testing LAN cable etc. Its functions, easy operation and portability make it simple for the CCTV technician to install and maintain CCTV systems, improving work efficiency and reducing labor costs.

Securitytronix ST-FTEST35F Features

  • 3.5" TFT LCD display with 960x240 resolution
  • Video Level testing, with video signals measured in IRE or mV
  • DC 12V 1 A power output for camera
  • Audio input testing
  • Digital multimeter - voltage, current, resistance and capacitance can be tested as well as continuity and diode testing
  • PTZ control. Pan/tilts the P/T unit; zooms in/out of the lens; adjusts the focus and aperture; and sets and calls the preset position. Can perform PTZ address scanning with ID search of PTZ cameras
  • Automatically adapts and displays the video format of NTSC / PAL. Video display LCD brightness, contrast, color saturation are adjustable
  • NTSC / PAL multisystem colorbar video generator (seven system switchable; transmit, receive, seven system color images)
  • Captures and analyzes RS485 control data
  • Powerful LAN cable testing measuring the connecting status, displaying the sequence of connection and the No. of the LAN cable
  • Supports RS232, RS485 and RS422 interfaces with baud rates ranging from 150, 600 to 19200bps
  • Supports more than twenty PTZ protocols, including PELCO&P, PELCO&D, SAMSUNG, etc
  • Advanced power control and protection circuit for its 3.7V DC3000mAh lithium ion polymer battery. Battery can last up to 12 hours for normal use after charging for 4 hours

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix ST-FTEST35F 3.5 " LCD Monitor CCTV Test Meter with Integrated Multi-Meter
  • LAN Cable Tester
  • 5V 2A Power Supply
  • Lithium Ion Polymer Battery
  • BNC Cable
  • RS485 Cable
  • Safety Cord
  • Case
  • Instruction Manual
  • Securitytronix 1 Year Limited Warranty
