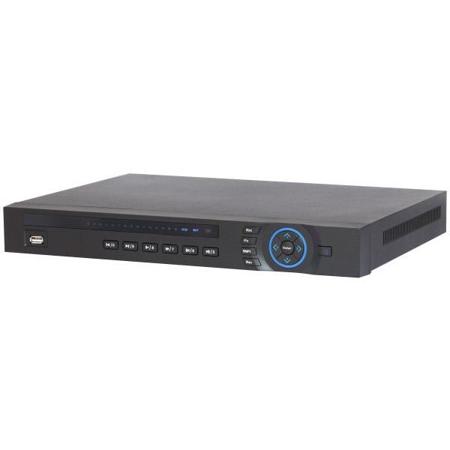

Securitytronix ST-HD-CVR16CH-V2 16 Channel 1080p Tribrid HD CVR Digital Video Recorder, H.264, G.711, No HDD

SKU: STHDCV16CHV2

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Securitytronix ST-HD-CVR16CH-V2 Specifications

  • Main Processor

    Embedded processor

  • Operating System

    Embedded LINUX

  • Video: Input

    16 channel, BNC

  • Video: Standard

    HDCVI: 1080P/720P HDCVI Camera
    IP: 1080P/720P/D1/CIF IP Camera
    Analog: NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

  • Audio: Input

    4 channel, RCA

  • Audio: Output

    1 channel, RCA

  • Audio: Two-way Talk

    Reuse audio input/output channel 1

  • Display: Interface

    1 HDMI, 1 VGA

  • Display: Resolution

    1920x1080, 1280x1024, 1280x720, 1024x768, 800x600

  • Display: Display Split

    1/4/8/16

  • Display: Privacy Masking

    4 rectangular zones (each camera)

  • Display: OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Record Video/Audio Compression

    H.264/G.711

  • Record Resolution

    1080P(1920x1080)/720P(1280x720)/960H(960x576/960x480)/D1/4CIF(704x576/704x480) / CIF(352x288/352x240) / QCIF(176x144/176x120)

  • Embedded processor

    Main Stream: 1080P(1-12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1-25/30fps)
    Extra Stream: CIF/QCIF(1-25/30fps), D1(1-12/15fps)

  • Bit Rate

    48-4096Kb/s

  • Record Mode

    Manual, Schedule(Regular(Continuous), MD), Stop

  • Record Interval

    1-60 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot,Buzzer & Screen tips

  • Video Detection

    Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank

  • Alarm Input

    16 channel

  • Relay Output

    3 channel

  • Sync Playback

    1/4/9/16

  • Search Mode

    Time/Date, MD & Exact search (accurate to second)

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Internal SATA burner/Network

  • Ethernet

    RJ-45 port (10/100M/1000M)

  • Network Functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    2 SATA ports, up to 8TB

  • USB Interface

    2 ports(1 Rear), USB2.0

  • RS485

    1 port, For PTZ Control

  • Power Supply

    DC12V/5A

  • Power Consumption

    15W(without HDD)

  • Working Environment

    -14 to 131 deg. F / -26 to 55 deg. C
    10%-90%RH
    86-106kpa

  • Dimension(W x D x H)

    14.8 x 11.25 x 2.2" / 37.59 x 28.58 x 5.59cm
    1U

  • Weight

    5.2lbs / 2.36kg (without HDD)

1 Accessories for Securitytronix ST-HD-CVR16CH-V2 16 Channel 1080p Tribrid HD CVR Digital Video Recorder, H.264, G.711, No HDD

  • All Accessories (1)
  • Monitors (1)

About Securitytronix ST-HD-CVR16CH-V2

SecurityTronix is thrilled to announce the release of the groundbreaking HD-COAXINATOR series of high definition cameras and digital video recorders. This series allows for stress-free installs by utilizing the same coaxial cable, connectors and power plugs as a traditional analog CCTV system. The HD-COAXINATOR series is priced like analog and delivers HD resolutions like IP, but without video latency or other difficulties found when dealing with IP based systems.

Integrators can easily upgrade existing systems from analog to HD by simply replacing the old DVR and analog cameras with the HD-COAXINATOR cameras and CVR digital video recorder. Installers can quickly install new HD systems without the need for IP wiring or the complexity involved in setting up a network. The HD-CVI technology used in the SecurityTronix HD-COAXINATOR provides resolution, color depth and image recognition that analog cameras are incapable of matching. Other more expensive HD over coax products on the market today have a limited transmission distance.

The HD-COAXINATOR overcomes this limitation using new breakthrough technology to extend signal transmission distance, with virtually no deterioration in picture quality. SecurityTronix has researched and developed a quality, plug and play, cost effective HD solution that makes sense.

The HD-CVI technology used in the SecurityTronix HD-COAXINATOR provides resolution, clarity and natural colors that traditional analog CCTV cameras are unable to match. Competitor's cameras with HD-SDI technology can provide the same 720P & 1080P resolutions which COAXINATOR provides, however they suffer from significantly higher cost, limited cable runs and do not have the ability to send PTZ control data over the same coax cable used for video.

Securitytronix ST-HD-CVR16CH-V2 Features

  • HD Quality video over existing coaxial cable
  • 1080p Real time viewing
  • 720p Recording at 30FPS
  • 1080p Recording at 15FPS
  • 1 VGA and 1 HDMI video output
  • Supports mobile monitoring / management
  • Available in 4, 8 or 16ch models
  • 16 Channel unit supports analog, HD-CVI & HD-IP
  • Two year limited warranty

Key Features

  • 1080p Real time viewing
  • 720p Recording at 30FPS
  • 1080p Recording at 15FPS
  • 1 VGA and 1 HDMI video output
  • Available in 4, 8 or 16ch models
  • Two year limited warranty

What's in the box:

  • Securitytronix ST-HD-CVR16CH-V2 16CH 1080p Tribrid HD CVR Digital Video Recorder
  • Securitytronix 2 Year Limited Warranty
