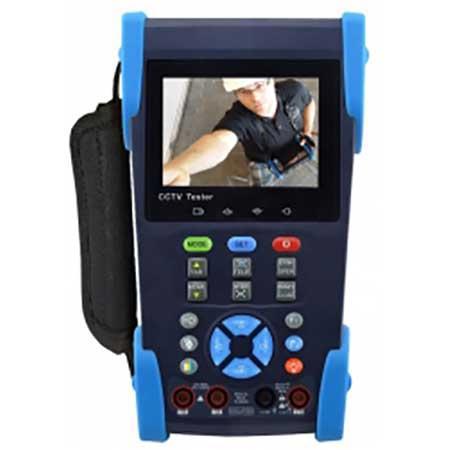

Securitytronix ST-HDoC-MM 3.5" Installation & Test Meter with Multi-Meter
See all Securitytronix items

Securitytronix HD CCTV BOSS Series ST-HDoC-MM 3.5" Installation & Test Meter with Multi-Meter for TVI, CVI, AHD, SDI and Analog Cameras

SKU: STHDOCMM

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix ST-HDoC-MM Specifications

  • Additional Included Items

    18" 3.5mm Audio Microphone or Speaker Cable with Alligator Clips
    Carrying Case and Hanging Strap with Front Accessory Pouch
    User's Manual

  • Compatibility

    TVI, CVI, AHD, SDI and Analog Cameras

  • Signal mode

    NTSC/PAL (Auto adapting)

  • Display

    3.5" digital TFT-LCD, 480(RGB) x 320 resolution

  • LCD

    Brightness, Contrast, Saturation adjustable

  • Video IN/OUT

    1 channel BNC Input & 1 channel Output

  • Video Output Mode

    1.0 Vp-p

  • Communication Support

    RS232 and RS485

  • PTZ Protocol

    Compatible with more than 30 protocols such as PELCO-D/P

  • Baud Rate

    600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps

  • Color bar generator

    Outputs one channel PAL/NTSC color bar video signal for testing monitor or video cable (Gray, red, green, blue, white and black colors)

  • UTP cable test

    Tests UTP cable connection status and display on the screen

  • DC12V power output

    Outputs DC12V 1A power for cameras

  • Audio input test

    Supported

  • RS485 data analysis

    Captures and analyzes the command data from controlling devices

  • TVI video signal test

    1 channel HD-TVI input (BNC interface), supports 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, coaxial PTZ control and calls up camera menu

  • CVI video signal test

    1 channel HD-CVI input (BNC interface), supports 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, coaxial PTZ control and calls up camera menu

  • AHD video signal test

    1 channel AHD input (BNC interface), supports AHD 2.0 version, 720p 25, 30fps / 1080p 25,30fps, coaxial PTZ control and calls up camera menu

  • SDI video signal test

    1 channel SDI input (BNC interface), supports 720p 25, 30, 50, 60fps / 1080p 25, 30, 50, 60fps / 1080i 50, 60fps

  • Multimeter

    Voltage, current, resistance and capacitance measuring, continuity testing, diode testing

  • Power Adapter

    DC 5V (1.5A)

  • Battery

    Built-in 3.7V Lithium polymer battery, 3000mAh

  • Battery Charging

    11 Hour run time after 3 - 4 hour charge

  • Low Consumption

    Energy saving technology, real time battery icon

  • Operation Setting

    English and other languages OSD menu

  • Auto Off

    5-60 Minutes, user definable

  • Key Tones

    On/Off

  • Dimensions

    Meter: 7.5 x 4.35 x 2.0" (190.50 x 110.49 x 50.80mm)

  • Weight

    Meter: 0.9 lbs (0.41kg)

  • UPC Code

    810842022845

About Securitytronix ST-HDoC-MM

The Securitytronix ST-HDoC-MM is designed for maintenance and installation of HD-CVI, HD-TVI, AHD, SDI and analog cameras as well as other security equipment. It's 3.5" 480 x 320 resolution screen enables it to display images from HD cameras and analog cameras in top quality. The unit supports HD over coax, PTZ, ONVIF PTZ and analog PTZ controls. In addition, the tester is also a great tool for Ethernet networks and cabling systems.

It includes the ability to test network cables while verifying the sequence of the individual conductors. The meters portability, user-friendly design and multi-function capability make it an essential tool for installers and technicians, greatly improving work efficiency and simplifying installations and system maintenance.

Securitytronix ST-HDoC-MM Features

  • 3.5" screen display, 480 x 320 resolution
  • Perfect for testing analog, HD-TVI, HD-CVI, HD-SDI and AHD cameras
  • Adjustable LCD screen brightness / contrast / color saturation
  • Automatically adapts and displays NTSC and PAL video formats
  • Integrated Multimeter
  • Enhanced Color bar generator
  • HD coaxial test, analog PTZ control, color bar generator shortcut key
  • F1, F2 user-defined key
  • PTZ control and PTZ protocol analysis
  • PTZ address scan and ID search
  • Multi-protocol. Supports more than thirty PTZ protocols including PELCO P and PELCO D
  • PTZ protocol analysis, control protocol command displays to check RS485 transmission
  • PTZ control. Pan/tilt the PTZ unit, zooms in/out the lens, adjusts the focus, aperture and set the preset position
  • Network cable and Telephone cable testing, display sequence of connections and the number of LAN cables
  • Supports RS232/RS485, baud rate 600 - 115200bps adjustable
  • Built in Lithium Ion Polymer Battery (3.7V DC 3000mAh)
  • Employs advanced power control and protection circuit
  • Battery life up to 11 hours of normal use after charging for 3 - 4 hours
  • Image display and data control integration
  • Audio input test, tests the audio signal from pickup devices
  • Easy to carry and operate

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix HD CCTV BOSS Series ST-HDoC-MM 3.5 " Installation & Test Meter with Multi-Meter
  • 5VDC 1.5A Power Adapter (with USB Cable)
  • No.255 Cable Tester
  • Lithium Ion Polymer Battery (3.7V DC 3000mAh)
  • 3' BNC Test Cable
  • 18 " RS485 Test Cable with Alligator Clips
  • Multi Meter Test Leads (Red and Black)
  • 3' Camera Powering Cable
  • Securitytronix 2 Year Limited Warranty
  • (See Specification for More Included Items)
