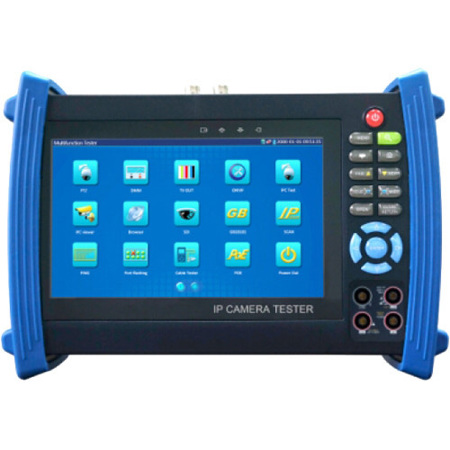

Securitytronix ST-HDoC-TEST-MM 7" Touch Screen Test Meter with Multi-Meter
See all Securitytronix items

Securitytronix ST-HDoC-TEST-MM 7" Touch Screen Test Meter with Integrated Multi-Meter for Analog, AHD, IP, HD-TVI & HD-CVI Cameras

SKU: STHDOCTESTMM
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix ST-HDOC-TEST-MM Specifications

  • Signal System

    NTSC / PAL (Auto-Selecting)

  • Display

    7" LCD screen display, with capacitive touch screen

  • Resolution

    1024 x 600 resolution; Supports 1920x1080 & 1080x720 resolutions

  • IP Camera Type

    ONVIF, ONVIF PTZ, SecurityTronix, ACTi, Dahua IPC-HFW2100P, Hikvision, DS-2CD864-E13, Samsung SNZ-5200, Honeywell HICC-2300T

  • Network Test

    FTP Server, Static IP address, DHCP, test multiple networks, network bandwidth testing

  • Management Software

    Included video management software to view IP cameras and NVR/DVRs

  • LCD adjust

    Adjustable brightness, contrast and color of LCD color

  • HDMI signal output

    Supports 1080p

  • Network Port

    10/100M auto adjust, RJ45

  • Wi-Fi

    Built in Wi-Fi, speeds up to 150Mbps, Can connect to wireless cameras

  • PoE Power Output

    PoE 24W power supply to IP camera

  • Video Input / Output

    1 channel BNC input & 1 channel BNC looped output

  • Video Output Mode

    1.0 Vp-p

  • Video Level Test

    Video signals measured in IRE or mV

  • Power Adapter

    Included 12VDC power supply

  • Power Output

    12VDC, 2A power output for cameras

  • Audio Input

    1 channel audio signal input to test pickup device, 1 channel audio signal output to headphone

  • USB power output

    USB 5VDC 2A power output

  • Communication

    RS232, RS422 simplex and RS485

  • Baud Rate

    Adjustable 150-115,200bps

  • Power Saving Functions

    Sleep mode, Battery level indicator

  • PTZ Address Scanning

    Scan for local PTZ address over data cables

  • Rechargeable Battery

    8 hours of charging will power the battery for about 17 hours of normal use

  • Battery

    1 Lithium Ion Polymer Battery; 7.4V DC, 6600mAh

  • Video Display

    Displays video signal from analog input

  • Video Signal

    Color bar generator for monitor testing

  • UTP Cable Test

    Checks connections of UTP cables

  • PTZ Protocol

    Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, TeleEye

  • PTZ Data Capture

    Reads and displays commands sent from controllers

  • Image 4x Zoom

    4x digital zoom image display and video out

  • Photograph

    Snapshot and save the image as JPG file

  • Video Record

    Video recording and playback from the SD card

  • Port Flicker

    Find connected PoE ports quickly

  • IP Scan

    Find connected IP cameras or network equipment's IP address

  • Link Monitor

    Check to see if an IP address is already being used

  • Ping Testing

    Network or IP camera ping testing

  • PoE Tester

    PoE voltage testing, PoE port flicker, PoE link monitoring

  • LED Light

    Built in LED light for working in dark areas or at night

  • HD-TVI Testing

    HD-TVI camera testing

  • HD-CVI Testing

    HD-CVI camera testing

  • SD Card

    Included 4G Micro SD card. Supports up to 32GB

  • Cable Scan

    Connect one end of the cable to tester and the tester will send unique audio signals to easily identify a single cable

  • Video Level Meter

    PEAK video signal level, SYNC signal level and COLOR BURST level measurement

  • Multimeter

    Voltage, current, resistance, capacitance measuring, continuity testing and diode testing

  • AHD Input

    AHD camera testing

  • Dimensions

    253 x 176 x 52mm / 9.96 x 6.93 x 2.05"

  • Weight

    1.2kg / 2.65lbs

  • Battery Capacity

    48.84 Wh

  • UPC Code

    810842021961

About Securitytronix ST-HDOC-TEST-MM

The ST-HDoC-TEST-MM 7 inch touch screen HD over Coax, analog & IP camera tester is designed for maintenance and installation of HD CVI, HD TVI, AHD, IP cameras and analog cameras as well as other security equipment. It's 1024x600 resolution enables it to display images from HD cameras and analog cameras in top quality. The unit supports HD over coax PTZ, ONVIF PTZ and analog PTZ controls. A combination of touch screen and push buttons make the IP camera tester very user friendly.

In addition, the tester is also a great tool for Ethernet networks and cabling systems. It can test PoE voltage and is capable of IP address searching. Through audio signal generation, the blue cable tracer tester can find connected cables from unorganized or unlabeled cable bundles and includes the ability to test network cable types while verifying the sequence of the individual conductors. Other functions include 24W PoE power supply, LED Lamp, 5VDC USB power output and 12VDC 2A power output.

The meters portability, user-friendly design and multi-function capability make it an essential tool for installers and technicians, greatly improving work efficiency and simplifying installations and system maintenance.

Securitytronix ST-HDOC-TEST-MM Features

  • 7 inch LCD touch screen 1024x600
  • HD CVI, HD TVI & AHD camera testing & image display
  • ONVIF IP camera testing & image display
  • Tests H.264/MPEG4/MJPEG IP cameras
  • Built in Wi-Fi
  • HDMI signal output supports 1080p
  • Analog camera image display auto adapts to NTSC or PAL video formats
  • Supports more than 30 protocols such as PELCO-P, PELCO-D, SAMSUNG & more
  • Digital video zoom allows for image magnification
  • Snapshot & video recording
  • LED Lamp for use in dark areas or at night
  • Removable micro SD card (included 4GB)
  • LCD screen with brightness, contrast and color saturation adjustment
  • PoE voltage testing
  • Audio input and output test ports
  • 12VDC 2A output to power cameras
  • PoE power output supplies temporary power for PoE cameras
  • Supports RS232 & RS485, baud rate is an adjustable 150 - 115,200bps
  • Enhanced Color bar generator for video output
  • PEAK video signal level, SYNC signal level, Color burst level measurement to test video signal attenuation
  • Cable tracing via an audio signal enables the blue cable tester to find the connected cable
  • Ping test
  • IP search for the camera or other network device
  • Network cable tester displays cable type and the sequence of wires
  • PTZ control for HD, IP and analog cameras

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • PEAK video signal level

What's in the box:

  • ST-HDoC-TEST-MM Test Meter with Integrated Multi-Meter
  • Carrying Case with Strap
  • Meter Neck Strap
  • 4GB SD Card
  • 2 Conductor to Female Power Adapter
  • 2 Conductor to Male Power Adapter
  • Polymer Li-on Battery
  • AC Charger
  • Test Probe
  • Multi-Meter Test Probe
  • BNC to Alligator Clip Cable
  • 3.5mm to Alligator Clip Cable
  • 2 Conductor Screw Terminal to Alligator Clip Cable
  • BNC Male to BNC Male Jumper Cable
  • DC to DC Jumper Cable
  • Instruction Manual
  • Warranty
