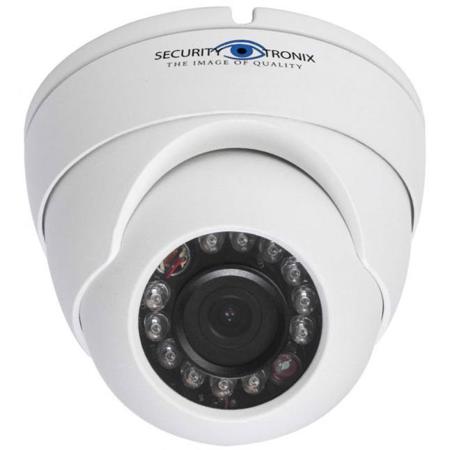

Securitytronix ST-HD-TD3.6 1MP Outdoor HD Turret Dome Camera, 3.6mm Fixed Lens, 1280x720, 30fps, 65' IR Range, White Housing

SKU: STHDTD361MP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Securitytronix ST-HD-TD3.6 Specifications

  • Image Sensor

    1/3" 1MP CMOS

  • Resolution

    1280(H) x 720(V)

  • Video Standard

    NTSC

  • Scanning System

    Progressive

  • Auto Electronic Shutter

    1/60s - 1/100000s

  • Lens

    3.6mm Fixed

  • IR LED

    12

  • IR Distance

    Up to 65' / 19.81m

  • Min. Illumination (Color)

    0.1 Lux/f1.2

  • Min. Illumination (B&W)

    0 Lux/f1.2 (IR On)

  • White Balance

    Auto

  • Exposure Mode

    Auto

  • Video Output

    HDCVI Port, HD Output, 1 Channel BNC

  • Frame Rate

    NTSC: 1280x720 at 30fps

  • 2D-DNR

    Yes

  • Required Power Supply

    DC12V, 500mA

  • Power Consumption

    3.5W Max

  • Operating Temperature

    14 to 113 deg. F / -10 to 45 deg. C

  • Operating Humidity

    95% Maximum Non-Condensing

  • Dimensions

    3.7 x 3.9" / 9.40 x 9.91cm

  • Weight

    0.75lbs / 0.34kg

About Securitytronix ST-HD-TD3.6

The ST-HD-TD3.6-1MP is a high-definition camera designed around a 1/3" Color 1 megapixel CMOS, 12 IR LEDs providing infrared capability up to 65 feet and a 3.6mm lens. The ability to send HD video over coaxial cable makes the ST-HD-TD3.6-1MP a cost effective high-definition surveillance solution for any budget. The HD-COAXINATOR series utilizes the same coaxial cable, connectors and power plugs as a traditional analog CCTV system.

The series is priced like analog and delivers resolution like IP, but without video latency or other difficulties found when dealing with IP based systems. Integrators can easily upgrade existing systems from analog to HD by simply replacing the old DVR and analog cameras with HD-COAXINATOR cameras and CVR digital video recorder.

Securitytronix ST-HD-TD3.6 Features

  • HD Video Quality Over Coaxial Cable
  • 1/3" CMOS Sensor
  • 1 Megapixel, 720p Resolution
  • 3.6mm Fixed Lens
  • 12 IR LEDs, 65' IR Range
  • 2D Noise Reduction (2DNR)
  • IP66 Rated Housing
  • 2 Year Warranty

Key Features

  • 1/3" CMOS Sensor
  • 3.6mm Fixed Lens
  • IP66 Rated Housing
  • 2 Year Warranty

What's in the box:

  • Securitytronix ST-HD-TD3.6 1MP Outdoor HD Turret Dome Camera
  • Instruction Manual
  • Securitytronix 2 Year Warranty
