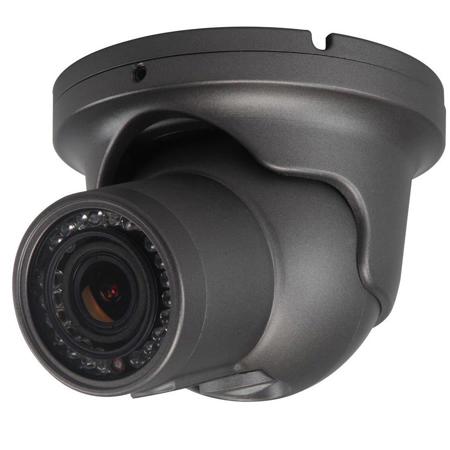

Speco Technologies HT6040K 1000 TVL IR Turret Camera, 2.8-12mm Lens, Dark Gray
See all Speco Technologies items

Speco Technologies HT6040K 1000 TVL Day & Night Indoor/Outdoor Analog IR Turret Camera with True WDR, 2.8-12mm Lens, Vandal/Tamper Resistant, Dark Gray

SKU: STHT6040K
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies HT6040K Specifications

  • Image Sensor

    1/3" 1.3 MP Sony Exmor

  • Resolution

    1000 TVL

  • Effective Pixels (H x V)

    1305 x 1049, 1.37 MP

  • Total Pixels (H x V)

    1312 x 1069, 1.40 MP

  • TV System

    NTSC

  • Number of IR LEDs and Range

    Number: 21
    Range: Up to 80' (24 m)

  • IR Wavelength

    850 nm

  • Scanning

    Progressive

  • S/N Ratio

    >50 dB

  • Frame Rate

    50 / 60 fps (maximum)

  • Video Output

    CVBS: 1 Vpp / 75Ohms

  • Minimum Illumination

    0 lux with IR LEDs on

  • Lens

    Type: DC auto iris varifocal lens (2.8 to 12 mm)
    Mode: DC / Manual

  • Electronic Shutter

    Auto / Manual (1/60 to 1/60000 sec ) / Flicker

  • OSD

    Output for Anti Shifting: On/Off
    Output for Anti Blocking: On/Off

  • Wide Dynamic Range

    On (low / middle / high) / Off

  • Digital WDR

    On (low / middle / high) / Off

  • Day/Night

    Color / BW / Auto / Ext

  • White Balance

    Auto / Auto Ext / AWC-Set / Manual

  • IR

    Smart IR: 0 to 20 (level adjustable, by default set to 0)

  • Sense-Up

    x2 to x32 (by default set to x8)

  • Motion

    Detection: On / Off (programmable 4 zones)
    Tracking (Quick Zoom): On / Off

  • 3D-DNR

    Off / Low / Middle / High

  • Defog

    On (Auto / Manual) / Off

  • Brightness

    0 to 20 (level adjustable, by default set to 10)

  • AGC (Automatic Gain Control)

    0 to 20 (level adjustable, by default set to 20)

  • Privacy Masking

    On / Off (programmable 16 zones)

  • Mirror

    V-Flip: On / Off

  • Sharpness

    0 to 15 (level adjustable, by default set to 7)

  • Lens Shading Compensation

    On / Off

  • RS-485 Protocol

    Supported

  • View Angle

    Wide 4:3 or 16:9 / Normal

  • CVBS

    Output: NTSC / PAL selectable

  • Communication

    Coaxial control

  • Language

    English

  • Weather-Proof Rating

    IP67, IK10

  • Mounting

    3-axis wall and ceiling mount

  • Power

    12 VDC, 24 VAC, dual voltage operation, (supply not included)

  • Power Consumption

    IR LED On: 510 mA at 12 VDC, 210 mA at 24 VAC
    IR LED Off: 270 mA at 12 VDC, 120 mA at 24 VAC

  • Temperature

    Operating / Storage: -4 to 140 deg. F / -20 to 60 deg. C

  • Relative Humidity

    Operating / Storage: 20 to 95%

  • Dimensions (Dia. x H)

    3.80 x 4.65" / 9.65 x 11.81cm

  • Weight

    1.99lbs / 0.90kg

  • UPC Code

    030519013956

About Speco Technologies HT6040K

• 2.8-12mm auto iris varifocal lens
• 1/3" 1.3MP Sony Sensor
• 1000 TV lines highest resolution in analog
• True WDR functionality
• 12V & 24VAC dual voltage operation
• 3-axis wall and ceiling mount
• Vandal / tamper resistant operation
• IP67 compliant
• 5 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies HT6040K 1000 TVL Day & Night Indoor/Outdoor Analog IR Turret Camera with 2.8-12mm Lens
  • Video Test Connector
  • Power Jack
  • 2x Wrenches
  • Set Screw
  • 3x Tapping Screws 4x25
  • Speco Technologies 5 Year Limited Warranty
