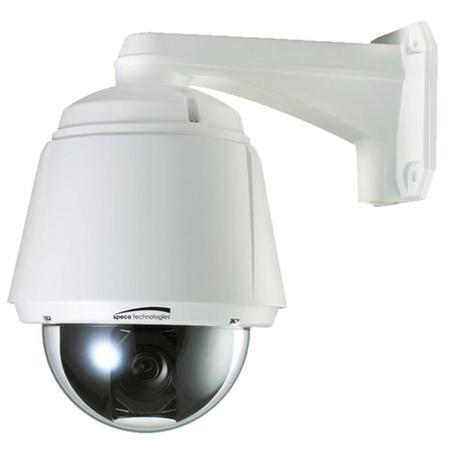

Speco Technologies HTSD28XH 960H PTZ Speed Dome Camera, 28x Optical Zoom, White
See all Speco Technologies items

Speco Technologies HTSD28XH 960H Indoor/Outdoor True Day & Night Analog PTZ Speed Dome Camera with True WDR, 700 TVL, 28x Optical Zoom, White

SKU: STHTSD28XH

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies HTSD28XH Specifications

  • Image Sensor

    1/4" Sony Super HAD II (Double Scan) CCD

  • Resolution

    700 TV lines

  • Minimum Illumination

    Color: 0.5 lux, BW: 0.2 lux

  • S/N Ratio

    50dB

  • Effective Pixels

    976 (H) x 494 (V)

  • Total Pixels

    1020 (H) x 508 (V)

  • Zoom

    28x optical zoom
    32x digital zoom

  • Focal Length

    F1.6-4.5, 3.5-98mm

  • Angle of View

    (H) 55.5 deg. (wide) - 1.59 deg. (tele)
    (V) 42.5 deg. (wide) - 1.19 deg. (tele)

  • White Balance

    Automatic, Manual (red, blue gain adjustable)

  • TV System

    NTSC

  • Day/Night

    Auto / Day / Night (ICR)

  • Focus

    Auto / Manual / Semi-Auto

  • Exposure

    Auto / Iris / Shutter / Manual

  • Light Compensation

    WDR / BLC / HLC / Off

  • DNR

    Adjustable

  • Privacy Zone

    8 masks, spherical coordinate

  • Image Stabilization

    On / Off

  • Pan Range

    360 deg. endless

  • Tilt Range

    90 deg.

  • Speed

    Preset: 500 deg./sec
    Jog: 0.05 - 360 deg./sec
    Swing: 1 - 180 deg./sec

  • Presets

    209 positions

  • Patterns

    8 patterns (880 commands)

  • Swings

    10 swings

  • Groups

    8 groups (max 40 actions of a combination of preset, pattern, and swing)

  • Schedule

    8 schedules

  • RTC

    RTC battery backup time 2 weeks

  • Communication

    RS-485

  • Protocol

    Pelco-D, Pelco-P

  • Sensor Input

    3 inputs, photo-coupler type, DC 5V-12V

  • Alarm Outputs

    1 output, relay output, max load DC 24V 1A / AC 125V 0.5A

  • Material: Dome & Mounts

    Polycarbonate

  • Material: Internal

    Polycarbonate, ABS

  • Material: External

    Aluminum

  • Fan

    Always on

  • Heater

    Operational at internal temperature of 50 deg.F and above

  • Operating Temperature

    -22 to 122 deg. F / -30 to 50 deg. C

  • Power Supply

    12VDC, 24VAC (power supply not included)

  • Power Consumption

    12VDC, 1.8A / 24VAC, 1.8A

  • Dome Size (Dia. x H)

    7.9 x 8.67"

  • Dimensions (W x H x L)

    With wall mount: 4.7 x 5.5 x 11.8" / 119.38 x 139.70 x 299.72mm

  • Weight

    8lbs / 3.63kg

  • UPC Code

    030519014700

About Speco Technologies HTSD28XH

• 3.5-98mm lens, 28x optical zoom with 32x digital zoom
• 700 TV lines of resolution
• Wide dynamic range (WDR) operation
• True Day/Night operation (IR cut filter)
• 360deg. endless rotation
• Dual voltage support
• Built-in fan and heater (heater operational starting at 50deg. F)
• IP66 compliant
• Wall mount included
• 1 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies HTSD28XH 960H Indoor/Outdoor True Day & Night Analog PTZ Speed Dome Camera
  • Surface Mount Bracket
  • Wall Mount Bracket
  • TORX Machine Screws (M4xL18)
  • Hex Lag Screws (#14x50)
  • Main Cable
  • I/O Cable
  • Wrench
  • Owner's Manual
  • Speco Technologies 1 Year Limited Warranty
