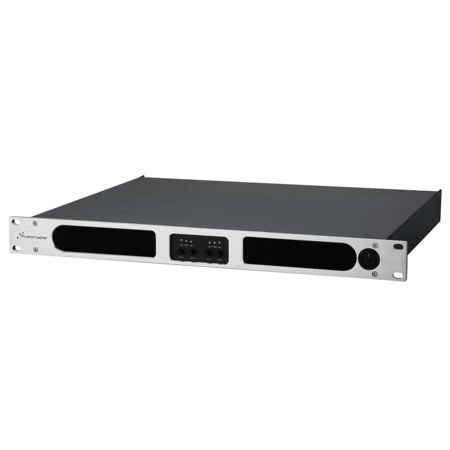

Studiomaster HX2-900 2x 765W at 4 Ohms High Performance 1U Digital Power Amplifier

SKU: STHX2900 MFR: HX2-900
Earn VIP Reward Points

Key Features

  • Experience powerful, clear audio with this Studiomaster power amplifier, perfect for live sound.
  • Achieve pristine sound quality with a low THD, ensuring your audio is clean and professional.
  • This high-performance amplifier delivers a signal-to-noise ratio of 105dB for exceptional clarity.
  • With input sensitivity at 1kHz, this amplifier is optimized for a wide range of audio sources.
  • Benefit from reliable protection circuitry, safeguarding your power amplifier from damage.
  • Delivering up to 2x 765W at 4 Ohms, this power amplifier is ideal for demanding audio setups.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Studiomaster HX2 Specifications

  • Slope (1kHz, Bypass LPF)

    50V/us

  • Input Sensitivity 1kHz

    1Vrms

  • THD+N

    0.02% (10% rated output power)

  • IMD-SMPTE

    0.05% (10% rated output power)

  • DIM30

    0.05% (10% rated output power)

  • Crosstalk rejection

    >80Db (less than rated power, 20Hz - 1kHz)

  • Frequency Response

    0.2dB (10% rated output power, 8ohm, 20Hz - 20kHz)

  • Input Impedance

    20k ohm (bal), 10k ohm (unbal)

  • Damping Factor

    300 (8ohm, 20Hz - 100Hz)

  • S/N ratio

    105dB (A weighted, 20Hz-20kHz)

  • Power supply

    90-260VAC, 50/60Hz

  • Protection

    Overoad/thermal/DC output protection

  • Wattage

    8ohms Stereo: 2x450 watts
    4ohms Stereo: 2x765 watts
    2ohms Stereo: 2x1300 watts

    16ohm Bridged: 900 watts
    8ohm Bridged: 1530 watts
    4ohm Bridged: 2600 watts

  • Dimensions (W x H x D)

    19 x 1.7 x 12.7" (483 x 44 x 323mm)

  • Weight

    11 lbs (5kg)

  • UPC Code

    5060255344163

About Studiomaster HX2

Make your audio experience exceptional with the HX2-900 2x 765W at 4 Ohms High Performance 1U Digital Power Amplifier, a part of our esteemed HX series. This state-of-the-art amplifier is designed with a compact and ultra-lightweight frame, yet it doesn't compromise on delivering high-performance sound.

This professional-grade digital power amplifier features comprehensive protection and status indicators, ensuring a safe and efficient operation. It comes in both 2 and 4 channel variants, providing a versatile range of power from 2 x 225 watts at 4 ohms up to an impressive 4 x 765 watts. This powerful output makes it an ideal choice for large venues, professional musicians, and DJs seeking superior sound quality.

The HX2-900 amplifier stands out with its 1U size, making it a compact solution without sacrificing performance. It's equipped with Power Factor Correction (PFC) and a universal power supply that operates seamlessly between 90-250VAC. Moreover, this high-performance amplifier is designed to perform optimally even at loads down to 2 ohms.

Experience the reliability and quality of Studiomaster, a trusted name in the professional audio industry, with the HX2-900 2x 765W at 4 Ohms High Performance 1U Digital Power Amplifier. It's more than just an amplifier; it's a commitment to superior sound.

Studiomaster HX2 Features

  • Energy saving design with high efficiency
  • Power factor correction (PFC)
  • Universal 90-250V power supply
  • 2-channel model
  • Reliable efficient operation down to 2ohm loads
  • Variable speed fan cooling
  • Status and protection indicators
  • Stereo/parallel/bridge modes
  • Multiple gain modes
  • Output limiter
  • Balanced XLR inputs
  • Professional speaker connectors
  • Thermal, overload, DC protection
  • Thermal, fault and limiter indicators

Product Documents

User Manual

Key Features

  • Experience powerful, clear audio with this Studiomaster power amplifier, perfect for live sound.
  • Achieve pristine sound quality with a low THD, ensuring your audio is clean and professional.
  • This high-performance amplifier delivers a signal-to-noise ratio of 105dB for exceptional clarity.
  • With input sensitivity at 1kHz, this amplifier is optimized for a wide range of audio sources.
  • Benefit from reliable protection circuitry, safeguarding your power amplifier from damage.
  • Delivering up to 2x 765W at 4 Ohms, this power amplifier is ideal for demanding audio setups.

What's in the box:

  • HX2-900 2x 765W at 4 Ohms High Performance 1U Digital Power Amplifier
  • Studiomaster 1 Year Limited Warranty
