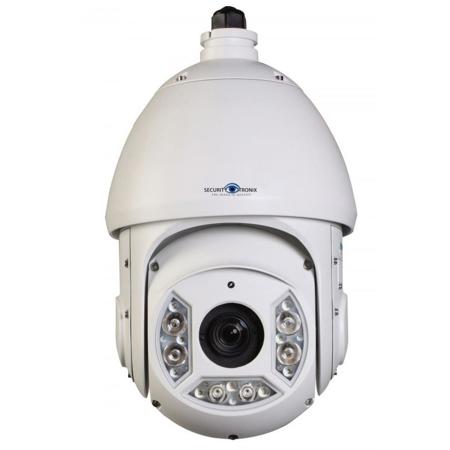

Securitytronix ST-IP-IRPTZ 2MP Day/Night Outdoor IP PTZ Camera
See all Securitytronix items

Securitytronix ST-IP-IRPTZ 2MP Day/Night Outdoor IP PTZ Camera, 30x Optical Zoom, 1920x1080, DWDR, 30fps, 328' IR Distance, H.264, MJPEG

SKU: STIPIRPTZ2MP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix ST-IP-IRPTZ Specifications

  • Image Sensor

    1/3" Exmor CMOS

  • Effective Pixels

    Horizontal x Vertical: 1920 X 1080

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/1 to 1/30000s

  • Min. Illumination

    Color: 0.05Lux at F1.6
    B/W: 0.005Lux at F1.6

  • S/N Ratio

    > 50dB

  • Video Output

    BNC (1.0Vp-p/75Ohms), PAL/NTSC

  • Day/Night

    Auto (ICR)/ Color/ B/W

  • Back Light Compensation

    BLC/ H LC/ DWDR (Digital Wide Dynamic Range)

  • White Balance

    Auto, ATW, Indoor, Outdoor, Manual

  • Gain Control

    Auto / Manual

  • Noise Reduction

    Ultra DNR (2D /3D)

  • Privacy Masking

    Up to 24 areas

  • Digital Zoom

    16X

  • Lens: Focal Length

    4.3 to 129mm (30X Optical zoom )

  • Lens: Max Aperture

    F1.6 to F5.0

  • Lens: Focus Control

    Auto / Manual

  • Lens: Angle of View

    H: 65.1 to 2.34 deg.

  • Lens: Close Focus Distance

    100 to 1000mm

  • PTZ: Pan/Tilt Range

    Pan: 0 to 360 deg. Endless
    Tilt: -15 to 90 deg.
    Auto flip at 180 deg.

  • PTZ: Manual Control Speed

    Pan: 0.1 to 160 deg. /s
    Tilt: 0.1 to 200 deg. /s

  • PTZ: Preset Speed

    Pan: 240 deg. /s
    Tilt: 200 deg. /s

  • PTZ: Preset

    80(D H -SD ), 255(Pelco -P/D )

  • PTZ: Mode

    5 Pattern, 8 Tour, Auto Pan, Auto Scan

  • PTZ: Speed Setup

    Human oriented focal length/ speed adaptation

  • PTZ: Power up Action

    Auto restore to previous PTZ and Lens after power failure

  • PTZ: Idle Motion

    Activate Preset/Pan/Scan/Tour/Pattern

  • PTZ: Protocol

    DH -SD, Pelco -P/D (Auto recognition)

  • PTZ: IR Distance

    328' / 99.97m (2 near IR LED + 4 far IR LED )

  • Video: Compression

    H .264 / MJPEG

  • Video: Frame Rate

    Main stream: 1080P / 720P (1 to 25/30fps)
    Sub stream: D1/CIF(1 to 25/30fps)

  • Video: Bit Rate

    H.264: 56K to 8192Kbps, MJPEG: 56K to 20480Kbps

  • Audio: Compression

    G .711a / G .711u)32kbps)/PCM (128xbps)

  • Audio: Interface

    1/1 channel in/out

  • Network: Ethernet

    RJ-45 (10/100Base-T)

  • Network: Protocol

    IPv4/IPv6, HTTP, HTTPS, P2P, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPO E, DDNS, FTP, IP filter, QoS, Bonjour, 802.1x

  • Network: Compatibility

    ONVIF/ PSIA / CGI/ EVS (Eye View Smart)

  • Network: Max User Access

    20 users

  • Network: Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Interface: RS485

    1

  • Interface: Alarm

    2/1 channel in/out

  • Ingress Protection

    IP66

  • Power Supply

    AC 24V /3A (+/-10% )

  • Power Consumption

    10.5W, 26W (IRon, Heater on)

  • Working Environment

    -40 to 140 deg. F / -40 to 60 deg. C
    Less than 90% RH

  • Dimensions

    8 x 14.1" / 203.2 x 358.14mm

  • Weight

    17.1lbs / 7.76kg

About Securitytronix ST-IP-IRPTZ

The Securitytronix ST-IP-IRPTZ series cameras are professional series 1 and 2 Megapixel Pan-Tilt-Zoom IP cameras featuring a 1/3" Sony Exmor CMOS imager and a 20x or 30x optical zoom lens. This camera is perfect for day and night applications, the IR LEDs provide illumination of objects up to 328' away. Powering is achieved through an included 24VAC power supply. The ST-IP-IRPTZ series are ONVIF (Open Network Video Interface Forum) compliant. These cameras feature an IP66 outdoor housing, H.264 & MJPEG dual-stream encoding, Digital Wide Dynamic Range, Day/night ICR, ultra Digital Noise Reduction, auto iris and auto focus.

Securitytronix ST-IP-IRPTZ Features

  • 30x Optical Zoom
  • H.264 & MJPEG dual-stream encoding
  • Max. 25/30fps at 1080P(1920x1080) (ST-IP-IRPTZ-2)
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS), SPSS & DMSS
  • Max 240deg./s pan speed, 360deg. endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IP66 Rated housing
  • IR Distance up to 328'
  • Compatible with EVS (Eye View Smart) PC based NVR software

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 30x Optical Zoom
  • Built-in 2/1 alarm in/out
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • H.264 & MJPEG dual-stream encoding
  • Max 240deg./s pan speed, 360deg. endless pan rotation
  • Max. 25/30fps at 1080P(1920x1080) (ST-IP-IRPTZ-2)

What's in the box:

  • Securitytronix ST-IP-IRPTZ 2MP Day/Night Outdoor IP PTZ Camera
  • 24VAC Power Supply
  • Mounting Hardware
  • Software CD
  • Operation Manual
  • Securitytronix 1 Year Warranty
