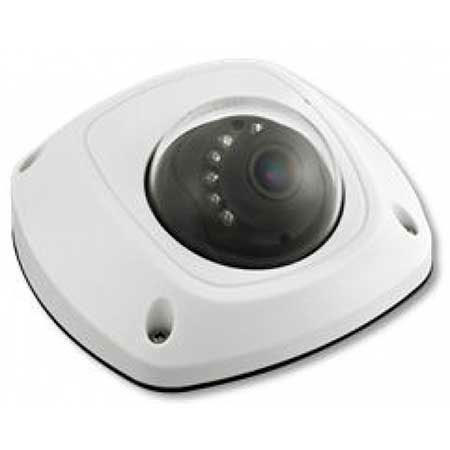

Securitytronix IP-NC302-WDA Outdoor Day & Night 2MP IP IR Wedge Dome Camera
See all Securitytronix items

Securitytronix IP-NC302-WDA Outdoor Day & Night 2MP IP IR Wedge Dome Camera, 2.8mm f/2.0 Fixed Lens, 25/30fps, H.264, MJPEG, H.264+, PoE, Vandal Proof

SKU: STIPNC302WDA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix IP-NC302-WDA Specifications

  • Image Sensor

    1/2.8" Progressive Scan CMOS

  • Min. Illumination

    0.01Lux at (F1.2, AGC ON) , 0 Lux with IR

  • Shutter Speed

    1/3s to 1/100, 000s

  • Lens

    2.8mm at F2.0

  • Lens Mount

    M12

  • Day & Night

    IR cut filter with auto switch

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    120dB

  • Angle of Adjustment

    Pan: -30 deg. to 30 deg., Tilt: 0 deg. to 75 deg., Rotation: 0 deg. to 360 deg.

  • Video Compression

    H.264 / MJPEG / H.264+

  • Video Bit Rate

    32 Kbps - 16 Mbps

  • Audio Compression

    G.711/G.722/G.726/MP2L2

  • Audio Bit Rate

    64Kbps(G.711)/16Kbps(G.722)/16Kbps(G.726)/32-128Kbps(MP2L2)

  • Max. Resolution

    1920 x 1080

  • Frame Rate

    50Hz: 25fps(1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
    60Hz: 30fps(1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)

  • Image Settings

    Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

  • Backlight compensation

    Yes, zone configurable

  • ROI

    Supported

  • Network Storage

    NAS (Supports NFS, SMB/CIFS), ANR

  • Alarm Trigger

    Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

  • Protocols

    TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • General Functionalities

    One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

  • System Compatibility

    ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

  • Communication Interface

    1x RJ45 10M/100M Ethernet port

  • On-Board Storage

    Built-in Micro SD/SDHC/SDXC card slot, up to 128GB

  • Alarm interface

    1x alarm I/O

  • Audio interface

    Built-in microphone and 1x audio output

  • Reset

    Yes

  • Operating Temperature

    -30 to 60 deg. C (-22 to 140 deg. F)

  • Humidity

    95% or less (non-condensing)

  • Power Supply

    12 VDC +/- 10% , PoE (802.3af) (not included)

  • Power Consumption

    5W Max

  • Ingress Protection level

    IP66

  • IR Range

    Up to 98' (29.87m)

  • Impact Protection

    IEC60068-275Eh, 20J; EN50102, up to IK08

  • Dimensions

    99.3 x 96.7 x 52.8mm (3.91 x 3.81 x 2.08")

  • Weight

    600g (21.16 oz)

About Securitytronix IP-NC302-WDA

• 2MP High Resolution
• Full HD 1080p video
• 2.8mm Fixed lens
• 120 dB Wide Dynamic Range
• 3D Digital Noise Reduction
• 3 Axis adjustment
• IR Distance up to 98 Feet
• IP66 Weather rating
• IK08 Vandal rating
• PoE Compatible

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix IP-NC302-WDA 2MP IP IR Wedge Dome Camera
  • Securitytronix 2 Year Limited Warranty
