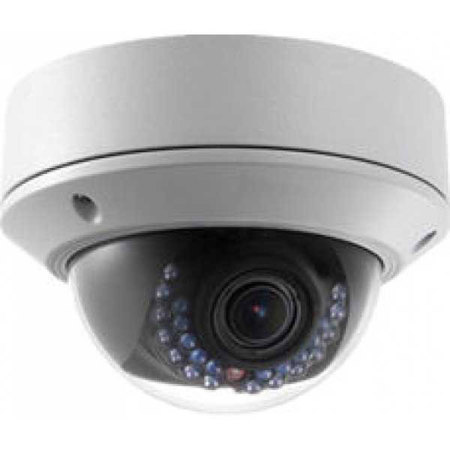

Securitytronix IP-NC304-VDZ Outdoor Day & Night 4MP IP Dome Camera with IR
See all Securitytronix items

Securitytronix IP-NC304-VDZ Outdoor Day & Night 4MP IP Dome Camera with IR, 2.8-12mm f/1.4 Motorized Varifocal Lens, 20fps, H.264, MJPEG, H.264+, PoE, Vandal Proof

SKU: STIPNC304VDZ

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix IP-NC304-VDZ Specifications

  • Image Sensor

    1/3" Progressive Scan CMOS

  • Min. Illumination

    0.01Lux at (F1.2, AGC ON) , 0 Lux with IR
    0.014 Lux at (F1.4, AGC ON), 0 Lux with IR

  • Shutter Speed

    1/3s to 1/100, 000s

  • Lens

    2.8 - 12mm at F1.4, motorized

  • Day & Night

    IR cut filter with auto switch

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    120dB

  • Video Compression

    H.264 / MJPEG / H.264+

  • Video Bit Rate

    32 Kbps - 16 Mbps

  • Max. Resolution

    2688x1520

  • Frame Rate

    50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
    60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)

  • Image Settings

    Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

  • Backlight compensation

    Yes, zone optional

  • ROI

    Supported

  • Day / Night Switch

    Auto/Schedule/Triggered by Alarm In

  • Network Storage

    NAS (Support NFS, SMB/CIFS), ANR

  • Alarm Trigger

    Motion Detection, Tampering alarm, Network disconnect , IP address conflict, Storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • General Functionalities

    One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

  • System Compatibility

    ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

  • Communication Interface

    1x RJ45 10M/100M Ethernet Interface

  • On-Board Storage

    Built in micro SD/SDHC/SDXC slot up to 64GB

  • Operating Temperature

    -30 to 60 deg. C (-22 to 140 deg. F)

  • Humidity

    95% or less (non-condensing)

  • Power Supply

    12 VDC +/- 10% , PoE (802.3af) (not included)

  • Power Consumption

    5.5W Max

  • Ingress Protection Rating

    IP66

  • Impact Protection

    IK10

  • IR Range

    Up to 98' (29.87m)

  • Dimensions

    140 x 99.9mm (5.51 x 3.93")

  • Weight

    2.20 lbs (1.00kg)

About Securitytronix IP-NC304-VDZ

• Up to 4 megapixel high resolution
• Full HD1080p video
• Dual video streams
• Motorized lens 2.8 - 12mm
• 120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• Backlight Compensation
• DC12V & PoE
• Support H.264+
• Up to 98' IR range
• 3-axis adjustment
• IP66 weather-proof protection
• IK10 Vandal rating
