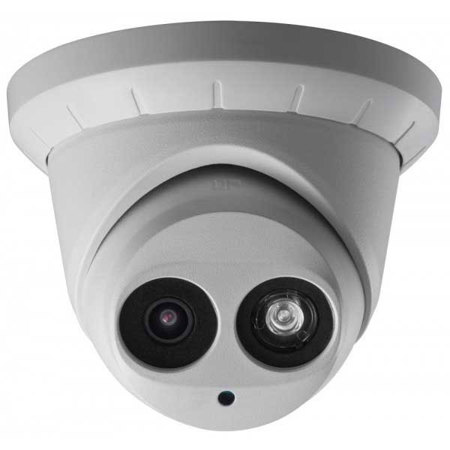

Securitytronix IP-NC304-XD Outdoor Day & Night 4MP IP Turret-Dome Camera with IR
See all Securitytronix items

Securitytronix IP-NC304-XD Outdoor Day & Night 4MP IP Turret-Dome Camera with IR, 2.8mm f/2.0 Fixed Lens, 20fps, H.264, MJPEG, H.264+, PoE

SKU: STIPNC304XD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Securitytronix IP-NC304-XD Specifications

  • Image Sensor

    1/2.8" Progressive Scan CMOS

  • Min. Illumination

    0.01Lux at (F1.2, AGC ON) , 0 Lux with IR

  • Shutter Speed

    1/3s to 1/100, 000s

  • Lens

    2.8mm at F2.0

  • Lens Mount

    M12

  • Day & Night

    IR cut filter with auto switch

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    120dB

  • Pan & Tilt Rotation

    Pan: 0 deg. - 360 deg., Tilt: 0 deg. - 75 deg., Rotation: 0 deg. - 360 deg.

  • Video Compression

    H.264 / MJPEG / H.264+

  • Video Bit Rate

    32 Kbps - 16 Mbps

  • Dual Stream

    Yes

  • Max. Resolution

    2688x1520

  • Frame Rate

    50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
    60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)

  • Image Settings

    Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

  • Backlight compensation

    Yes, zone optional

  • ROI

    Supported

  • Network Storage

    NAS (Support NFS, SMB/CIFS), ANR

  • Alarm Trigger

    Motion Detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • General Functionalities

    One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

  • System Compatibility

    ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

  • Communication Interface

    1x RJ45 10M/100M Ethernet Interface

  • On-Board Storage

    Built in micro SD/SDHC/SDXC slot up to 64GB

  • Reset

    Yes

  • Operating Temperature

    -30 to 60 deg. C (-22 to 140 deg. F)

  • Humidity

    95% or less (non-condensing)

  • Power Supply

    12 VDC +/- 10% , PoE (802.3af) (not included)

  • Power Consumption

    5.5W (Max. 7.5W with ICR on)

  • Ingress Protection Rating

    IP66

  • IR Range

    Up to 98' (29.87m)

  • Dimensions

    127 x 97.5mm (5.00 x 3.84")

  • Weight

    1.5 lbs (0.68kg)

About Securitytronix IP-NC304-XD

• Up to 4 megapixel high resolution
• Full HD1080p video
• Dual video streams
• 2.8mm fixed lens
• 120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• Backlight Compensation
• DC12V & PoE
• Support H.264+
• High performance EXIR LED
• Up to 98' IR range
• 3-axis adjustment
• IP66 weather-proof protection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix IP-NC304-XD Outdoor Day & Night 4MP IP Turret-Dome Camera with IR
  • Securitytronix 2 Year Limited Warranty
