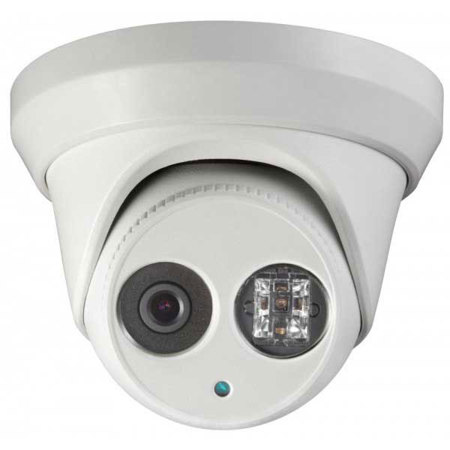

Securitytronix IP-NC312-XD Outdoor Day & Night 2MP IP Turret-Dome Camera with IR
See all Securitytronix items

Securitytronix IP-NC312-XD Outdoor Day & Night 2MP IP Turret-Dome Camera with IR, 4mm f/2.0 Fixed Lens, 25/30fps, H.264, MJPEG, PoE

SKU: STIPNC312XD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix IP-NC312-XD Specifications

  • Image Sensor

    1/2.8" Progressive Scan CMOS

  • Min. Illumination

    0.01Lux at (F1.2, AGC ON) , 0 Lux with IR
    0.028Lux at (F2.0, AGC ON) , 0 Lux with IR

  • Shutter Speed

    1/3s to 1/100, 000s

  • Lens

    4mm at F2.0, Angle of view: 85 deg.

  • Lens Mount

    M12

  • Day & Night

    IR cut filter with auto switch

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    Digital WDR

  • Angle Adjustment

    Pan:0 deg. - 360 deg., Tilt: 0 deg. - 75 deg., Rotation: 0 deg. - 360 deg.

  • Video Compression

    H.264 / MJPEG

  • H.264 Type

    BaseLine Profile/Main Profile

  • Video Bit Rate

    32 Kbps - 8 Mbps

  • Dual Stream

    Yes

  • Max. Image Resolution

    1920 x 1080

  • Frame Rate

    50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
    60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)

  • Image Settings

    Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

  • Backlight compensation

    Yes, zone optional

  • ROI

    Supported

  • Network Storage

    NAS (Support NFS, SMB/CIFS)

  • Alarm Trigger

    Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • Standard

    ONVIF, PSIA, CGI, ISAPI

  • General Functionalities

    Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

  • Communication Interface

    1x RJ45 10M/100M Ethernet Interface

  • Operating Temperature

    -30 to 60 deg. C (-22 to 140 deg. F)

  • Humidity

    95% or less (non-condensing)

  • Power Supply

    12 V DC +/- 10%, PoE (802.3af) Power supply not included

  • Power Consumption

    Max. 5.5 W

  • Ingress Protection Rating

    IP66

  • IR Range

    Up to 98' (29.87m)

  • Dimensions

    5 x 3.85" (12.70 x 9.78cm)

  • Weight

    1.25 lbs (0.57kg)

About Securitytronix IP-NC312-XD

• 2 Megapixel (1920 x 1080) resolution
• Progressive scan CMOS sensor
• Supports dual stream and sub-stream for mobile surveillance
• EXIR Infrared LED, Up to 98' IR range
• IR cut filter with auto switch
• PoE (Power over Ethernet)
• IP66 Weather rating
• Electronic shutter for different surveillance environments
• Supports intrusion detection and line crossing detection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix IP-NC312-XD Outdoor Day & Night 2MP IP Turret-Dome Camera with IR
  • Securitytronix 2 Year Limited Warranty
