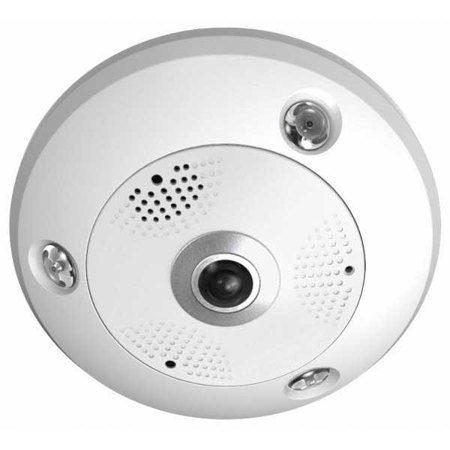

Securitytronix IP-NCA06-FE Outdoor 6MP IP Fisheye Network Camera with IR
See all Securitytronix items

Securitytronix IP-NCA06-FE Outdoor Day & Night 6MP IP Fisheye Network Camera with IR, 1.27mm f/2.8 Lens, 25fps, H.264, MJPEG, PoE, Vandal Proof

SKU: STIPNCA06FE

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix IP-NCA06-FE Specifications

  • Image Sensor

    1/1.8" progressive scan CMOS

  • Min. Illumination

    0.05lux (F1.2, AGC ON)
    0.3lux (F2.8, AGC ON)
    0 lux with IR

  • Shutter Speed

    1/25 (1/30)s - 1/100, 000s

  • Lens

    1.27mm, F2.8; Angle of view: 360 deg.

  • Lens Mount

    M12

  • Day & Night

    ICR

  • Video Compression

    H.264/MJPEG

  • H.264 Type

    Baseline Profile / Main Profile / High Profile

  • Video Bit Rate

    32 Kbps - 16 Mbps

  • Audio Compression

    G.711/G.726/MP2L2

  • Audio Bit Rate

    64Kbps (G.711) / 16Kbps (G.726) / 64Kbps (MP2l2)

  • Max. Resolution

    3072x2048

  • Frame Rate

    High-frame Mode: support
    50Hz: 1x fisheye (3072x2048, 25fps) or 2048x2048, 25fps) or 4x PTZ at (1024x768, 30fps)
    60Hz: 1x fisheye (3072x2048, 25fps) or 2048x2048, 30fps) or 4x PTZ at (1024x768, 30fps)

    Multi-channel Mode: support
    50Hz: 1x fisheye (1280x1280, 12.5fps) and 1x panoramic (2048x1536, 12.5fps) and 3x PTZ (1024x768, 12.5fps)
    60Hz: 1x fisheye (1280x1280, 15fps) and 1x panoramic (2048x1536, 15fps) and 3x PTZ (1024x768, 15fps)

  • Number of Streams

    High Frame Rate Mode: 1 or 4
    Multi-Channel: up to 5 (No sub-streams)

  • Digital Noise Reduction

    3D DNR

  • Wide Dynamic Range

    Digital WDR

  • Image Settings

    Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance

  • Hi-Light Compensation

    Supported

  • Day/night Switch

    Auto / Manual / Scheduled / Alarm Trigger

  • Network Storage

    NAS, SAMB / CIFS

  • Alarm Trigger

    Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • Security

    User Authentication, Watermark, IP address filtering, Anonymous access

  • Standard

    ONVIF, PSIA, CGI, ISAPI

  • Operating Temperature

    -22 to 140 deg. F (-30 to 60 deg. C)

  • Humidity

    95% or less (non-condensing)

  • Power Supply

    12 VDC +/- 10% / PoE (802.3af)

  • Power Consumption

    Max. 12W

  • IR Range

    15m (49.21')

  • Impact Protection

    -E: IEC60068-2-75Eh, 20J; EN50102, up to IK10

  • Ingress Protection level

    -E: IP67

  • Dimensions

    6.59 x 1.79" (16.74 x 4.55cm)

  • Weight

    3.1 lbs (1.41kg)

About Securitytronix IP-NCA06-FE

• 1/1.8" progressive scan CMOS
• 6 megapixel image sensor
• Up to 3072 x 2048 real-time streaming
• 360deg. view angle
• Multiple viewing modes
• Multiple ePTZ streams with preset and patrol functions
• Ceiling, Wall or Table mount modes
• Up to 15m IR range
• Built-in microphone & speaker
• IP66(-E model)
• IK10 vandal proof(-E model)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix IP-NCA06-FE 6MP IP Fisheye Network Camera with IR
  • Securitytronix 2 Year Limited Warranty
