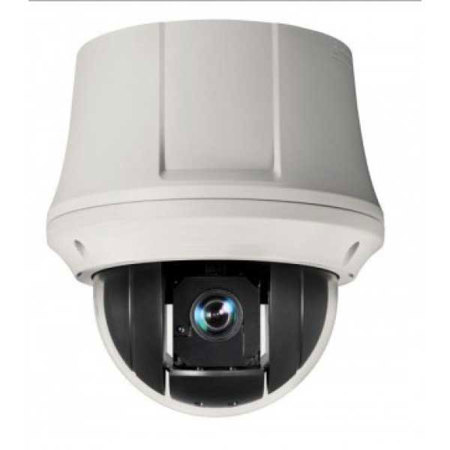

Securitytronix IP-NP112 Indoor Day & Night 2MP Mini PTZ Dome Camera, PoE
See all Securitytronix items

Securitytronix E Series IP-NP112 Indoor Day & Night 2MP Mini PTZ Network Dome Camera, 20x Optical Zoom, 1920x1080, 30fps, H.264, MJPEG, PoE

SKU: STIPNP112ID

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix IP-NP112 Specifications

  • Image Sensor

    1/2.8" Progressive Scan CMOS

  • Effective Pixel

    1920(H)x1080(V)

  • Min. Illumination

    Color : 0.05 lux (F1.6, 1/30 sec, 50 IRE, AGC On)
    B/W : 0.01 lux (F1.6, 1/30 sec, 50 IRE, AGC On)

  • White Balance

    Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

  • AGC

    Auto / Manual

  • S/N Ratio

    = 52dB

  • 3D DNR

    Support

  • BLC

    Support

  • DWDR

    Support

  • Defog

    Support

  • Shutter Time

    1/1-1/10,000s

  • Day & Night

    IR Cut Filter

  • Digital Zoom

    16X

  • Privacy Mask

    2 privacy masks programmable

  • Focus Mode

    Auto / Semiautomatic / Manual

  • Focal Length

    4.7-94mm, 20x

  • Zoom Speed

    Approx.3s(Optical Wide-Tele)

  • Angle of View

    58.3-3.2 degree (Wide-Tele)

  • Min. Working Distance

    10-1000mm(Wide-Tele)

  • Aperture Range

    F1.6-F3.5

  • Pan Range

    360 deg. endless

  • Pan Speed

    Pan Manual Speed: 0.1 deg. -160 deg./s, Pan Preset Speed: 160 deg./s

  • Tilt Range

    0 deg.-90 deg.(Auto Flip)

  • Tilt Speed

    Tilt Manual Speed: 0.1 deg.-120 deg./s, Tilt Preset Speed: 120 deg./s

  • Proportional Zoom

    Rotation speed can be adjusted automatically according to zoom multiples

  • Number of Preset

    300

  • Patrol

    8 patrols, up to 32 presets per patrol

  • Park action

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

  • Power-off Memory

    Support

  • PTZ Position Display

    On / Off

  • Preset Freezing

    Support

  • Scheduled Task

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Self-test action

  • Alarm Input

    1 (0-5v DC)

  • Alarm Output

    1 relay output, alarm response actions configurable

  • Alarm Trigger

    Intrusion detection, Line crossing detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

  • Alarm Actions

    Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage

  • Audio Input

    1 audio input (Mic/Line in), 2-2.4V[p-p]; output impedance: 1KOhms, +/-10%

  • Audio Output

    1 output, Line level, impedance: 600Ohms

  • Ethernet

    10Base-T / 100Base-TX, RJ45 connector

  • Max. Image Resolution

    1920x1080

  • Main Stream

    50Hz: 25fps (1920x1080), 25fps (1280x720)
    60Hz: 30fps (1920x1080), 30fps (1280x720)

  • Sub Stream

    50Hz:25fps(704x576), 25fps(352x288), 25fps(320x240)
    60Hz:30fps(704x480), 30fps(352x240), 30fps(320x240)

  • Image Compression

    H.264/ MJPEG

  • SVC

    Support

  • ROI encoding

    Support 2 areas with adjustable levels

  • Audio Compression

    G.711/G.722/G.726/MP2L2

  • Protocols

    IPv4/ IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnPSNMP, FTP, 802.1X, QoS, HTTPS

  • Number of Simultaneous Live View

    Up to 20

  • Dual Streams

    Support

  • Mini SD Memory Card

    Built-in Micro SD card slot, up to 128GB, edge recording

  • User/Host Level

    Up to 32 users,3 Levels: Administrator, Operator and User

  • Security Measures

    User authentication (ID and PW),Host authentication (MAC address) and IP address filtering

  • Interface for application programming

    Open-ended API, support Onvif, PSIA and CGI Support ezviz cloud P2P

  • Web Browser

    IE7+, Chrome18+, Firefox5.0+, Safari5.02+, support multi-language

  • Power

    24VAC/PoE(802.3af)
    Max. 18W

  • Working Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Working Humidity

    90% or less

  • Impact Protection

    IEC60068-275Eh, 5J; EN50102, up to IK08

  • Protection Level

    TVS 4,000V lightning protection, surge protection and voltage transient protection

  • Dimensions

    (Dia.): 6.50 x 7.07" (16.51 x 17.96cm)

  • Weight

    4.41 lbs (2.00kg) (approx.)

About Securitytronix IP-NP112

System function
• High performance CMOS, up to 1920x1080 at 30fps resolution
• +/-0.1deg. Preset Accuracy
• ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical Security Interoperability Alliance), to ensure greater interoperability between different platforms and compatibility
• 3D intelligent positioning function
• Power-off memory function: restore PTZ & Lens status after reboot
• IP66 standard (outdoor model)
• Impact Protection: IEC60068-2-75 test, Eh, 5J; EN50102, up to IK08
• Support PoE(802.3af)
• Support ezviz cloud P2P

Smart function
• Smart detection: intrusion detection, line crossing detection, audio exception detection
• Smart recording: edge recording, support smart search in smart NVR
• Smart image processing: defog
• Smart codec: low bit rate, ROI

PTZ function
• 360deg. endless pan range and 0deg.-90deg. tilt range
• 160deg./s Pan Preset Speed and 120deg./s Tilt Preset Speed
• 0.1deg.-160deg./s Manual Pan Speed and 0.1deg.-120deg./s Manual Tilt Speed
• 300 presets programmable; preset image freezing capability
• 8 patrols, up to 32 presets per patrol

Network function
• Built-in Web server
• Micro SD card local storage(SD card is optional)
• Support up to 8 NAS storage; Transmit the videos from SD card to the NAS after network resumed
• HTTPS encryption and IEEE 802.1x port-based network access control
• Supports dual-stream;H.264/MJPEG video compression; Basic and advanced video configuration; Real time video at 720P
• Multiple network protocols supported: IPv4/IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SM TP, NTP, UPnP, SNMP, FTP, 802.1X, QoS, HTTPS
• 1 audio input and 1 audio output
• 1 alarm input and 1 alarm output, alarm linkage support preset, patrol, pattern, recording, relay output, upload center, etc.

Application Scenarios
It can be widely applied to places requiring wide-area monitoring and high-definition display, such as rivers, forests, highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix E Series IP-NP112 Indoor Day & Night 2MP Mini PTZ Network Dome Camera
  • Indoor Flush Mount Kit
  • 24VAC Power Supply
  • Securitytronix 1 Year Limited Warranty
